Запчасти Case 590SM (08-35) - VALVE ASSY - LOADER CONTROL, THREE SPOOL (WITHOUT PILOT CONTROLS) (590SM) (08) - HYDRAULICS

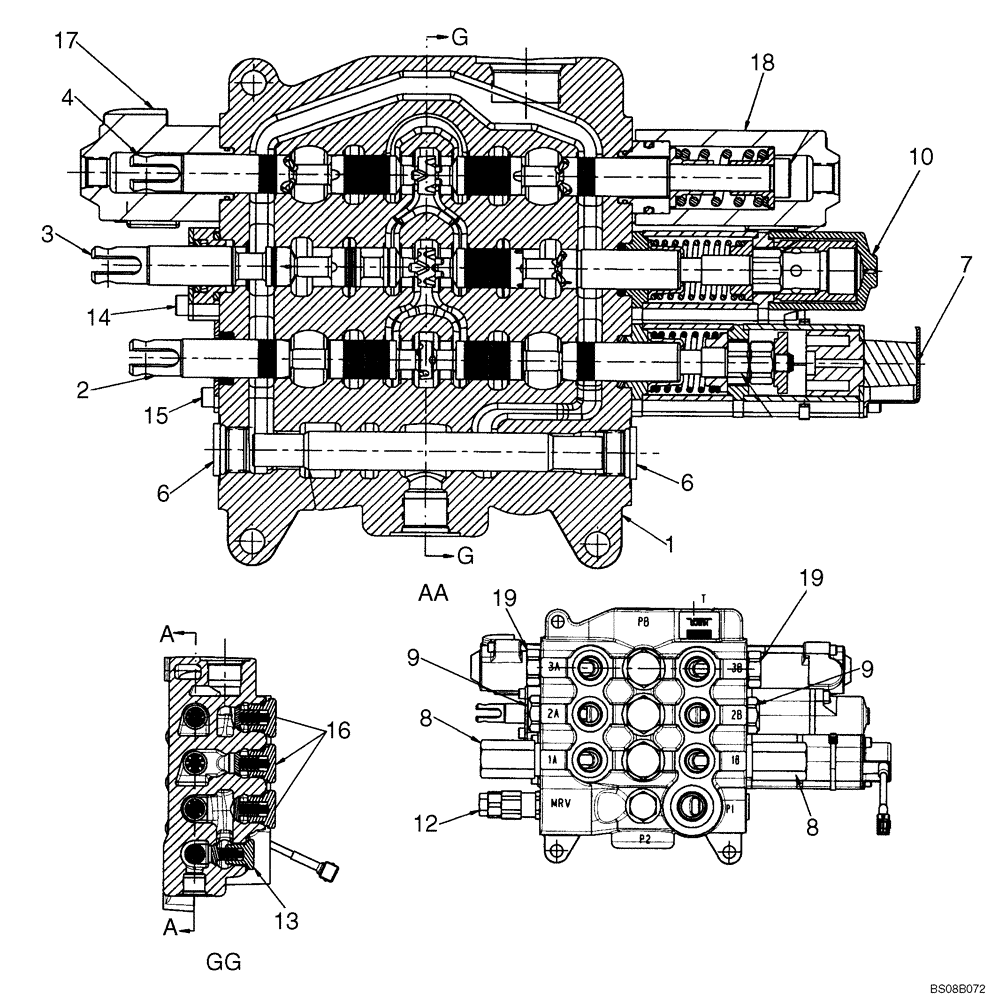

Схема запчастей Case 590SM - (08-35) - VALVE ASSY - LOADER CONTROL, THREE SPOOL (WITHOUT PILOT CONTROLS) (590SM) (08) - HYDRAULICS
3
6
17
16
9
4
15
19
7
9
13
14
12
18
8
6
8
1
10
2
19

Артикул

Название

Примечание

Количество

1

87593382

HYDRAULIC VALVE

590SM; Three Spool Loader Valve, Used On Models Without Pilot Controls; Incl. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

Housing

1шт.

2

NSS

NOT SOLD SEPARAT

Spool, Bucket

1шт.

3

NSS

NOT SOLD SEPARAT

Spool, Lift

1шт.

4

NSS

NOT SOLD SEPARAT

Spool, Clam

1шт.

5

NSS

NOT SOLD SEPARAT

Spool

1шт.

6

87426233

PLUG,7/8" Male

7/8 - 14 NF Plug, Serviceable Includes (1) 87455974 O-Ring

1шт.

7

84124604

KIT

(Return to Dig) Magnetic Detent Kit, Bucket; Included In 87351496 or 87351501 Valve, Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87515957 Magnet, (2) 87310278 Screw; Replaces 87515955

1шт.

8

87450978

VALVE PRESSURE RELIE

Assembly; Some Component Parts Not Serviced Separately; Includes Serviceable 87455549 Seal Kit

2шт.

9

81868381

CHECK VALVE,1-1/16" - 12

Load Check Valve, Anti-Void; Component Parts Not Serviced Separately; Includes Serviceable 87455580 Seal Kit

2шт.

10

87426227

DETENT

Manual Detent Assembly, Lift; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (2) 87310275 Screw, (4) 87310276 Ball Bearing

1шт.

12

87426717

VALVE PRESSURE RELIE

Main Relief Valve Assembly, Single Stage; 87434767 or 87351496Loader Valve, Component Parts Not Serviced Separately; Includes Serviceable 87455551 Seal Kit

1шт.

13

87426716

VALVE, CHECK

Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87455974 O-Ring, (1) 87309001 O-Ring, (1) 87446002 Poppet, (1) 87446003 Spring

1шт.

14

87440815

PLATE

Lift Spool Plate and Seal Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw

1шт.

15

87440814

KIT

Bucket and Clam Spool Plate and Seal Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw

2шт.

16

87426238

VALVE, CHECK

Component Parts Not Serviced Separately; Includes Serviceable 87455975 O-Ring

3шт.

17

87757931

END

End Cap; Clam Spool; Component Parts Not Available At Time Of Printing

1шт.

18

87757932

END

End Cap; Clam Spool; Component Parts Not Available At Time Of Printing

1шт.

19

83981068

STOP PLUG,Hex, 1/16 - 12 UN

Shut-Off Plug Assembly Includes Seal; Component Parts Not Serviced Separately

2шт.

Выбрано товаров: 19
