Запчасти Case 590SM (08-32) - CYLINDER ASSY - COUPLER, BACKHOE BUCKET (08) - HYDRAULICS

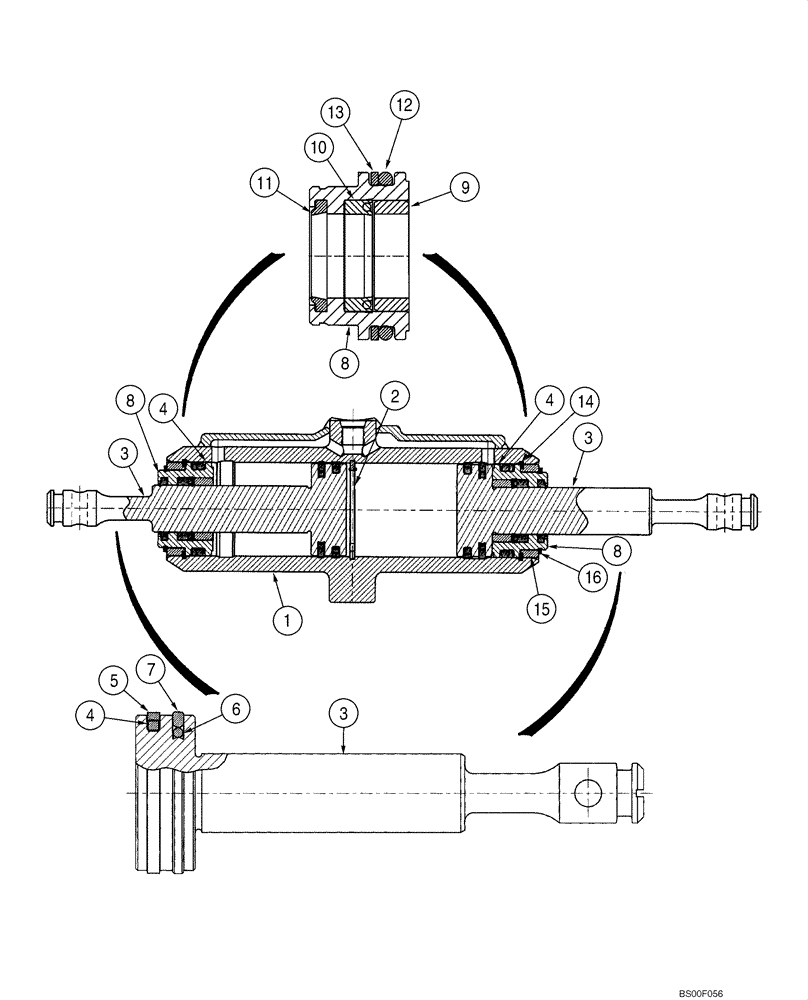

Схема запчастей Case 590SM - (08-32) - CYLINDER ASSY - COUPLER, BACKHOE BUCKET (08) - HYDRAULICS
15
10
7
3
16
13
9
2
8
6
3
3
1
14
8
5
4
4
8
11
4
12

Артикул

Название

Примечание

Количество

87615847

HYDRAULIC CYLINDER

Backhoe Bucket Coupler Cylinder; Incl. Ref 1 - 16 and 87619722 Seal Kit

1шт.

87615847C

CORE-HYD CYLINDER

Return Number, HYDRAULIC CYLINDER - for N.A. Only

1шт.

1

87615850

TUBE,38.1 mm ID

Includes 369263A1 Plug

1шт.

369263A1

PLUG,6mm OD x 4mm L

Expansion

4шт.

2

800-6138

SNAP RING,M38, Int

1шт.

NSS

NOT SOLD SEPARAT

Rod Assy; Incl. Ref 3 - 7

2шт.

3

399907A2

ROD,19.1mm Dia, 38.1mm Bore x 100.50mm L

Chrome

1шт.

4

353078A1

RING,27.35mm ID x 29.97mm OD x 2.59mm W

1шт.

5

353079A1

SEAL,37.24mm Id x 39.09mm OD x 3.07mm W

38,1 dia; Replaces 404203A1, Seal Used On Some Cylinders

1шт.

6

395609A1

O-RING,26.7mm ID x 2.38mm Width

1шт.

7

384844A1

RING,35.46mm ID x 39.2mm OD x 2.7mm W

Detent

1шт.

87615848

GLAND

Incl. Ref 8 - 13

2шт.

8

NSS

NOT SOLD SEPARAT

Gland, Cylinder

1шт.

9

NSS

NOT SOLD SEPARAT

Bushing

1шт.

10

D83187

SEAL,19.05mm ID x 25.4mm OD x 7.18mm W

Rod

1шт.

11

A44651

WIPER SEAL,18.49mm ID x 25.3mm OD x 3.63mm Thk

1шт.

12

238-6218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 6, 90 Duro

1шт.

13

87615853

BACK-UP RING,32mm ID x 38mm OD x 1.09mm Thk

1шт.

14

102-23150

SNAP RING,#150, 1.591", Int, Spiral

2шт.

15

87615852

SPACER

2шт.

16

102-12125

SNAP RING,#125, 1.188", Ext Spiral

Retaining Ring

2шт.

87619722

SEAL KIT

Incl. Ref 4 - 16; Also Includes (2) 390317A1 Rings; (1) 445364A1 Service Ring For Cylinder Tube End Coupler Outer Sleeve End

1шт.

Выбрано товаров: 22
