Запчасти Case 590SM (08-28) - VALVE, COUPLER (87435909) - LOADER TOOL OR BACKHOE (08) - HYDRAULICS

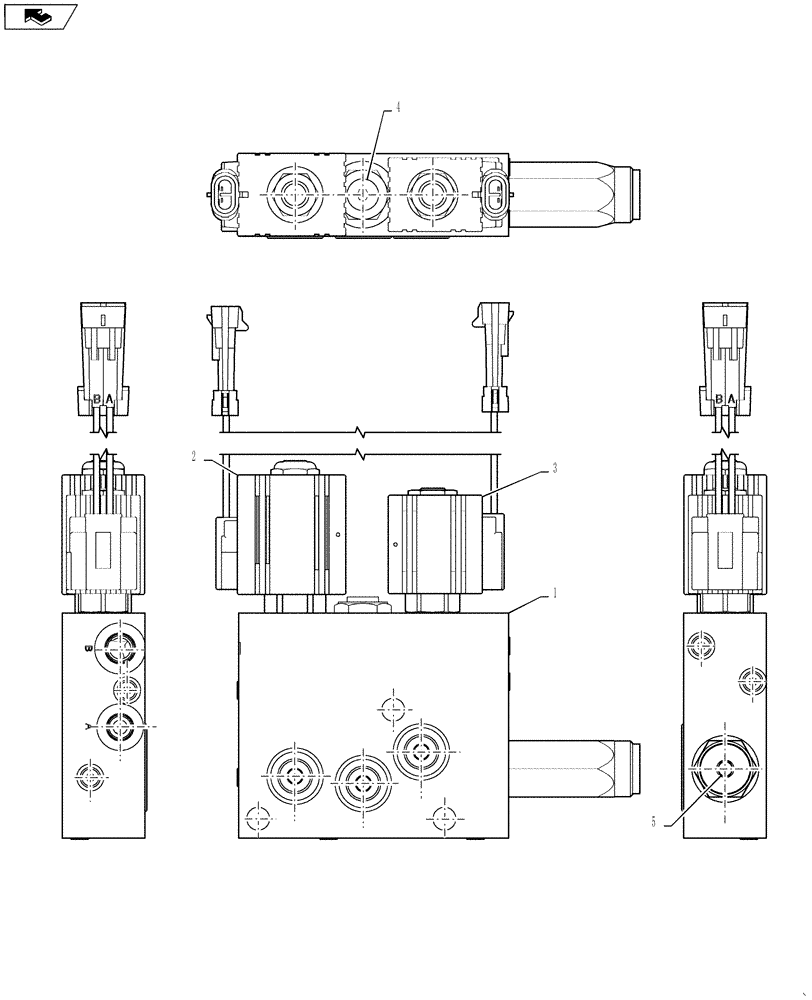

Схема запчастей Case 590SM - (08-28) - VALVE, COUPLER (87435909) - LOADER TOOL OR BACKHOE (08) - HYDRAULICS
2
5
3
home
1
4

Артикул

Название

Примечание

Количество

87435909

SOLENOID VALVE

Incl. Ref 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

Body

1шт.

2

87438021

SOLENOID VALVE

4-Way Cartridge With Coil; Includes 87438022, 87438023, 87438024

1шт.

87438022

HYDRAULIC VALVE

Valve, Cartridge

1шт.

87438023

COIL

Solenoid

1шт.

87438024

SEAL KIT

4-Way Solenoid

1шт.

3

87438025

SOLENOID VALVE

2-Way 2-Position Cartridge With Coil; Includes 87438026, 87438027, 87438028

1шт.

87438026

HYDRAULIC VALVE

Valve, Cartridge

1шт.

87438027

COIL

Solenoid

1шт.

87438028

SEAL KIT

2-Way Solenoid

1шт.

4

87438029

VALVE, CHECK

Includes 87438028 Seal Kit

1шт.

87438028

SEAL KIT

2-Way Solenoid

1шт.

5

87438031

VALVE PRESSURE RELIE

Includes 87438032 Seal Kit

1шт.

87438032

SEAL KIT

Relief Valve

1шт.

Выбрано товаров: 14
