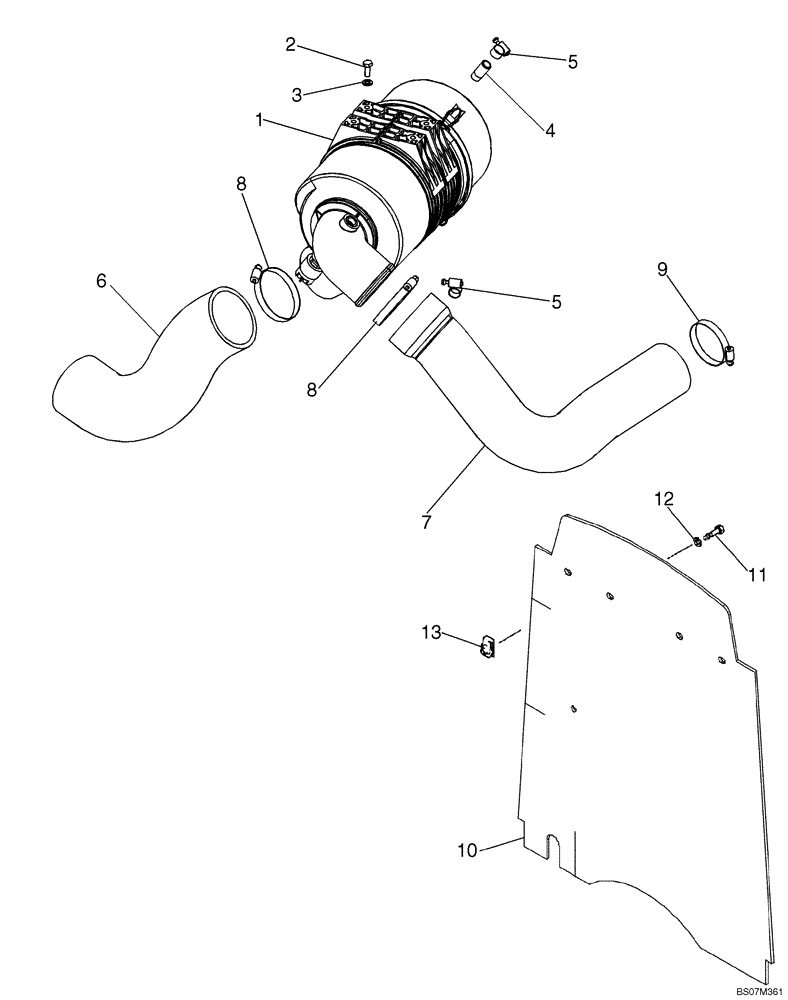

Запчасти Case 590SM (02-04) - AIR CLEANER - AIR INTAKE PARTS (02) - ENGINE

1

87610338

AIR CLEANER

See Figure 02-05

1шт.

2

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.

3

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

4

L17985

FITTING,3/8" - 18 NPT

1шт.

5

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

6

87545561

INTAKE AIR HOSE,95.00 mm ID x 239.20 mm, SAE J200

Inlet

1шт.

7

87666451

INTAKE AIR HOSE,76.00 mm ID, 88.90 mm ID x 260.00 mm, SAE J20

To Turbocharger

1шт.

8

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

2шт.

9

214-1456

HOSE CLAMP,#56, 3.06" - 4", Type F Worm

1шт.

10

87652272

CURTAIN

Barrier, Heat and Noise Reduction

1шт.

11

806-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9

4шт.

12

495-81001

WASHER,5/16"

4шт.

13

833-40408

NUT,M8, U

4шт.
