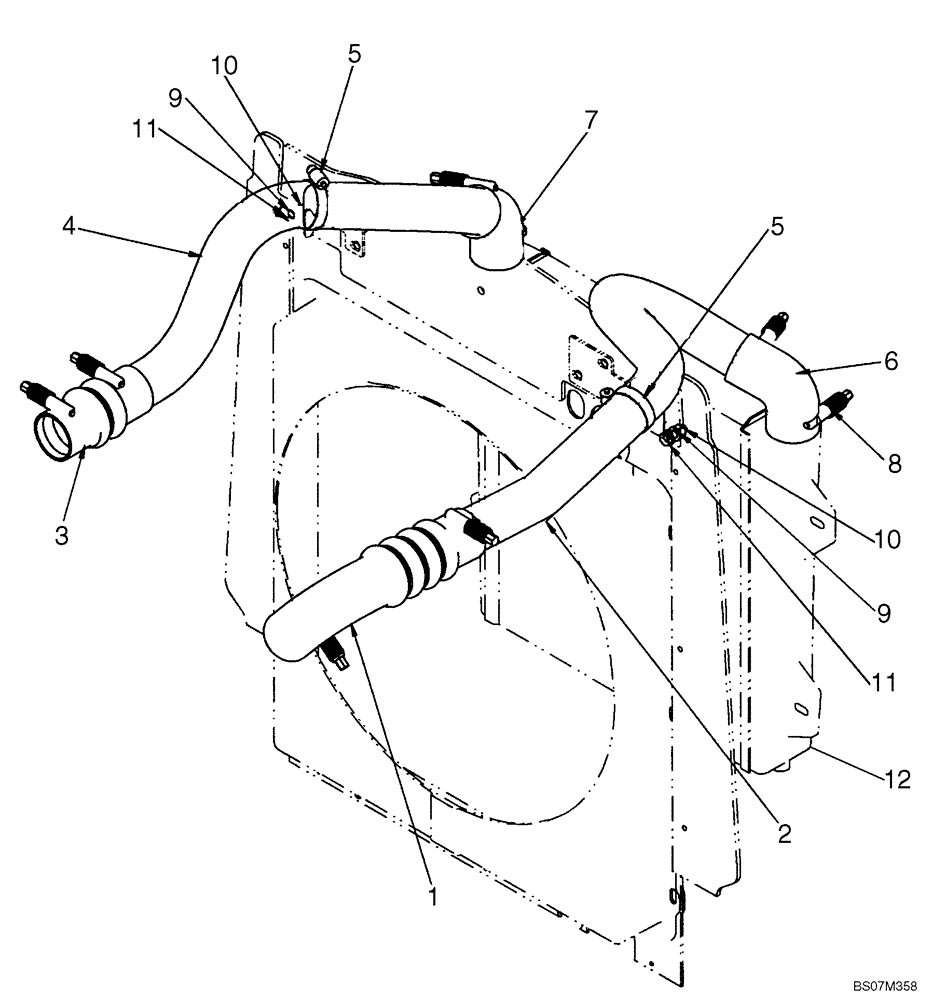

Запчасти Case 590SM (02-03) - COOLER, CHARGE AIR AND HOSES (02) - ENGINE

1

87367626

AIR HOSE,50.8mm ID x 210mm L, Rubber

1шт.

2

87554293

AIR INTAKE TUBE

1шт.

3

86994498

AIR HOSE,50.80 mm ID x 127.00 mm

Incl 1 Reinforcement Ring

1шт.

4

87525807

TUBE,50.8 mm OD x 321.1, 316.2 mm L

1шт.

5

87647029

HOSE CLAMP,40-64mm

2шт.

6

87548811

ELBOW

1шт.

7

87548812

ELBOW

1шт.

8

254026A1

HOSE CLAMP,44.45mm - 66.67mm

8шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

10

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

11

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

12

87611122

COOLER

Charge Air

1шт.
