Запчасти Case 590SM (08-03) - HYDRAULICS - COOLER, RETURN LINES AND FILTER (08) - HYDRAULICS

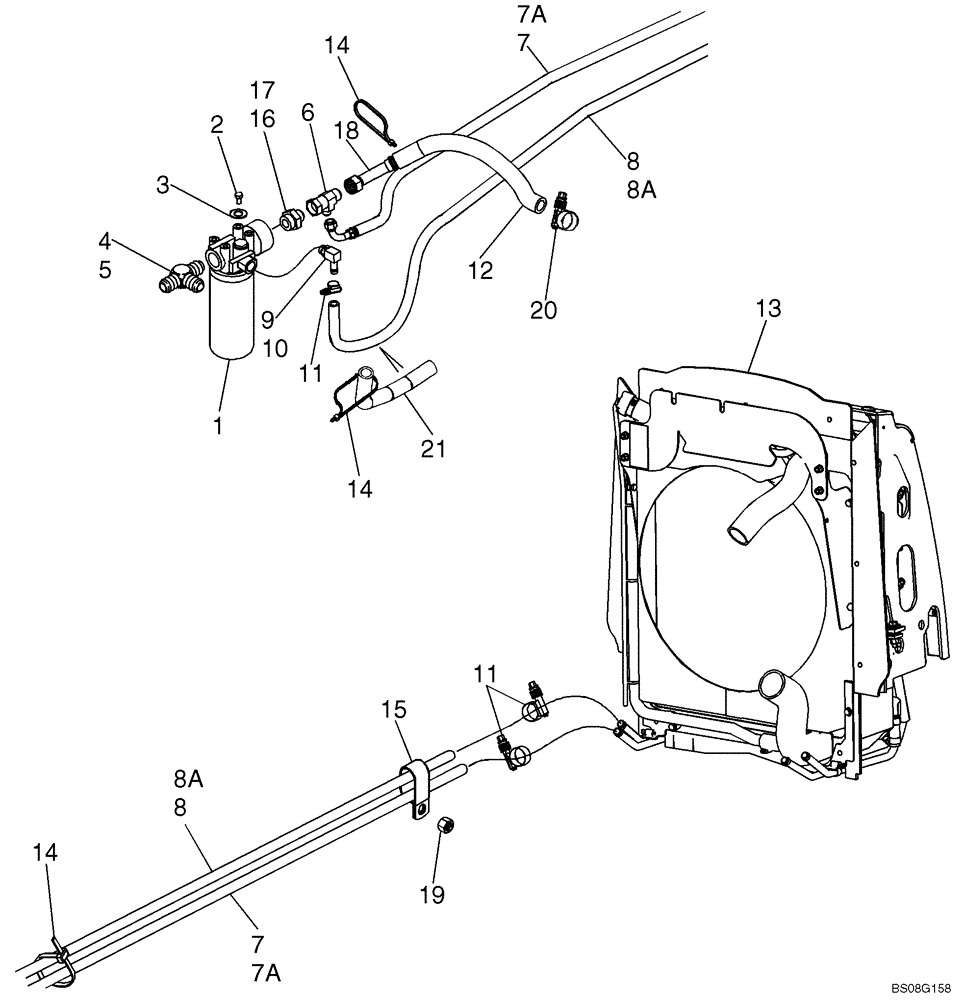

Схема запчастей Case 590SM - (08-03) - HYDRAULICS - COOLER, RETURN LINES AND FILTER (08) - HYDRAULICS
11
2
7
4
14
14
8
10
1
21
13
12
15
14
18
8
20
8a
8a
6
9
11
7
7a
17
5
16
7a
19
3

Артикул

Название

Примечание

Количество

1

87440046

FILTER ASSY

Hydraulic Oil; See Figure 08-61

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

87436066

FITTING,1" 5/16 - 12 ORFS x 1" 5/16 - 12 ORB x 1 1/16" - 12 ORB x 7/8" - 14 ORB

Incl. Ref 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

218-5490

TEE,37 Degree, 1 1/16"-12x1 1/16"-12, Fem Sw Runx7/8"-14 Br

1шт.

7

87659604

HYDRAULIC HOSE,16mm ID x 1570mm L, SAE 100R6

1570 mm; Hydraulic Cooler Outlet To Filter; No Longer Used In This Application, For Serivce Order 87494346, Ref 7A

1шт.

7a

87494346

HYDRAULIC HOSE,15.88mm ID x 1605mm L, SAE 100R6

1605 mm; Hydraulic Cooler Outlet To Filter

1шт.

9

217-349

ELBOW,90 Degree Elbow, 5/8" Hose Barb x 7/8" - 14 Male ORB

Incl Ref 10

1шт.

8

87659784

HOSE,15.88mm ID x 1862mm L, SAE 100R6

Cooler Return To Filter; No Longer Used In This Applicaiton, For Service Order 87491256, Ref 8A

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

8a

87491256

HOSE,16.00 mm ID x 945.00 mm, SAE 100R6

Cooler Return To Filter

1шт.

11

328186A1

HOSE CLAMP,400mm L

3шт.

12

87656501

HOSE PROTECTION,340.00 mm ID x 540.00 mm

1шт.

13

REF

INSTRUCTION

Hydraulic Oil Cooler; For Cooler and Attaching Parts, See Figure 06-10

1шт.

14

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

15

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Double P-Type

1шт.

16

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl. Ref 17

1шт.

17

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

18

87659613

HOSE ASSY.,25mm ID x 720mm L, SAE 100R6

Return To Tank; For Tube Used On Models With Comfort Steer (Fast Steer), See Figure 05-02A

1шт.

19

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

20

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

21

D132982

PADDLE,26.87mm ID x 400mm L

1шт.

Выбрано товаров: 23
