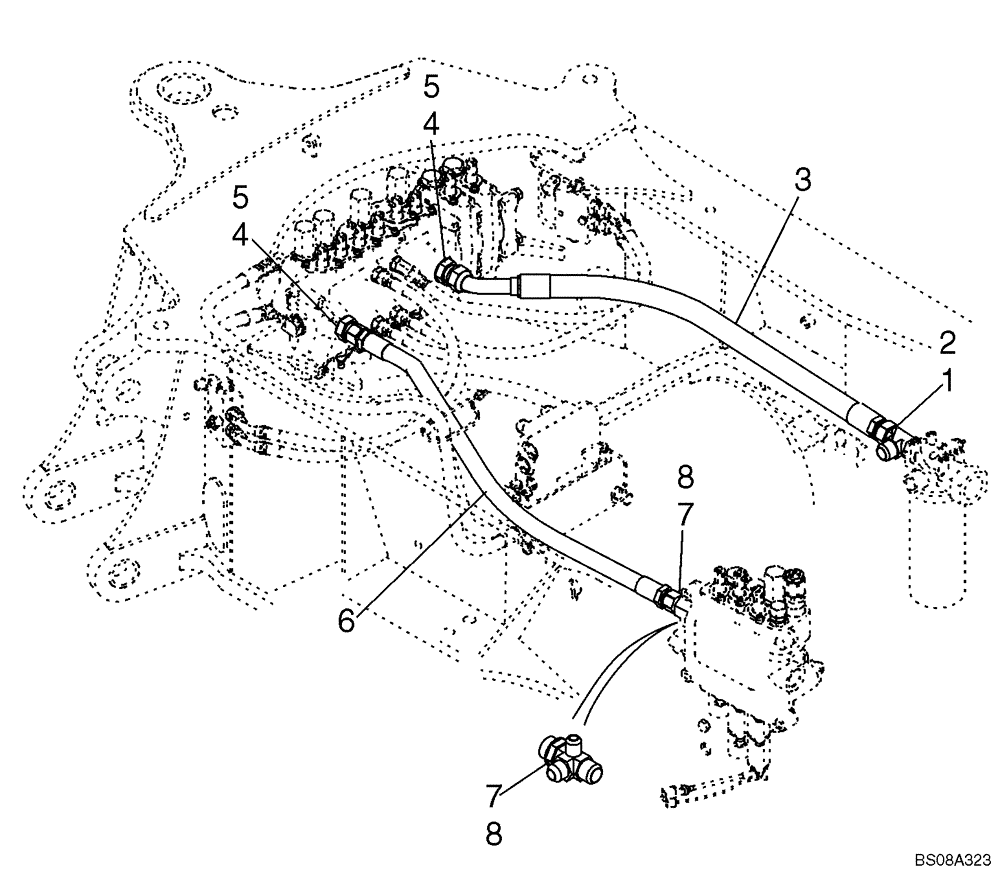

Запчасти Case 590SM (08-02) - HYDRAULICS - LOADER VALVE AND FILTER TO BACKHOE VALVE (590SM STD. W/ MECHANICAL CONTROLS) (08) - HYDRAULICS

REF

INSTRUCTION

MODELS WITHOUT PILOT CONTROLS

1шт.

1

218-5584

TEE,37 Degree, 1 5/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

Incl. Ref 2

1шт.

2

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

3

313648A1

HYDRAULIC HOSE,1.0” ID x 910mm L

910 mm (35-7/8"); Return; Models Without Pilot Controls

1шт.

4

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 5

2шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

6

87437441

HYDRAULIC HOSE,¾” ID x 1025mm L

1025 mm (40-3/8 in); 2 or 3 Spool Valve; Without Auxiliary Hydraulics, Without Pilot Controls; Loader Valve Power Beyond to Backhoe Valve

1шт.

6

87437232

HYDRAULIC HOSE,¾” ID x 370mm L

420 mm (16-9/16 in); 2 Spool Valve; With Auxiliary Hydraulics; With or Without Pilot Controls; Loader Valve Power Beyond to Backhoe Valve

1шт.

6

87437231

HYDRAULIC HOSE

370 mm (14-5/8 in); 3 Spool Valve; With Auxiliary Hydraulics; With or Without Pilot Controls; Loader Valve Power Beyond to Backhoe Valve

1шт.

7

87436066

FITTING,1" 5/16 - 12 ORFS x 1" 5/16 - 12 ORB x 1 1/16" - 12 ORB x 7/8" - 14 ORB

4-Way Special Tee; Incl. Ref 8

1шт.

8

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.
