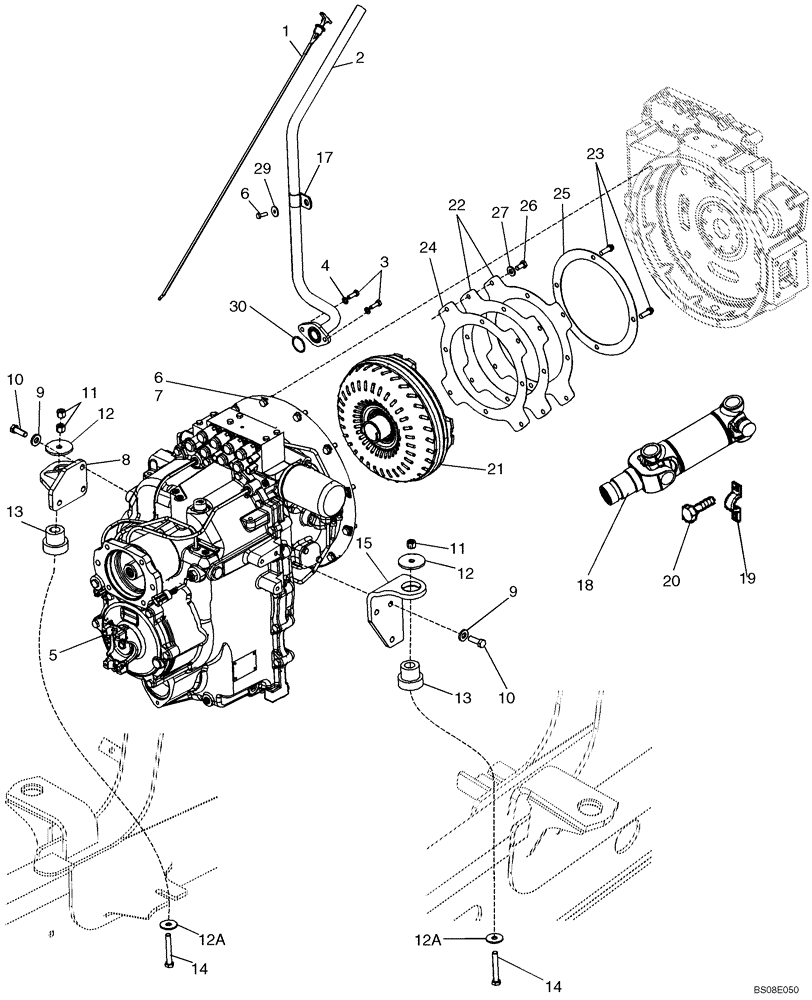

Запчасти Case 590SM (06-12) - TRANSMISSION - MOUNTING (MODELS WITH POWERSHIFT) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
87601345
DIPSTICK,824mm L
1шт.
2
87655222
TUBE
Dipstick
1шт.
3
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
2шт.
4
895-11008
WASHER,9mm ID x 16mm OD x 1.6mm Thk
2шт.
5
87567534
TRANSMISSION
Power Shift, Four Wheel Drive Models, See Figure 06-31 - 06-38, 07-01(02)
1шт.
5
87567534R
REMAN-TRANSMISSION
Powershift Transmission, Four Wheel Drive; Remanufactured
1шт.
5
87567534C
CORE-TRANSMISSION
Powershift Transmission, Four Wheel Drive; Core
1шт.
6
627-10030
BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd
12шт.
7
496-21041
WASHER,13/32" x 13/16" x .089", HDN
12шт.
8
87649397
SUPPORT
Left-Hand Bracket
1шт.
9
896-15012
WASHER,13.5mm ID x 28mm OD x 4mm Thk
6шт.
10
614-12035
BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd
6шт.
11
832-10412
NUT,M12 x 1.75, Cl 8
3шт.
12
85801585
SEALING WASHER,13mm ID x 65mm OD x 5mm Thk
2шт.
12a
85802618
SEALING WASHER,13mm ID x 41mm OD x 3mm Thk
2шт.
13
87416967
SUPPORT
Insulator
2шт.
14
814-12080
BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8
2шт.
15
87632886
SUPPORT
Right-Hand Bracket
1шт.
17
D35908
CLAMP,1" Clamping pipe
1шт.
18
87693489
DRIVE SHAFT
Transmission to Rear Axle; See Figure 06-47
1шт.
20
9637611
SCREW,Hex Flng, 5/16" - 24 x 3/4"
4шт.
21
87702192
TORQUE CONVERTER
1шт.
21
87702192R
REMAN-TORQUE CONVERT
ER Remanufactured
1шт.
21
87702192C
CORE-TORQUE CONVERTR
CORE-TORQUE CONVERTER Return Number
1шт.
23
87019767
12 PT SCREW,M10 x 1.25 x 30mm, Cl 10.9
4шт.
23
1183269
12 PT SCREW,M10 x 1.5 x 30mm, Cl 10.9
Use with kit 47442982
4шт.
24
87406934
PLATE
1шт.
24
47442982
KIT
Flex Plate With Caged Nut
1шт.
25
87409201
BACKING PLATE,228mm ID x 280mm OD x 1.5mm Thk
1шт.
26
614-10020
BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd
4шт.
27
896-15010
WASHER,11mm ID x 24mm OD x 3mm Thk
4шт.
29
12644301
WASHER,M10 x 35 x 3
1шт.
30
272218
O-RING,0.103" Thk x 1.424" ID, -127, Cl 5, 75 Duro
1шт.
Выбрано товаров: 35
