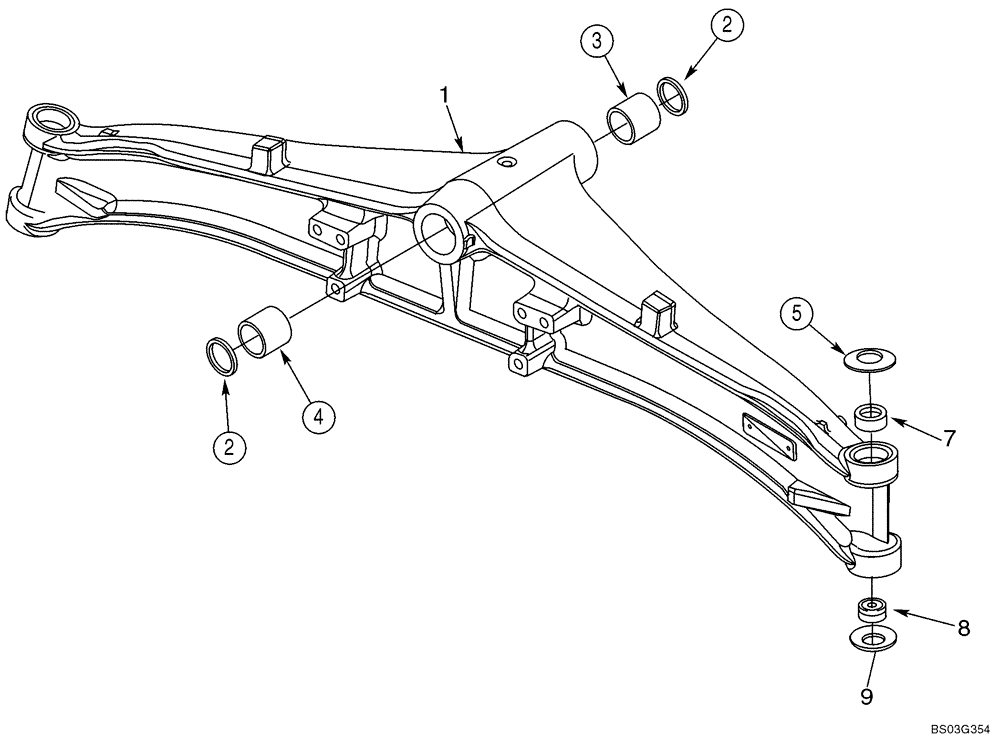

Запчасти Case 590SM (05-05) - AXLE, FRONT (86990837) - HOUSING (05) - STEERING

86990837

AXLE

Front, Two Wheel Drive, Incl. Figures 05-05 - 05-08

1шт.

1

429230A1

AXLE HOUSING

1шт.

2

N14367

SEALING RING,50mm ID x 60.1mm OD x 4mm Thk

2шт.

3

D149726

BUSHING,6.20mm ID x 9.60mm OD x 6mm L

Front

1шт.

4

D149725

BUSHING,59.75 OD x 54mm L

Rear

1шт.

5

122270A1

BELLEVILLE WASHER,36mm ID x 71mm OD x 2mm Th

Belleville

2шт.

7

87400286

BUSHING

2шт.

8

N14373

SPHERICAL BEARING,28mm ID x 52mm OD x 16mm W

Bushing; Two Piece; 28 ID x 50 OD x 16

2шт.

9

122261A1

BELLEVILLE WASHER,47.5mm ID x 70mm OD x 2mm Th

Belleville

2шт.
