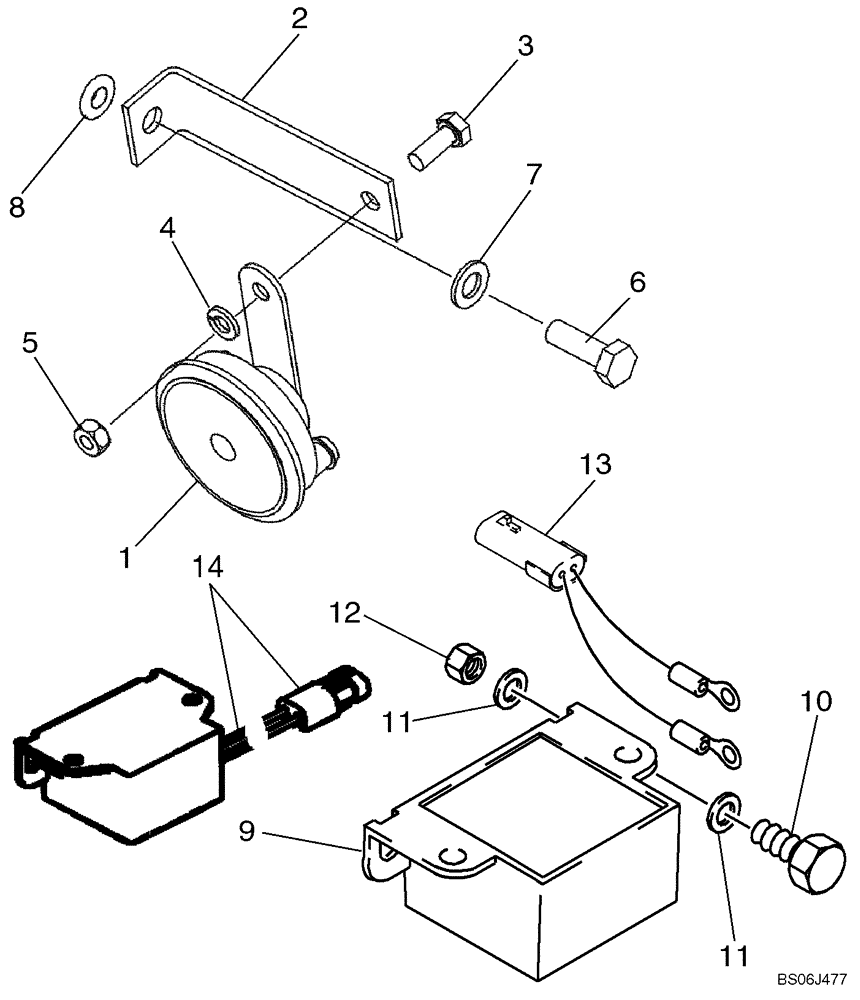

Запчасти Case 590SM (04-17) - HORN - ALARM, BACKUP (04) - ELECTRICAL SYSTEMS

1

237582A1

HORN

Black

1шт.

2

87423496

BRACKET

Bracket

1шт.

3

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

4

892-11008

LOCK WASHER,8mm ID

1шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

6

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

7

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

8

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

M10 Rivnut

1шт.

9

109511A1

ALARM

Backup Alarm; Includes Nuts; Without Wire; If Used

1шт.

10

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

11

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

12

832-10408

NUT,M8 x 1.25, Cl 8.8

2шт.

13

87425869

WIRE HARNESS

Pigtail Wire; Backup Alarm; Used With Ref 9 Alarm; If Used

1шт.

14

87528887

ALARM

Backup; Includes Wire; Replaces Ref 9, 13 Used On Some Models

1шт.
