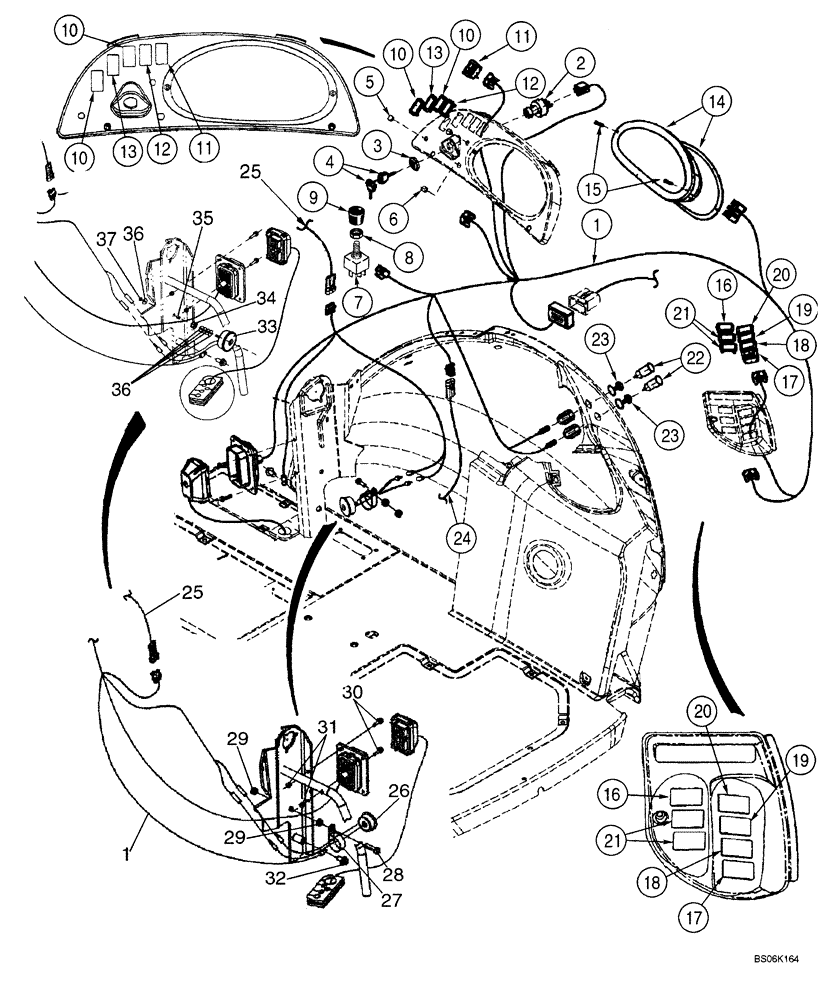

Запчасти Case 590SM (04-10) - HARNESS, SIDE CONSOLE - SWITCHES (04) - ELECTRICAL SYSTEMS

1

87418542

WIRE HARNESS

Side Console Harness

1шт.

282775A1

IGNITION SWITCH

Incl. Ref 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

Switch; Without Keys

1шт.

3

NSS

NOT SOLD SEPARAT

Nut

1шт.

4

1964831C2

IGNITION KEY

Padded

1шт.

5

397569A1

PLUG

7/16 in, Dome; If Used; For Air Conditioning Switch and Knob, See Figure 09-63

2шт.

6

397570A1

PLUG

1/2 in, Dome; If Used; For Heater Switch and Knob, See Figure 09-62

1шт.

7

245258A1

ROTARY SWITCH

Blower

1шт.

121415A1

FUSE,25A, Mini, Clear

Blower and Wiper

1шт.

8

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

1шт.

9

400379A1

KNOB,23mm

1шт.

10

86000535

PLUG,1.427" x .62", Plastic

If Used

1-4шт.

11

133715A1

LIGHT SWITCH

Rear Work Lamps

1шт.

12

235002A1

ROCKER SWITCH

Ride Control; If Used

1шт.

13

133716A1

ROCKER SWITCH

Four Wheel Drive; Models Without Powershift Transmission; If Used

1шт.

13

239408A1

SWITCH

Four Wheel Drive; Models With Powershift Transmission; If Used

1шт.

121412A1

FUSE,10A, Mini, Red

Four Wheel Drive

1шт.

14

87419320

INSTRUMENT CLUSTER

See Figure 04-13

1шт.

87337149R

REMAN-INSTR CLUSTER

590SM SERIES 2 LOADER BACKHOE (TIER 2) (NA) (2/04-), Reman for new PN 87419320

1шт.

87337149C

CORE-CLUSTER, INSTR

Return Number

1шт.

15

140-119

SCREW,Cross Pan Hd, #10 - 24 x 1 1/4"

2шт.

16

86000535

PLUG,1.427" x .62", Plastic

If Used

1-6шт.

17

386852A2

SWITCH

Horn

1шт.

18

386788A1

WINDSHIELD WIPER SWI

Rear Window Washer; If Used

1шт.

19

386786A1

ROCKER SWITCH

Rear Wiper; If Used

1шт.

20

86000535

PLUG,1.427" x .62", Plastic

If Used

1шт.

21

386789A2

SWITCH

Backhoe Quick Coupler and Hydraulic Backhoe Bucket Coupler; If Used

2шт.

22

283779A1

POWER SOCKET,12V

30 amp Maximum

2шт.

23

283781A1

CAP,Polyester Elastomer

Power Plug Outlet

2шт.

25

NSS

NOT SOLD SEPARAT

Harness; Loader Control Lever; Included In Loader Control Lever Handle

1шт.

26

D137468

BUZZER

Without Stud; Engine Water Temperature, Engine Oil Pressure and Parking Brake; If Used

1шт.

27

515-23444

CLAMP,1 3/4", Insul, 3/8" Bolt

1-3/4; If Used

1шт.

28

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

If Used

1шт.

29

829-1410

NUT,M10 x 1.5, Cl 10.9

If Used

2шт.

30

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

2шт.

31

832-10406

NUT,M6 x 1, Cl 8

2шт.

32

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

1шт.

87537152

WIRE HARNESS

Chassis Options Harness; Includes (4) L71879 Diodes; Replaces 87436675

1шт.

L71879

DIODE ELEMENT,400V, 3A

4шт.

33

87387852

ALARM

With #8-32 x 1 inch Socket Set Screw Loctited to Alarm; Engine Water Temperature, Engine Oil Pressure and Parking Brake; If Used

1шт.

34

87389175

GROMMET

Rubber; If Used

1шт.

35

87398413

SPACER

If Used

1шт.

36

895-30108

WASHER,4.3mm ID x 15mm OD x 1.2mm Thk

Flat; #4; If Used

5шт.

37

225-14108

NUT,#8-32

If Used

1шт.
