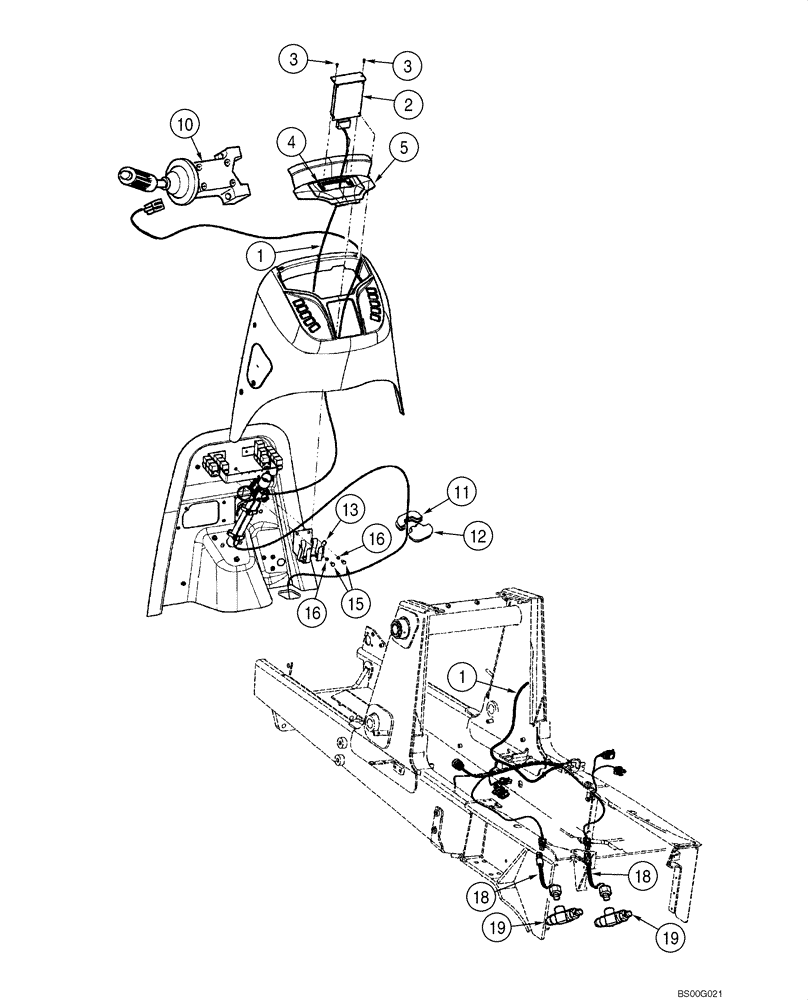

Запчасти Case 590SM (04-09) - ELECTRICAL - TRANSMISSION, POWERSHIFT (WITHOUT COMFORT STEER) (04) - ELECTRICAL SYSTEMS

1

392882A4

HARNESS

Powershift Transmission

1шт.

2

87421488

CONTROL

Controller, Transmission, APC73; Used With 87424815 Transmission

1шт.

2

87421488R

REMAN ELECT CONTROL

Flight Syst List - Dana Controller

1шт.

2

87421488C

CORE-ELECTRONIC CONT

Return Number, CONTROLLER, TRANSMISSION, 580SM

1шт.

2

87589406

ECU

Transmission, APC73; ; Used With 87645686 and 87749356 Transmissions

1шт.

2

87589406R

REMAN ELECT CONTROL

590SM SERIES 2 LOADER BACKHOE (TIER 2) (NA), WITHOUT COMFORT STEER, Transmission, APC73 (2/04-)

1шт.

2

87589406C

CORE-ELECTRONIC CONT

Return Number

1шт.

3

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

No. 10 x 3/4, Stainless Steel; Replaces 140-107 Non-Stainless Steel Screw Used On Some Models

2шт.

4

176857A1

SPRING NUT

No. 10, J-Type

2шт.

5

363227A2

COVER

Relay Access

1шт.

278316A2

CLIP

Relay Access Cover

2шт.

10

231520A2

SWITCH

Shuttle Shift; Transmission; Forward/Neutral/Reverse, See Figure 04-07

1шт.

11

397443A2

SEAL,110mm L

Shift Lever Hole Plug

1шт.

12

397493A2

SEAL,106mm L

Shift Lever Hole Plug

1шт.

13

400376A1

ELEC SUPPORT PLATE

1шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

16

892-11008

LOCK WASHER,8mm ID

2шт.

18

D138955

SWITCH

Pressure; Stop Lamp

2шт.

19

222889A1

FITTING

At Rear Axle Brakes, See Figure 07-04

2шт.
