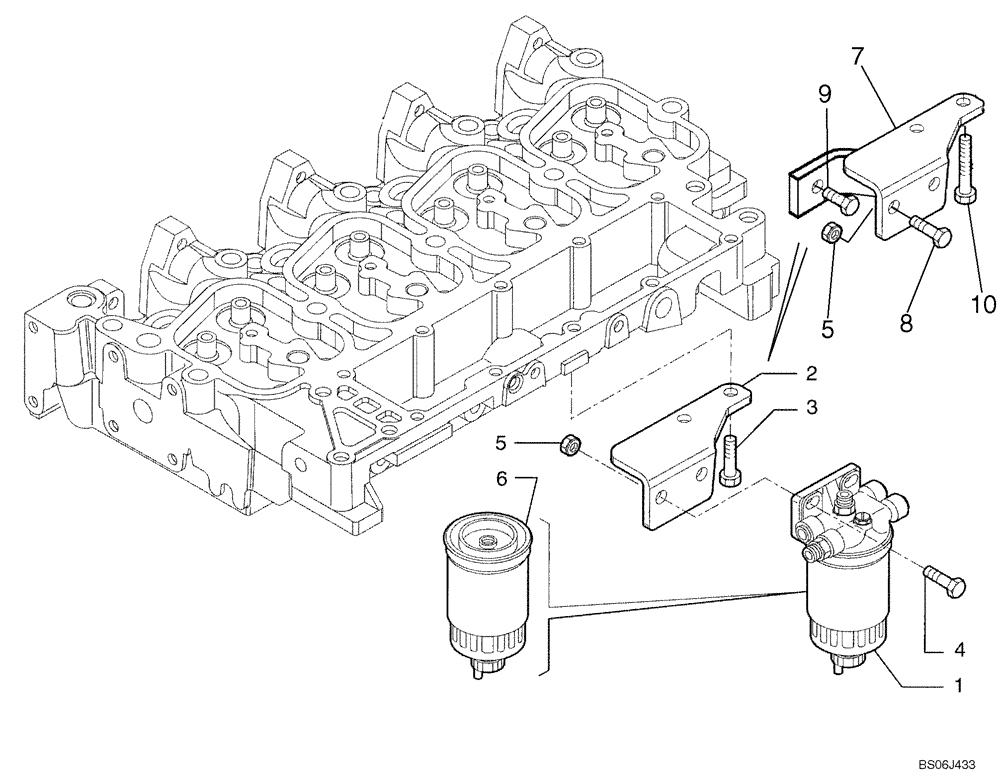

Запчасти Case 590SM (03-08) - FUEL FILTER (03) - FUEL SYSTEM

1

2852098

FILTER ASSY

- ASSY

1шт.

2

2852099

SUPPORT

2 Bolt Holes; If Used

1шт.

3

4899068

BOLT,Flng, M8 x 1.25 x 16mm

If Used

2шт.

4

4899093

BOLT,Hex Flange, M10 x 30.00mm, Cl 10.9, PHC

If Used

2шт.

5

4895166

FLANGE NUT,M10, 1.50mm Pitch, Cl 10

Flange, M10

2шт.

6

87803194

FUEL FILTER

1шт.

7

2855103

SUPPORT

3 Bolt Holes; If Used

1шт.

8

16587325

SCREW,Hex, M10 x 35mm

M10 x 1.5 x 35; If Used

2шт.

9

4899020

FLANGE BOLT,Hex, M8 x 1.25 x 20mm

1шт.

10

2830411

BOLT,Flng, M8 x 1.25 x 30mm

M 8 x 1.25 x 30; If Used

2шт.
