Запчасти Case 590SM (03-02) - CONTROLS - THROTTLE, HAND (03) - FUEL SYSTEM

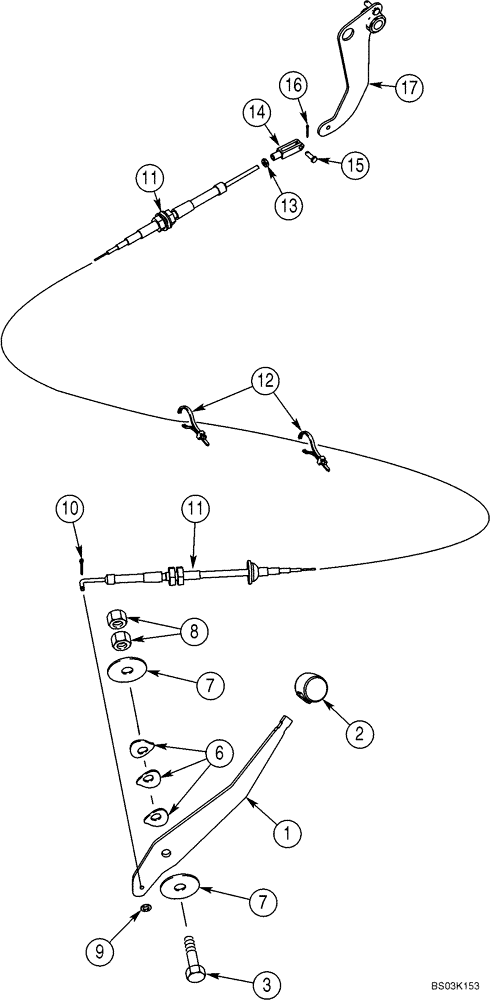

Схема запчастей Case 590SM - (03-02) - CONTROLS - THROTTLE, HAND (03) - FUEL SYSTEM
9
7
10
13
2
11
7
8
15
3
16
12
14
1
17
6
11

Артикул

Название

Примечание

Количество

1

395189A2

LEVER

1шт.

2

A177435

BALL KNOB

Lever

1шт.

3

514-847

BOLT,Hex, M12 x 1.25 x 50mm, Cl 8.8

1шт.

6

D148962

WASHER,12.7mm ID x 38.1mm OD x 1.19mm Thk

3шт.

7

496-81018

WASHER,0.521" ID x 2" OD x 0.108 Thk, ZND

33/64 x 2 x 1/8

2шт.

8

825-11412

NUT,M12 x 1.25, Cl 8

2шт.

9

495-31022

WASHER,#10

1шт.

10

432-48

COTTER PIN,1/16" x 1/2"

1шт.

11

87340753

CABLE,2250mm L

Replaces 350014A3; 87330322

1шт.

12

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in, Nylon, Retaining

4шт.

13

225-14210

NUT,#10-32

1шт.

14

213-123

ADJUSTABLE CLEVIS,#10-32 x 1 9/16"

1шт.

15

427-3058

CLEVIS PIN,3/16" x .580"

1шт.

16

432-48

COTTER PIN,1/16" x 1/2"

1шт.

17

378957A3

LEVER ASSY.

Models Without Powershift Transmission

1шт.

17a

380485A3

LEVER ASSY.

Models With Powershift Transmission, Not Illustrated

1шт.

Выбрано товаров: 16
