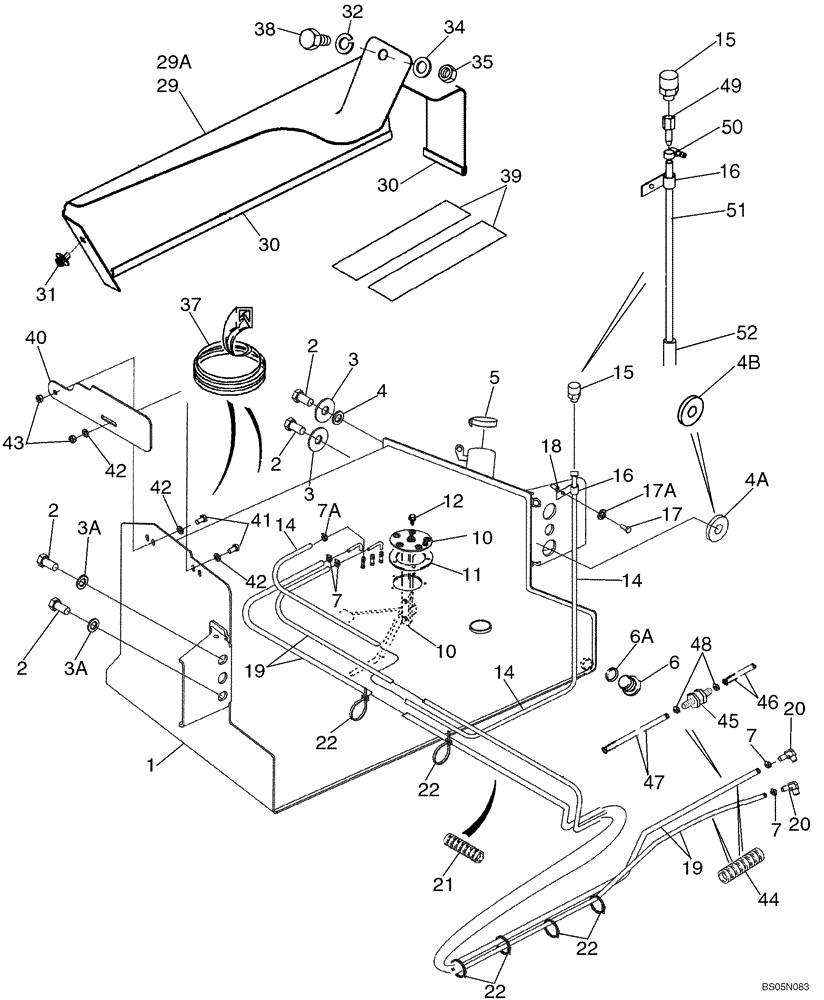

Запчасти Case 590SM (03-01) - FUEL LINES, RESERVOIR (03) - FUEL SYSTEM

1

87429318

FUEL TANK

42 gal; Incl. Ref 6; With Welded Fuel Sender Tubes; Includes Left Hand Steps, Mounts to Left Hand Side of Chassis

1шт.

2

443375A1

BOLT,Hex, M20 x 2.5 x 60mm, Cl 10.9

M20 x 60; With Loctite

4шт.

3

302358A1

WASHER,21mm ID x 54mm OD x 4mm Th

2шт.

3a

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

2шт.

4

185926A1

SPACER,21mm x 40mm x 6.6mm Th

21 ID x 40 OD x 6.6 mm thk, Upper Left Hand Side of Tank

1шт.

4a

409473A1

SPACER

21 ID x 55.5 OD x 10.25 mm thk, With 40 mm dia x 6.6 mm thk Raised Surface; If Used; Lower Left Hand Side of Tank

1шт.

4b

87360282

SPACER,22mm ID x 57mm OD x 10.25mm L

SPACER 22 ID x 57 OD x 10.25 mm thk, Flat; If Used; Lower Left Hand Side of Tank

1шт.

5

87335469

LOCKABLE FUEL CAP,Male, Lockable

Replaces 130049A1 Fuel Cap Used On Some Models

1шт.

6

86625138

PLUG,7/18" - 14

Drain, Includes Ref. 6A; Included with Ref 1

1шт.

6a

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

7

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

4шт.

7a

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

1шт.

10

87408480

SENDER UNIT

Fuel Level, 42 Gallon Tank, Without Tubes, Includes Seal and Grounding Hardware

1шт.

11

188311A2

GASKET,2.38mm Thk

No Longer Used

1шт.

12

D75465

SCREW,#10 - 32 x 5/8"

No. 10 NF x 5/8

5шт.

14

234892A1

HOSE

HOSE,LARGE 1/4 ID x 1100 mm (43-5/16 in), 1/4 NPTF Fem End x Cut Hose End; Vent; If Used

1шт.

15

130047A1

BREATHER ASSY.

Vent

1шт.

16

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

17

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

1шт.

17a

892-11008

LOCK WASHER,8mm ID

1шт.

18

87417383

THREADED INSERT,M8 x 1.25

M8 Nut

1шт.

19

87444942

FUEL HOSE,9.53 mm ID x 1650.00 mm, SAE 30R7

To Fuel Lift Pump and Injector Pump; Two Used On Models Without In-Line Fuel Check Valve

1-2шт.

20

87414560

90 ELBOW

ELBOW, 90 deg, Includes O-Ring

2шт.

21

87434880

HOSE PROTECTION,34mm ID x 450mm L

450 mm (17-3/4 in)

1шт.

22

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP 15 in

1шт.

29

189602A3

COVER

Mounted Above Fuel Reservoir; Models With Two Spool Loader Valve

1шт.

29a

188009A3

COVER

Mounted Above Fuel Reservoir, Models With Three Spool Loader Valve

1шт.

30

191046A1

ORNAMENTAL STRIP

Trim, 650 mm (25-5/8 in), Cut From A165860; Apply 65 mm (2-9/16 in) of Trim to Front Lower Edge and 575 mm (22-11/16 in) of Trim to Outside Lower Edge of Cover

1шт.

31

307577A1

BOLT

Special, M8 x 20

1шт.

32

892-11010

LOCK WASHER,M10

1шт.

34

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

35

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.

37

D40442

MOLDING

Trim, 305 mm (12 in), Cut From F42827; If Used

1шт.

38

814-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 8.8

Models with Three Spool Loader Valve

1шт.

38

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

Models with Two Spool Loader Valve

1шт.

39

D80270

ANTI-SKID STRIP,635mm / 25 Inch

635 mm (25 in)

2шт.

40

397548A4

PLATE

Mud

1шт.

41

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

42

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

3шт.

43

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

44

191704A1

HOSE PROTECTION,19mm ID x 25mm OD x 460mm L

Hose Sleeve

2шт.

45

87454053

VALVE, CHECK

Fuel Line; Install With Flow Arrow Pointed Toward Tank; If Used

1шт.

46

87454055

FUEL HOSE,9.53 mm ID x 150.00 mm, SAE 30R7

Return to Check Valve, If Used

1шт.

47

87454054

FUEL HOSE,9.53 mm ID x 1500.00 mm, SAE 30R7

Check Valve to Tank, If Used

1шт.

48

214-1706

HOSE CLAMP,#06, 0.44" - 0.78", Type M Worm

If Used

2шт.

49

217-117

FITTING,1/4" Hose x 1/4" NPTF, Fem, Barbed

Brass; If Used

1шт.

50

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

If Used

1шт.

51

87362937

HOSE,6.35mm ID x 1080mm L, SAE 30R6

1/4 ID x 1080 mm; Cut Hose Both Ends; Fuel Vent; If Used

1шт.

52

143219A1

HOSE PROTECTION,19mm ID x 24mm OD x 450mm L

Hose Sleeve; If Used

1шт.
