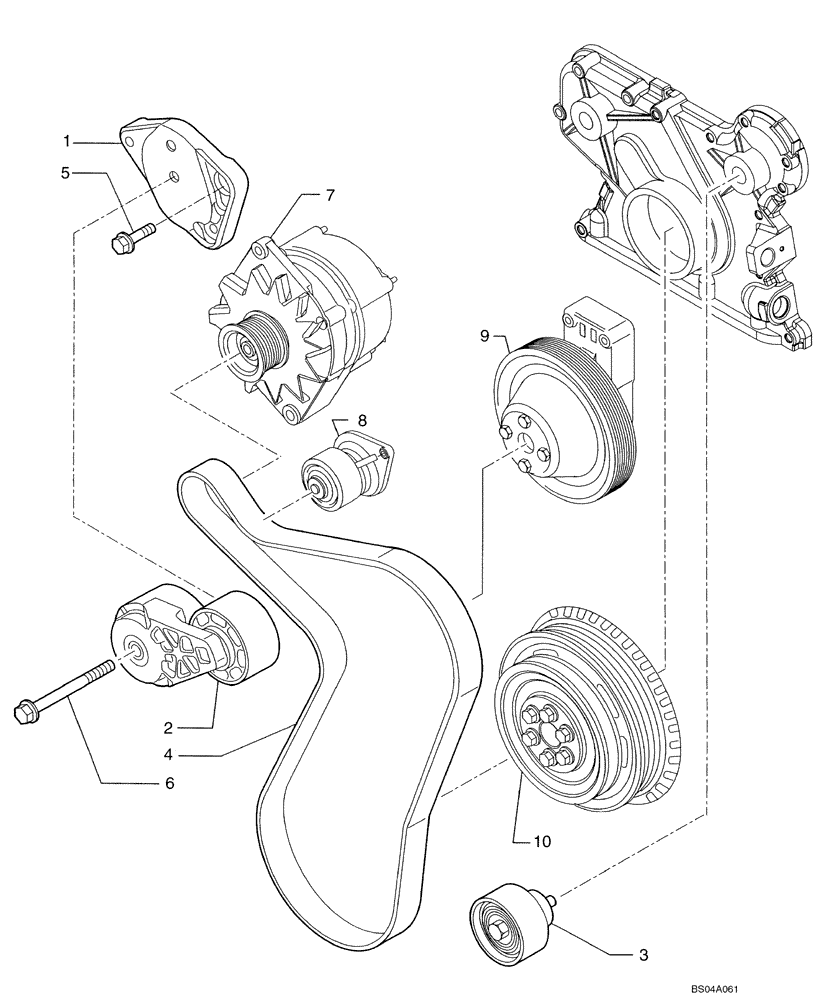

Запчасти Case 590SM (02-38) - WATER PUMP - CONTROL (02) - ENGINE

1

2852621

SUPPORT

Support

1шт.

2

2852161

BELT TENSIONER

1шт.

2

2855622

BELT TENSIONER

Alternate Part To 2852161

1шт.

3

2852162

PULLEY,65mm OD

Pulley

1шт.

4

REF

INSTRUCTION

BELT; See Figure 02-01

1шт.

5

2852247

BOLT,Hex, M8 x 1.25 x 30mm

Flange, M8 x 30

2шт.

6

4895292

FLANGE BOLT,Hex, M10 x 1.5 x 70mm

1шт.

7

REF

INSTRUCTION

ALTERNATOR; See Figure 04-02

1шт.

8

REF

INSTRUCTION

WATER PUMP; See Figure 02-35

1шт.

9

REF

INSTRUCTION

FAN DRIVE; See Figure 02-39

1шт.

10

REF

INSTRUCTION

CRANKSHAFT PULLEY; See Figure 02-25

1шт.
