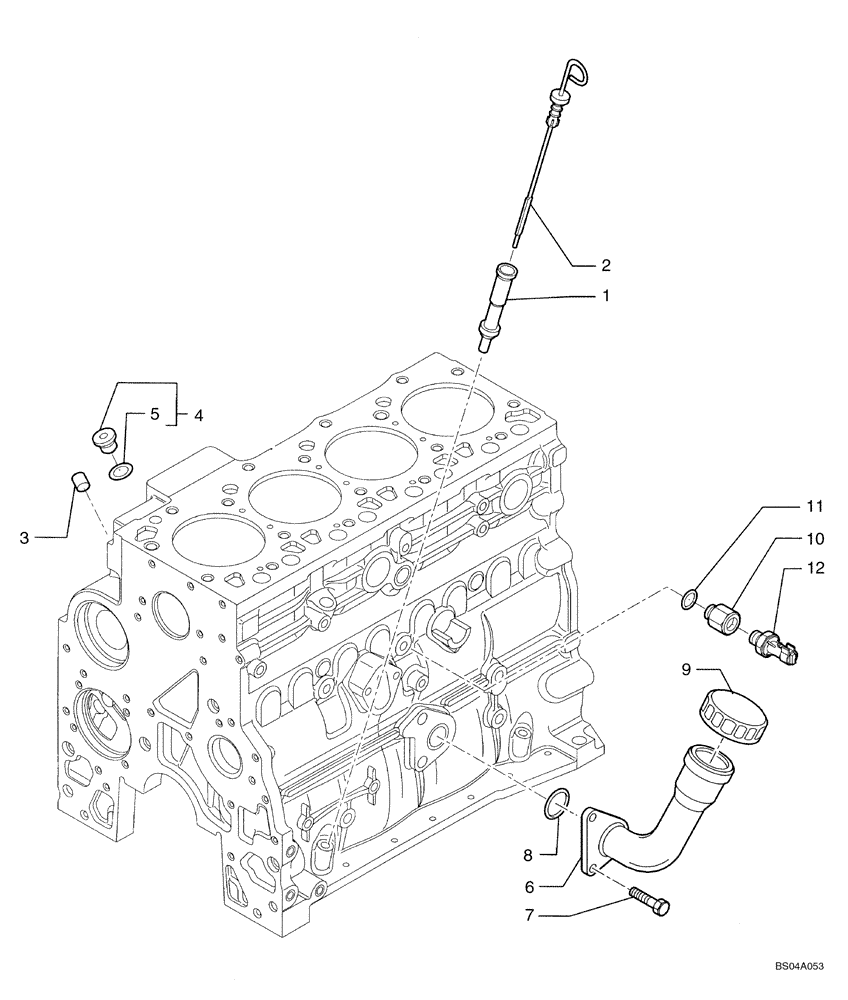

Запчасти Case 590SM (02-30) - ENGINE, OIL (02) - ENGINE

1

2852122

TUBE,81 mm Length

1шт.

2

2852125

DIPSTICK,351.5mm L

Includes 2852127 Seal

1шт.

3

4895406

EXPANSION PLUG,9.8mm OD

Replaces 4899036

1шт.

4

4897330

HEX SOCKET PLUG,M12 x 1.5

- Assy; Incl. Ref 5

2шт.

5

4895610

O-RING,2.2mm Thk x 9.3mm ID

1шт.

6

2853407

NECK FILLER,143, 117.3 mm Length

Tube

1шт.

6

2852130

RIGID TUBE,42.43 mm OD, 150, 119.4 mm Length

1шт.

7

16677734

BOLT,Hex Flg, M12 x 1.75 x 25mm

Replaces 2852134

2шт.

8

14458681

O-RING,1.487" ID x 0.103" Width

Replaces 2852135

1шт.

9

2853410

FILLER CAP,Female

Oil; Inc. 2853412 O-Ring, Used on 2853407

1шт.

9

2852136

CAP,48mm ID x 56mm OD x 18mm W

Oil, Used on 2852130

1шт.

10

2852140

HYD CONNECTOR

Reducer

1шт.

11

4899115

O-RING,2.2mm Thk x 11.3mm ID

1шт.

12

2852889

PRESSURE SWITCH

Oil Pressure

1шт.

13

2852127

GASKET,5mm ID, 18mm OD, 13mm OD, 43mm L

1шт.
