Артикул
Название
Примечание
Количество

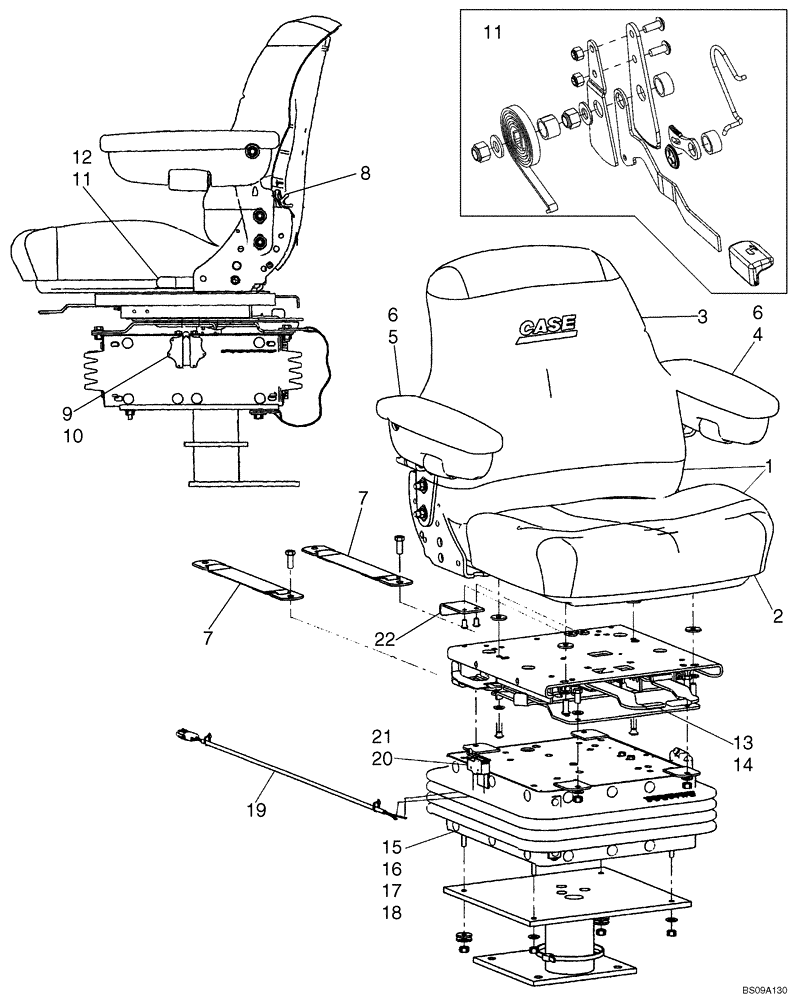

87399492
DRIVER SEAT
Vinyl, Mechanical Suspension, Sears SA26269, This Seat is Located 19 mm (3/4 in) Farther Forward From Center of Pedestal; Incl. Ref 1 - 21; Also Includes 87555125 Pedestal Assy; Replaces 87454295 Seat Assy, Which Included 87349995 Pedestal
1шт.
87399491
DRIVER SEAT
Cloth, Mechanical Suspension, Sears SA26268, This Seat is Located 19 mm (3/4 in) Farther Forward From Center of Pedestal; Incl. Ref 1 - 21; Also Includes 87555125 Pedestal Assy; Replaces 87454294 Seat Assy, Which Included 87349995 Pedestal
1шт.
87555125
PEDESTAL
Assembly; 87399492 or 87399491 Seat Assy; Replaces 87349995 Pedestal Assy Used in 87454295 or 87454294 Seat Assy
1шт.
1
87308118
SEAT
Top Assy, Vinyl; Includes Back and Seat Cushions
1шт.
1
87308157
SEAT BACK
Top Assy, Cloth; Includes Back and Seat Cushions
1шт.
2
87308119
SEAT CUSHION
Vinyl
1шт.
2
87308158
SEAT CUSHION
Cloth
1шт.
3
87308127
SEAT BACK
Vinyl
1шт.
3
87308159
SEAT CUSHION
Cloth
1шт.
4
87308153
ARMREST
Left-Hand
1шт.
5
87308152
ARMREST
Right-Hand
1шт.
6
87308154
SEAT ACCESSORY
Arm Pad; Includes (1) Arm Pad, (1) Screw
2шт.
7
87308128
SEAT ACCESSORY
Kit, Tether Belt; Includes (2) Tether Belts, (2) Bolts, (4) Washers, (2) Lock Nuts
1шт.
8
87037462
SEAT BACK ADJUST DEV
Lumbar Knob Kit; Includes Knob, 1/8 x 5/8 Roll Pin
1шт.
87308130
SEAT BACK ADJUST DEV
Kit, Lumbar; Includes (2) Screws, (2) Rivets, (1) Back Support, (1) Lumbar Shaft Yoke
1шт.
9
123969A1
SEAT ACCESSORY
Kit, Height/Weight Adjustment; Incl (1) Knob, (1) Shaft, (1) 5/32 x 1 in Roll Pin
1шт.
10
38-11016
LOCK PIN,5/32" x 1", Slotted
1шт.
130674A1
SET
Kit, Weight Adjustment; Includes (1) Thrust Washer, (2) Shaft and Gear
1шт.
87308145
THRUST WASHER
2 OD x .6 in ID
1шт.
11
86994165
SEAT ACCESSORY
Recliner Kit; Includes (2) Brackets, (3) Spacers, (2) Springs, Knob, Latch, Lever, (2) Bolts, (2) Washers, (5) Nuts
1шт.
12
87416475
KNOB
Recliner Cap
1шт.
87308143
SEAT SUPPORT
Upper Housing, Boxed
1шт.
1977725C1
SLIDER
Kit, Bearing, Slider Block; Includes (4) Tube Bearings, (1) Ride Indicator, (1) A45512 Slider Block, (1) A45515 Slider Block, (1) A45516 Slider Block, (1) NSS Slider Block
1шт.
13
87308131
SEAT ACCESSORY
Swivel Assembly
1шт.
14
87308132
BEARING ASSY
Swivel Bearing; Includes (1) Bolt, (8) Ball Bearings, (1) Clip, (1) Nut, (1) Cotter Pin, (1) Plastic Washer, (1) Ball Retainer
1шт.
15
87308141
SEAT SUPPORT
Kit, Suspension Assembly, Boxed
1шт.
16
87308144
SEAT SUPPORT
Suspension Arm, Boxed
1шт.
17
87308146
SEAT ACCESSORY
Kit, Spring, Suspension
1шт.
18
87308147
SEAT ACCESSORY
Kit, Boot, Suspension, Boxed; Includes (1) Boot, (26) Buttons
1шт.
87308148
SEAT ACCESSORY
Kit, Shock Absorber, Boxed; Includes (1) Shock Absorber, (2) Bushings
1шт.
51200906
BRACKET
Shaft, Suspension
1шт.
112884A1
SHAFT,368mm L
Bearing Shaft Weldment, Boxed
2шт.
A45504
SPRING WASHER
Spring, Square, With Weldnut
1шт.
A45505
GEAR
Large Gear and Shaft Weldment
1шт.
A45513
GEAR
Gear and Shaft Weldment
1шт.
A45054
BUMPER,Neoprene
Rubber, Black
2шт.
87308142
SEAT SUPPORT
Lower Housing, Boxed
1шт.
19
87308149
WIRE HARNESS
1шт.
20
87308150
SWITCH
Seat
1шт.
21
87308151
SEAT ACCESSORY
Kit, Switch and Actuator Lever; Includes Switch, Actuator, (4) Screws, (2) Lock Washers, (2) Nuts
1шт.
22
84174986
BRACKET
Front Stop
1шт.
Выбрано товаров: 41
