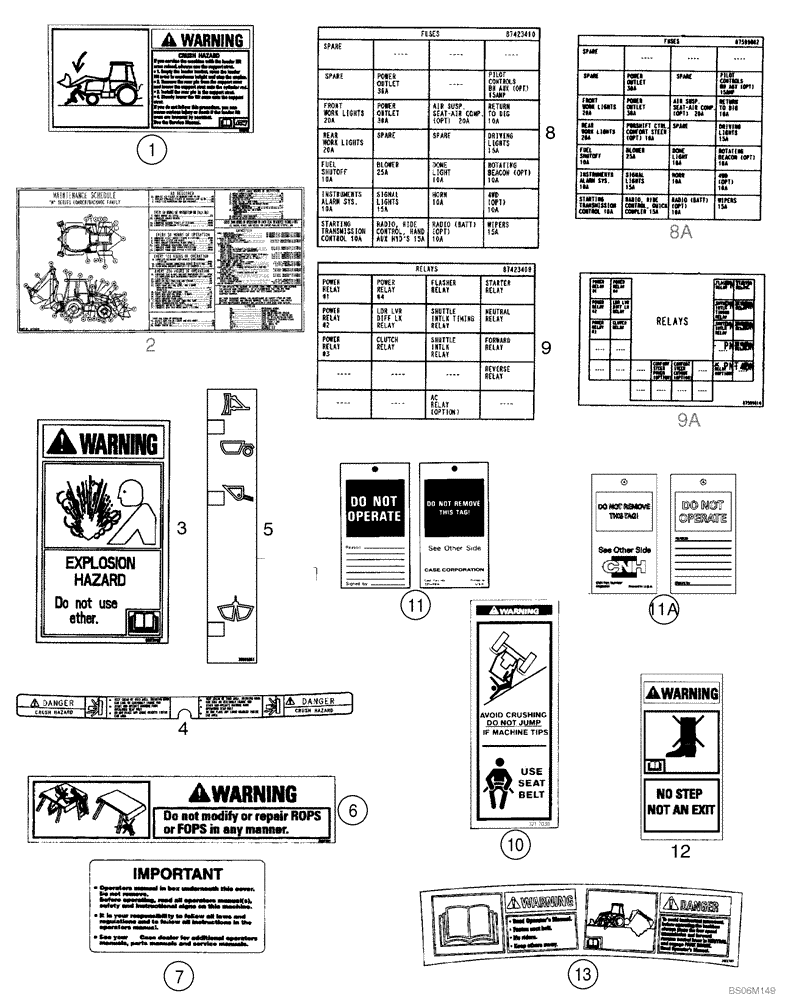

Запчасти Case 590SM (09-75) - DECALS - LATIN AMERICAN SPANISH (09) - CHASSIS/ATTACHMENTS

87307893

WARNING DECAL

Crush Hazard; When Changing A Machine to Foot Swing Controls; For Illustration See Ref 9 On Figure 09-73

1шт.

1

398576A1

WARNING DECAL

Crush Hazard; Loader Arm Support Strut

1шт.

2

87636606

DECAL

Maintenance Schedule; Supplied by Parts and Components; Replaces 87430921, 87446006, 87308998

1шт.

3

8603094

WARNING DECAL

Explosion Hazard, Do Not Use Ether

1шт.

4

86992981

DANGER DECAL

Crush Hazard

1шт.

5

398658A1

DECAL

Clam Bucket Position

1шт.

6

389729A1

WARNING DECAL

Do Not Modify or Repair ROPS or FOPS In Any Manner

1шт.

7

398662A1

IMPORTANT DECAL

Operator's Manual In Box Underneath This Cover; Glove Box Lid

1шт.

8

87431078

DECAL

Fuse Location; Models Without Comfort Steer (Fast Steer); If Used

1шт.

8a

87624317

DECAL

Fuse Location; Models With Comfort Steer (Fast Steer); If Used; North America Units

1шт.

9

87431081

DECAL

Relay; Models Without Comfort Steer (Fast Steer); If Used

1шт.

9a

87624319

DECAL

Relay; Models With Comfort Steer (Fast Steer); If Used; North America Units

1шт.

10

398672A1

WARNING DECAL

Avoid Crushing; Do Not Jump / Use Seat Belt

2шт.

11

298521A1

TAG

Do Not Operate; If Used

1шт.

11a

87380559

TAG

TAG, Do Not Operate; If Used

1шт.

12

86992980

WARNING DECAL

No Step/Not An Exit; Canopy

2шт.

13

398598A1

WARNING DECAL

Warning/Danger; Read the Operator's Manual

1шт.

14

148093A1

IMPORTANT DECAL

Lubrication; Not Illustrated

1шт.

15

148095A1

DECAL

DECAL, Attention; Welding; Not Illustrated

1шт.
