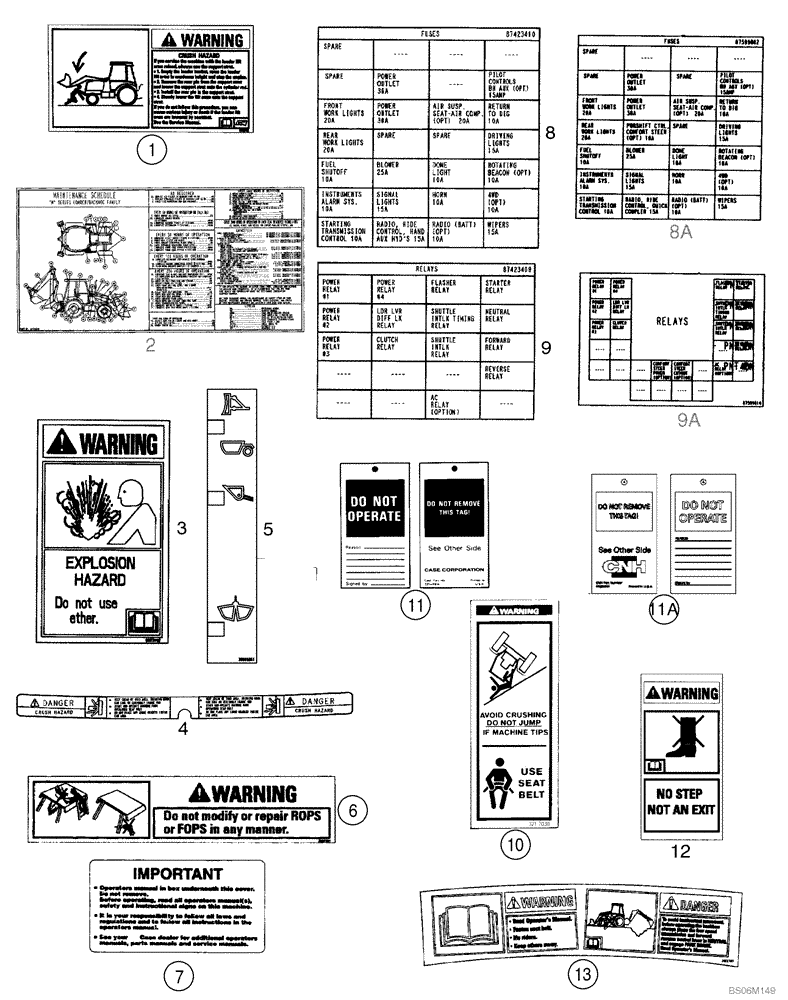

Запчасти Case 590SM (09-74) - DECALS - ENGLISH (09) - CHASSIS/ATTACHMENTS

1

384264A1

WARNING DECAL

Crush Hazard; Loader Arm Support Strut

1шт.

2

87636604

DECAL

Maintenance Schedule; Supplied by Parts and Components; Replaces 87428640, 87445785, 87308996

1шт.

3

47728994

DECAL

Warning; Explosion Hazard, Do Not Use Ether

1шт.

4

86992976

DANGER DECAL

Crush Hazard

1шт.

5

398658A1

DECAL

Clam Bucket Position

1шт.

6

383972A1

WARNING DECAL,195mm x 37mm H

Do Not Modify or Repair ROPS or FOPS In Any Manner

1шт.

7

144193A3

IMPORTANT DECAL

Operator's Manual In Box Underneath This Cover; Glove Box Lid

1шт.

8

87423410

DECAL

Fuse Location; Models Without Comfort Steer (Fast Steer); If Used

1шт.

8a

87599802

DECAL

Fuse Location; Models With Comfort Steer (Fast Steer); If Used; North America Units

1шт.

9

87423409

DECAL

Relay; Models Without Comfort Steer (Fast Steer); If Used

1шт.

9a

87599810

DECAL

Relay; Models With Comfort Steer (Fast Steer); If Used; North America Units

1шт.

10

321-7030

WARNING DECAL

Avoid Crushing; Do Not Jump / Use Seat Belt

2шт.

11

321-4614

TAG

TAG, Do Not Operate; If Used

1шт.

11a

87358697

TAG

TAG, Do Not Operate; If Used

1шт.

12

86992975

WARNING DECAL

No Step/Not An Exit; Canopy

2шт.

13

392374A1

WARNING DECAL

Warning/Danger; Read the Operator's Manual

1шт.
