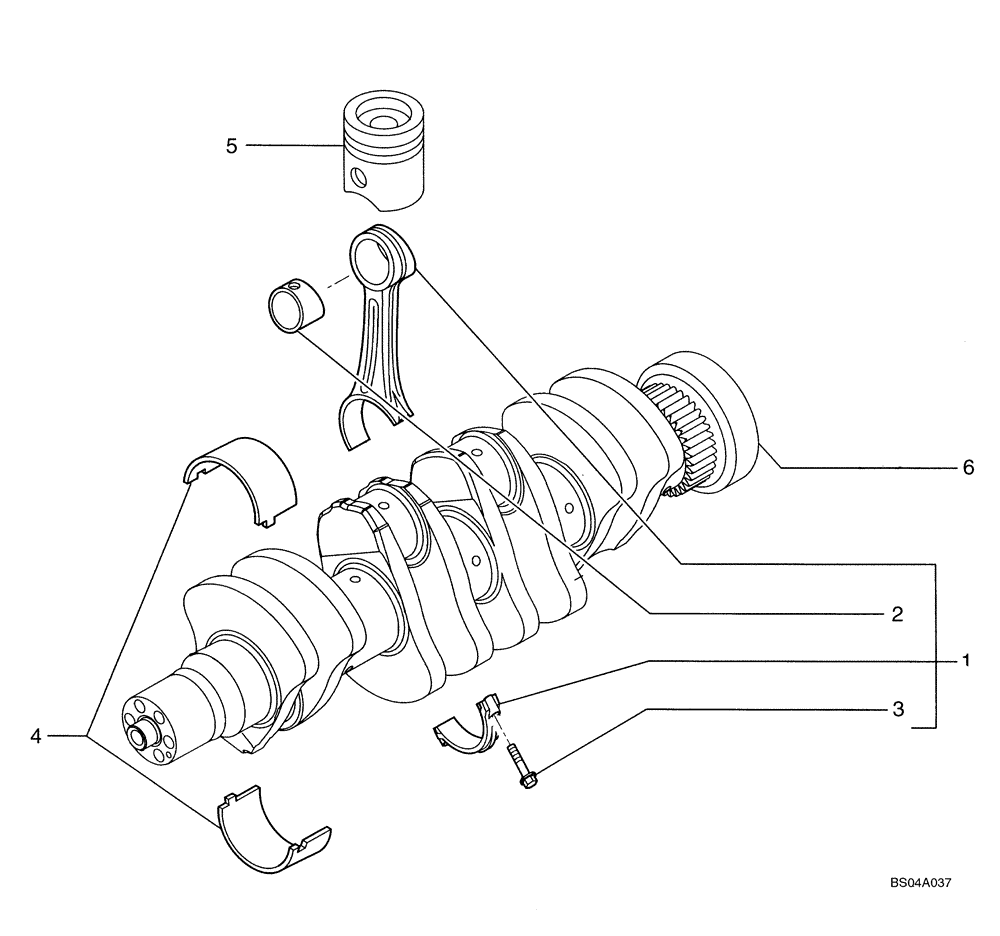

Запчасти Case 590SM (02-22) - PISTONS - CONNECTING ROD (02) - ENGINE

1

2831298

CONNECTING ROD

- ASSY; Incl. Ref 2, 3; Replaces 4895748

4шт.

2831298R

REMAN-CONNECTING ROD

590SM SERIES 2 (TIER 2) ( 2/04 - )

4шт.

2831298C

CORE-ROD CONNECTING

Return Number

1шт.

2

4892708

BUSHING,38.02mm ID x 41.01mm OD x 33.4mm L

1шт.

3

2831297

FLANGE BOLT,Hex, M10 x 1.25 x 52mm, Cl 10.9

Replaces 4892707

2шт.

4

8093882

BEARING SET

Standard

4шт.

4

8094960

BEARING SET,(-0.250)

.025 mm oversize

4шт.

4

8094961

BEARING SET,(-0.500)

.050 mm oversize

4шт.

5

NS

NOT SERVICED

PISTON; See Figure 02-23

1шт.

6

NS

NOT SERVICED

CRANKSHAFT; See Figure 02-21

1шт.
