Артикул
Название
Примечание
Количество

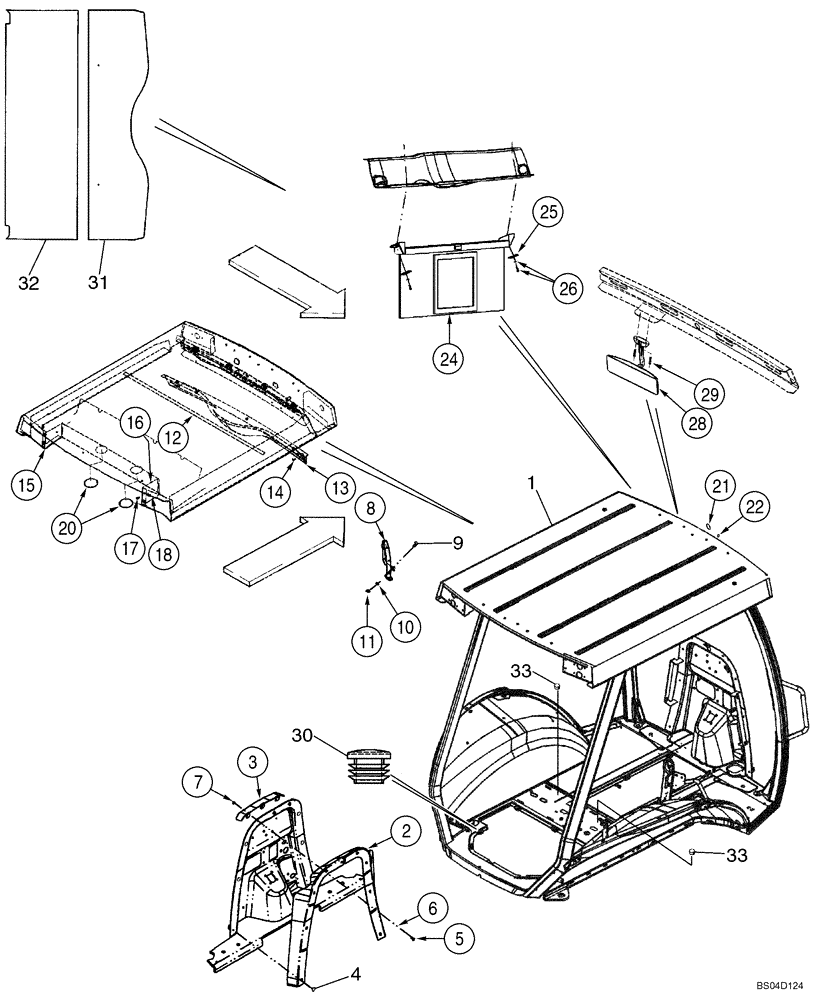

87443437
CANOPY
ASSEMBLY, Includes Frame, Glass, Wiper and Roof Foam Panels; Replaces 87434984 Canopy Assembly
1шт.
1
87449826
ROPS
ASSEMBLY FRAME, Canopy Frame; Order From Machinery Price List; Replaces 87434975, 87443435 Frame
1шт.
2
396938A3
MOLDING
Firewall
1шт.
3
395478A3
BRACKET
1шт.
4
D143242
PLUG,7.1mm Dia Shank x 25.4mm OD Head x 23.1mm L
Push-In Fastener
6шт.
5
614-8020
BOLT,Hex, M8 x 1.25 x 20mm
3шт.
6
495-81001
WASHER,5/16"
3шт.
7
832-10408
NUT,M8 x 1.25, Cl 8.8
3шт.
8
87627072
GRAB RAIL
Replaces 392930A1
1шт.
9
87310177
BOLT,Round Head, M10 x 25, Cl 8.8
M10 x 25; 8.8, Round Head Square Neck, Stainless Steel; Replaces 811-10025 Non-Stainless Steel Screw Used On Some Models
2шт.
10
495-81267
WASHER,.469" x 1 1/2" x .134"
2шт.
11
832-10410
NUT,M10 x 1.5, Cl 8
2шт.
12
385506A1
PROTECTION STRIP
127 mm; Foam; Adhesive Back
1шт.
13
367712A3
COVER
Harness
1шт.
14
F64519
SELF-TAP SCREW,Cross Wash Hd, #10-16 x 3/4"
For Service, Order 265-16512, F64315
5шт.
15
357099A1
COVER
Left-Hand
1шт.
16
357100A1
COVER
Right-Hand
1шт.
17
87310098
BOLT,M6 x 20 Full SST BLO
Flange, M6 x 20, Stainless Steel; Replaces 555-2 Non-Stainless Steel Screw Used On Some Models
4шт.
18
833-40406
NUT,M6, U
4шт.
20
1302758C1
PLUG
3 in
2шт.
353-410
PLUG,Dome, .875" hole, Nylon
1шт.
21
411549A1
PLUG
1 in; Windshield Frame
1шт.
22
353-421
PLUG,Dome, .187" hole, Nylon
Upper Windshield Frame
2шт.
24
364180A1
VISOR, SUN
1шт.
25
409618A1
PLATE
1/4 in Mounting Hole
2шт.
26
396516A1
SCREW,POINTED
No 10 x 1 st; With Washer; Phillips
2шт.
28
87406924
REAR VIEW MIRROR
1шт.
29
286-56520
SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"
2шт.
30
382298A1
PLUG
7/8 in
2шт.
31
431583A1
PANEL
Foam; Roof Front
1шт.
32
431584A1
PANEL
Foam: Roof Rear
1шт.
33
353-413
PLUG,Dome, 1.187" hole, Nylon
Brake Bleeder; Replaces 87301515 Black Glossy, 1-3/16 Hole Size Plug Used On Some Mode
2шт.
Выбрано товаров: 32
