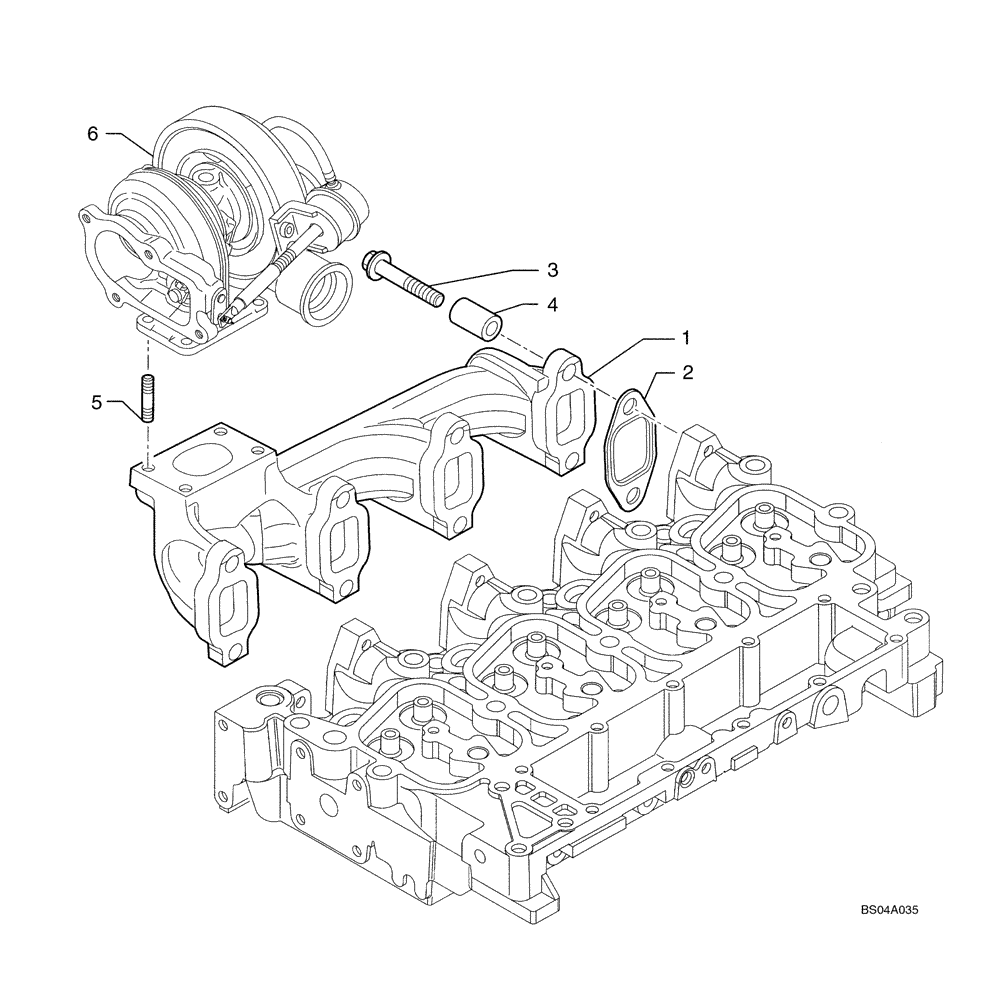

Запчасти Case 590SM (02-20) - MANIFOLD - EXHAUST (02) - ENGINE

1

2831203

EXHAUST MANIFOLD

1шт.

2

2830445

MANIFOLD GASKET

4шт.

3

2852744

SCREW,Flng, M10 x 1.5 x 65mm

Original Equipment Engine

8шт.

3

2852834

SCREW,Hex Flg, M10 x 1.5 x 40mm

M10 x 1.5 x 40; Replacement Engine (If Equipped)

8шт.

4

2831209

SPACER

8шт.

5

4899859

STUD,M8 x 37

Replaces 4899119

4шт.

6

NS

NOT SERVICED

TURBOCHARGER; See Figure 2-29

1шт.
