Артикул
Название
Примечание
Количество

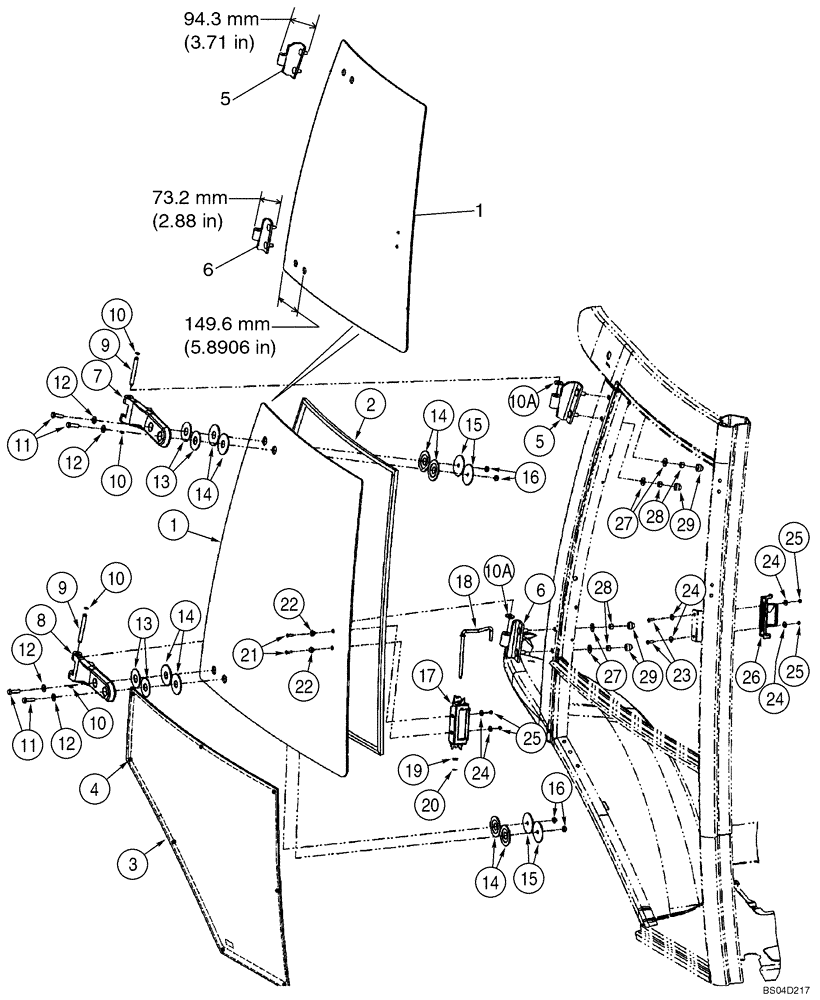

341746A2
WINDOW ASSY
Right-Hand; Incl. Ref 1 - 29
1шт.
1
360046A1
GLASS,CAB
Upper; Distance From Edge to Second Hole 149.6 mm (5-57/64 in)
1шт.
2
394864A1
SEAL, GLASS,804.4mm L
1шт.
3
338428A1
GLASS
Lower
1шт.
4
391827A1
SPACER,11.1mm D
Cut Bumpers In Half For 8 Locations
4шт.
5
394701A1
HINGE
Upper (Hinge has 90 degree Bend - See SB for Details & next Figure)
1шт.
6
394702A1
HINGE
Lower (Hinge has 90 degree Bend - See SB for Details & next Figure)
1шт.
7
364134A2
HINGE,Pivot to 1st hole - 126.58mm; Window hole to hole - 65.14mm
Plastic; Upper
1шт.
8
364135A2
HINGE,Pivot to 1st hole - 123.36mm; Window hole to hole - 65.34mm
Plastic; Lower
1шт.
9
394865A1
PIN
2шт.
10
393330A1
SNAP RING
4шт.
10a
391845A1
WASHER,11.1mm ID x 25.4mm OD x 1.6mm Thk
Nylon
4шт.
11
514-633
BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd
4шт.
12
895-30107
WASHER,M8 x 20 x 2
4шт.
13
376334A1
WASHER,22mm ID x 55mm OD x 2.8mm Thk
Yellow
4шт.
14
376336A1
RUBBER WASHER
8шт.
15
376332A1
WASHER,9mm ID x 60mm OD x 3.4mm Thk
Black
4шт.
16
832-10508
NUT,M8 x 1.25, Cl 8
4шт.
17
368147A1
HANDLE
Slam Latch
1шт.
18
391849A1
ROD
Used With 100-39001 Ring; 391849A1 Rod No Longer Available, Order 87534372 Rod & 87534717 Push-On Nut
1шт.
19
906086R1
WASHER,8.4mm ID x 16mm OD x 1.6mm Thk
1шт.
20
87534717
PUSH-ON NUT,0.625" L
1шт.
21
140-107
SCREW,Pan HD, #10 - 24 x 3/4"
2шт.
23
142-103
SCREW,Phil Oval Hd, Csk, #10 - 24 x 3/4"
2шт.
24
195-81023
WASHER,5.94mm ID x 14.28mm OD x 1.25mm Thk
6шт.
25
F45165
SPECIAL NUT,#10-24
No. 10
4шт.
26
368146A1
LATCH
Slam Latch
1шт.
27
397064A1
SPECIAL WASHER
3/8 x 7/8 x 1/16 thk
4шт.
28
232-1446
NUT,3/8"-16, GC
4шт.
29
396841A1
CAP,3/8 Inch x 18.03mm L
4шт.
Выбрано товаров: 31
