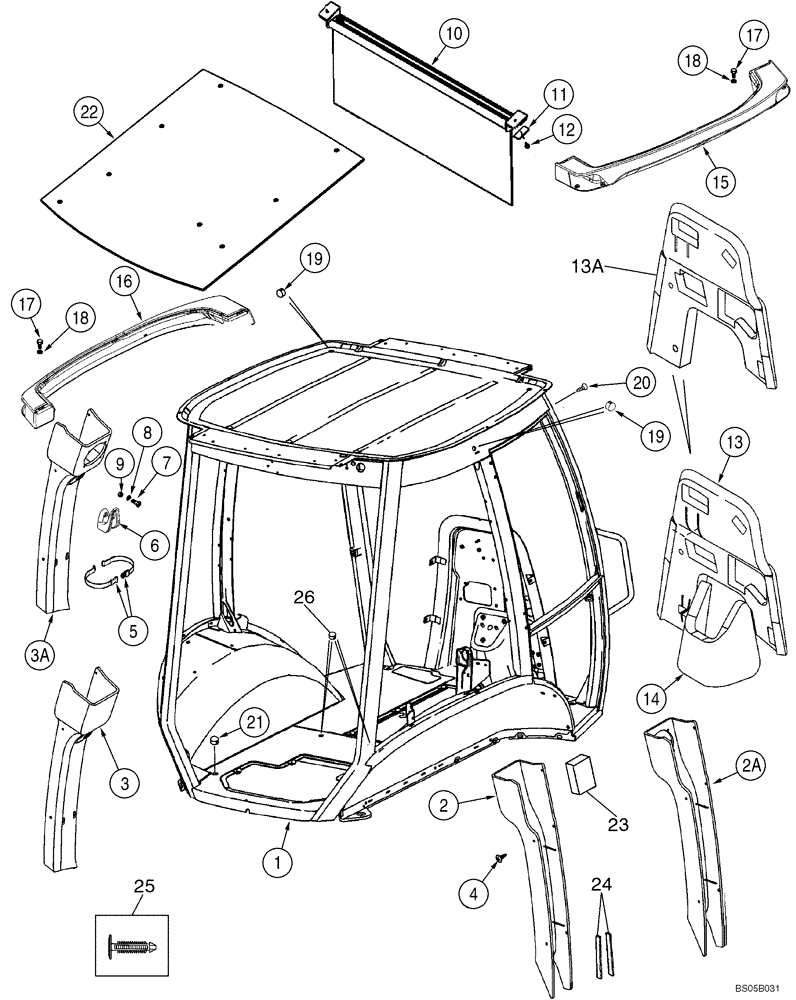

Запчасти Case 590SM (09-52) - CAB - FRAME AND COVERS (09) - CHASSIS/ATTACHMENTS

1

87435110

CAB FRAME

Single Door; Replaces 87407910

1шт.

1

87435112

CAB FRAME

Two Door; Replaces 87407911

1шт.

2

360267A3

COVER

Plastic; Right-Hand Post; Standard Interior

1шт.

2a

379425A3

COVER

Vinyl; With Speaker Holes; Right-Hand Post; Deluxe Interior

1шт.

3

360266A2

COVER

Plastic; Left-Hand Post; Standard Interior

1шт.

3a

379424A2

COVER

Vinyl; With Speaker Holes; Left-Hand Post; Deluxe Interior

1шт.

4

401949A1

FASTENER

10шт.

5

378227A1

STRAP,500mm L

Garment Strap

1шт.

6

114549A1

COAT HOOK

1шт.

7

87310147

SCREW,Pan Cross Recess Phillips, M4 x 0.7 x 16mm, Stainless

M4 x 16, Stainless Steel; Replaces 540-720 Non-Stainless Steel Screw Used On Some Models

2шт.

8

895-11004

WASHER,4.3mm ID x 9mm OD x 0.8mm Thk

(4.3 x 9 x 0.8 mm)

2шт.

9

832-10404

NUT,M4 x 0.7, Cl 8.8

2шт.

10

364180A1

VISOR, SUN

1шт.

11

409618A1

PLATE

1/4 in Mounting Hole

2шт.

12

396516A1

SCREW,POINTED

No. 10 x 1; With Washer; Phillips

3шт.

13

87440282

PROTECTIVE COVER

Firewall; If Used

1шт.

13a

87451021

PROTECTIVE COVER

Firewall; If Used

1шт.

14

87440283

COVER

Firewall, Lower

1шт.

15

360247A3

HOUSING

RH

1шт.

16

360246A3

HOUSING

LH

1шт.

17

84270430

SCREW,Torx, Truss HD, M6 x 1 x 20mm

M6 x 20; Replaces 394863A1

10шт.

17

833-40406

NUT,M6, U

(Not Shown)

10шт.

18

395387A1

SEALING WASHER,6.4mm ID x 22.3mm OD x 1.6mm Thk

6.4 ID; Nylon

10шт.

19

395388A1

PLUG

3шт.

353-415

PLUG,Dome, 1.500" hole, Nylon

Cab Roof; Models Without Radio Antenna

1шт.

353-410

PLUG,Dome, .875" hole, Nylon

Upper Windshield Frame; Models without Radio Antenna

1шт.

353-407

PLUG,Dome, .687" hole, Nylon

Rear Filter Plate on Models without Windshield Washer

1шт.

353-425

PLUG,0.437 Hole OD

7/16 in dia

2шт.

353-421

PLUG,Dome, .187" hole, Nylon

1шт.

353-405

PLUG,Dome, .562" hole, Nylon

9/16

1шт.

353-408

PLUG,Dome, .750" hole, Nylon

1шт.

20

402610A1

FASTENER

Cab Frame; Models Without Exterior Mirrors

8шт.

21

382298A1

PLUG

2шт.

22

368809A1

INSULATOR

Insulation

1шт.

23

412285A1

STRIP

Foam; Adhesive Back; B-Post

1шт.

24

414939A1

SEAL,200mm L

Adhesive Back; B Post

2шт.

25

411399A1

FASTENER

For 1/4 in dia Hole; Christmas Tree Clip

1шт.

26

D140267

PLUG,30.16mm OD

1-3/16 Hole Size; Brake Bleeder; Replaces 87301515 Black Glossy, 1-3/16 Hole Size Plug Used On Some Models

2шт.
