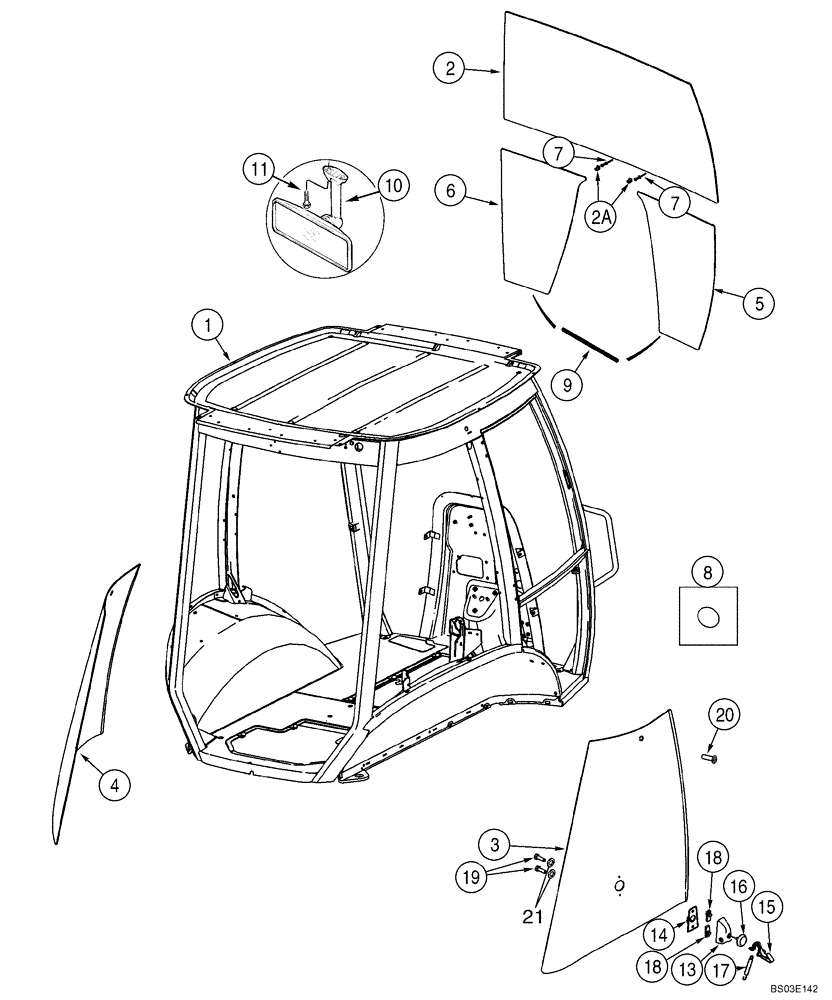

Запчасти Case 590SM (09-51) - CAB - GLASS, MIRROR AND HOLD OPEN (09) - CHASSIS/ATTACHMENTS

1

87443432

CAB

Single Door; Includes Frame, Left-Hand Door, 341746A2 Right-Hand Window on Figure 09-55, All Glass, Front and Rear Wipers and Exterior Lamps; Order From Machinery Price List; Replaces 87434981 Cab/A; No Longer Available, Order 87448274 Cab/A

1шт.

1

87448274

CAB

Single Door; Includes Frame, Left-Hand Door, 87442204 Right-Hand Window on Figure 09-55A, All Glass, Front and Rear Wipers and Exterior Lamps; Order From Machinery Price List

1шт.

1

87443433

CAB

Two Door; Includes Frame, Left-Hand Door, 394585A3 Right-Hand Door on Figure 09-53, All Glass, Front and Rear Wipers and Exterior Lamps; Order From Machinery Price List; Replaces 87434982 Cab/A; No Longer Available, Order 87448275 Cab/A

1шт.

1

87448275

CAB

Two Door; Includes Frame, Left-Hand Door, 87439726 Right-Hand Door on Figure 09-53A, All Glass, Front and Rear Wipers and Exterior Lamps; Order From Machinery Price List

1шт.

2

448607A1

GLASS

1шт.

2a

279482A1

CLAMP

Windshield

2шт.

3

338425A1

CAB GLASS ASSY,RH, Rear Qtr

Right Rear Quarter Panel

1шт.

4

338424A1

CAB GLASS ASSY,LH, Rear Qtr

Left Rear Quarter Panel

1шт.

5

448609A1

GLASS

Lower Right-Hand

1шт.

6

448608A1

CAB GLASS ASSY

Lower Left-Hand

1шт.

7

151-516

RIVET,Pop, 1/8" x .775"

2шт.

8

391827A1

SPACER,11.1mm D

36шт.

9

395793A1

PROTECTION STRIP

2шт.

10

87406924

REAR VIEW MIRROR

Interior

1шт.

11

286-56520

SELF-TAP SCREW,Cross Fil Hd, #10-24 x 1 1/4"

2шт.

13

405740A1

COVER

2шт.

14

405739A1

LATCH

2шт.

15

405738A1

LEVER

Hold Open

2шт.

16

400573A1

GROMMET

2шт.

17

405741A1

COIL SPRING

Latch Back

2шт.

18

405742A1

NUT

M8

4шт.

19

400572A1

BOLT

M8; Nylon

4шт.

20

400571A2

BUMPER

2шт.

21

431801A1

WASHER,8.33mm ID x 19.05mm OD x 3mm Thk

Black Nylon

4шт.
