Артикул
Название
Примечание
Количество

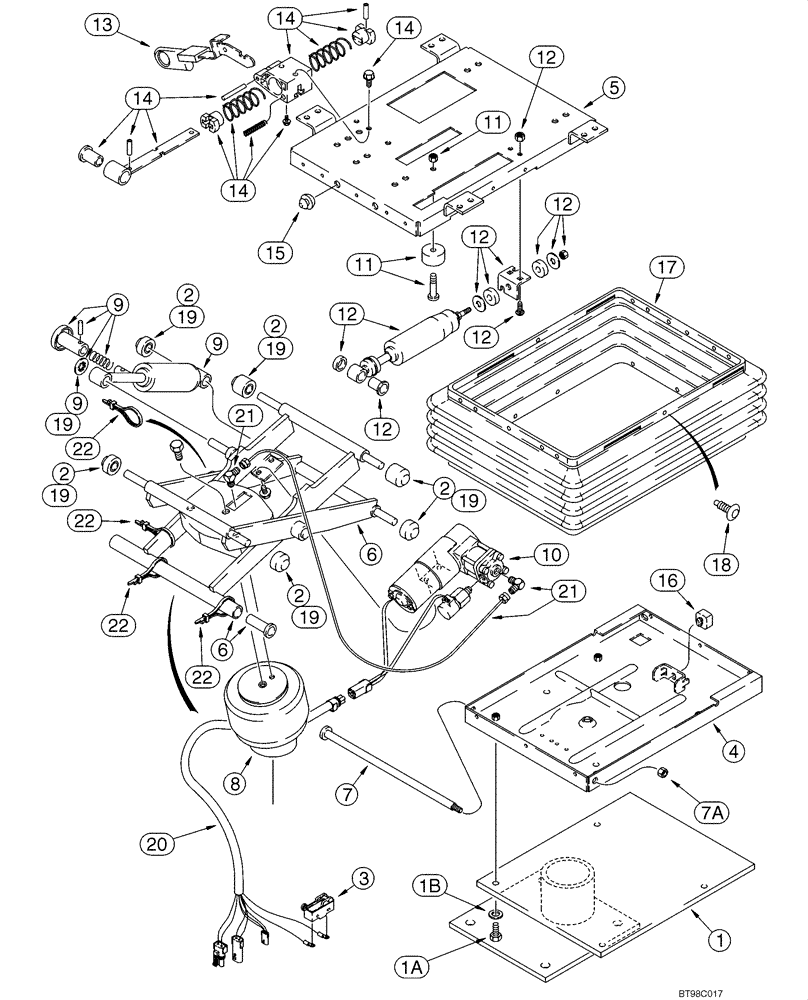

397137A1
SEAT ASSY.
Air Suspension Seat, Cloth, With Armrests, Incl. Ref 1 - 22; Also Includes Parts On Figure 09-49
1шт.
1
300669A1
PEDESTAL
Support, Base
1шт.
1a
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
4шт.
1b
NSS
NOT SOLD SEPARAT
Washer
2шт.
300685A1
KIT
Air Suspension Assembly, Includes Parts From Upper To Lower Housing Plates, Incl. Ref 2 - 16, 18 - 22, Includes all items shown except for the boot and pedestal, Ref 1 and 17
1шт.
2
135512A3
PACKAGE
Roller Bearing, Isolator, Includes (4) Narrow Rollers, (2) Wide Rollers, (1) Bushing, (1) Spacer, (1) Retaining Ring, Isolator
1шт.
3
D137363
SWITCH
Contact, Swivel Limit Switch
1шт.
4
226560A1
HOUSING
Lower, With Upper Stop Bracket
1шт.
5
300688A1
HOUSING
Upper
1шт.
6
132862A1
DIPPER
Arm, Suspension
1шт.
7
143786A1
SHAFT,308.9mm L
1шт.
7a
230-4216
LOCK NUT,3/8"-16, GA
1шт.
8
197793A1
SPRING
Air Spring, Includes Air Spring, J-Clip and (3) Ties
1шт.
9
132866A1
SHOCK ABSORBER
Kit, Includes Shock, (2) Bearings, Fastener, Actuator Arm, Roll Pin, Bracket and Retaining Ring
1шт.
132864A1
KIT
Kit, Compressor/Valve, Includes Compressor, Valve, Mount, Air Line Tubing, (2) Screws, (2) Sleeves and (2) Nuts, Includes 300689A1, 300690A1
1шт.
10
300689A1
KIT
Compressor/Valve
1шт.
300690A1
MOUNTING PARTS
Compressor
1шт.
11
180593A1
KIT
Bumper, Includes 231-1444, 340-12520
1шт.
231-1444
NUT,1/4"-20, GB
2шт.
340-12520
SCREW,Cross Pan Hd, 1/4"-20 x 1 1/4"
2шт.
12
300691A1
SPARE PART SET
Fore/Aft Isolator Latch, Includes Shock Absorber, (3) Nuts, (2) Washers, (2) Grommets, (1) Bearing and (15) Clips
1шт.
13
1981850C1
GRIP
Knob, Isolator Control, Fore/Aft
1шт.
14
300692A1
SPARE PART SET
Fore/Aft Isolator Latch, Includes Latch Assy and (2) Screws
1шт.
15
133422A1
BUMPER
Rubber
2шт.
16
A45054
BUMPER,Neoprene
Seat
1шт.
17
133421A1
PACKAGE
Boot, With Pins
1шт.
18
132872A1
KIT
Boot Pin, Package of 23 Retainers and (3) Dome Nuts
1шт.
19
180594A3
KIT
Rollers and Bearings, Includes (2) Bushings, (6) Rollers, (1) Push Nut, (5) Bearings and (2) Spacers, Includes 131-425 Nut
1шт.
131-425
PUSH-ON NUT,Push, 1/2"
1шт.
20
300896A1
HARNESS
1шт.
21
1990548C4
KIT
Air Line and Fittings, Includes (2) Elbows, (1) Tee, (2) Adapters, 3.5 Feet Nylon Tubing, (5) Ties and (1) J-Clip, Incl. Ref 22
1шт.
22
L18337
CABLE TIE,9.95"-12.1" lg
CABLE STRAP 15 in
4шт.
Выбрано товаров: 32
