(09-45) - SEAT ASSY, STANDARD (MILSCO)

Запчасти Case 590SM (09-45) - SEAT ASSY, STANDARD (MILSCO) (09) - CHASSIS/ATTACHMENTS

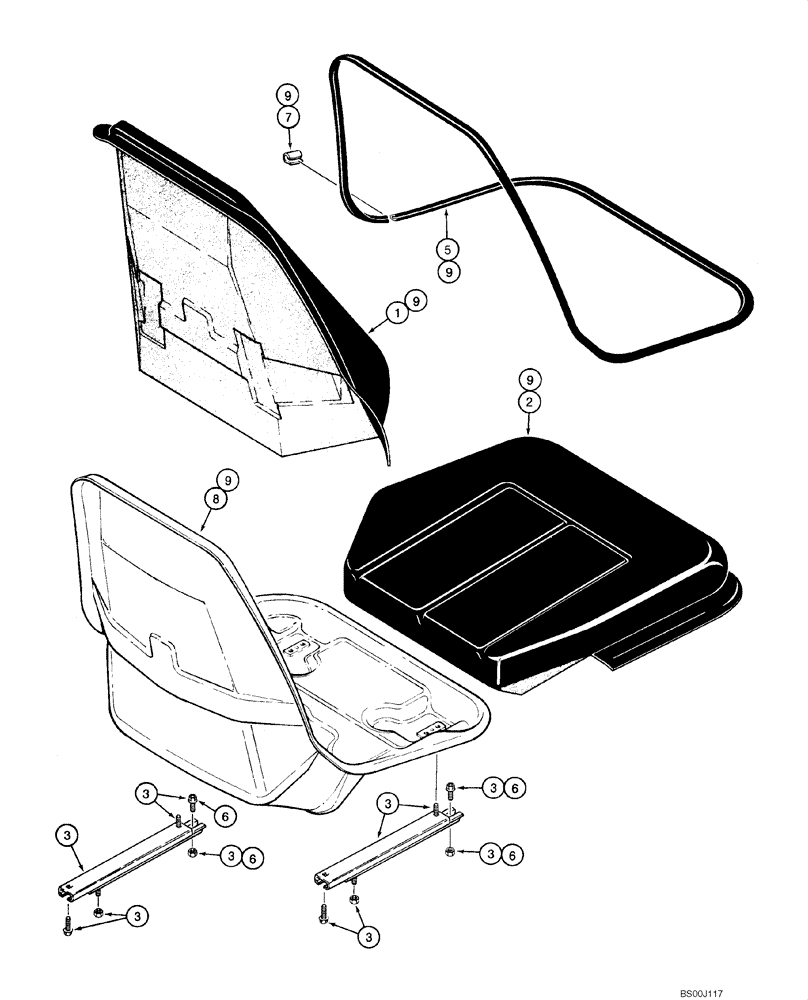

Схема запчастей Case 590SM - (09-45) - SEAT ASSY, STANDARD (MILSCO) (09) - CHASSIS/ATTACHMENTS
2
3
3
3
8
3
6
6
9
9
3
3
9
7
3
9
6
9
3
5
1
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

397132A1

SEAT ASSY.

Vinyl, Standard Seat; Incl. Ref 1 - 9; Also Includes Parts On Figure 09-46

1шт.

1

NSS

NOT SOLD SEPARAT

Cushion, Backrest; Order 406700A1 Cushion Assy, Ref 9

1шт.

2

NSS

NOT SOLD SEPARAT

Cushion, Seat; Order 406700A1 Cushion Assy, Ref 9

1шт.

3

399777A1

KIT

Seat Slide Adjusters

1шт.

5

176924A1

SET OF PARTS

Trim

1шт.

6

181169A1

KIT

Cable, Fore-Aft/Swivel Mechanism, For Cable, See Figure 09-46

1шт.

7

NSS

NOT SOLD SEPARAT

Clip, Order N7802 Clip Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Shell, Seat Frame, Order 406700A1 Cushion Assy, Ref 9

1шт.

9

406700A1

CUSHION ASSY.

Seat Shell, Cushions, and Trim, Incl. Ref 1, 2, 5, 8

1шт.

N7802

CLIP

Clip, Incl. Ref 7 Clip, Plus 6 Additional Narrow Clips

1шт.
