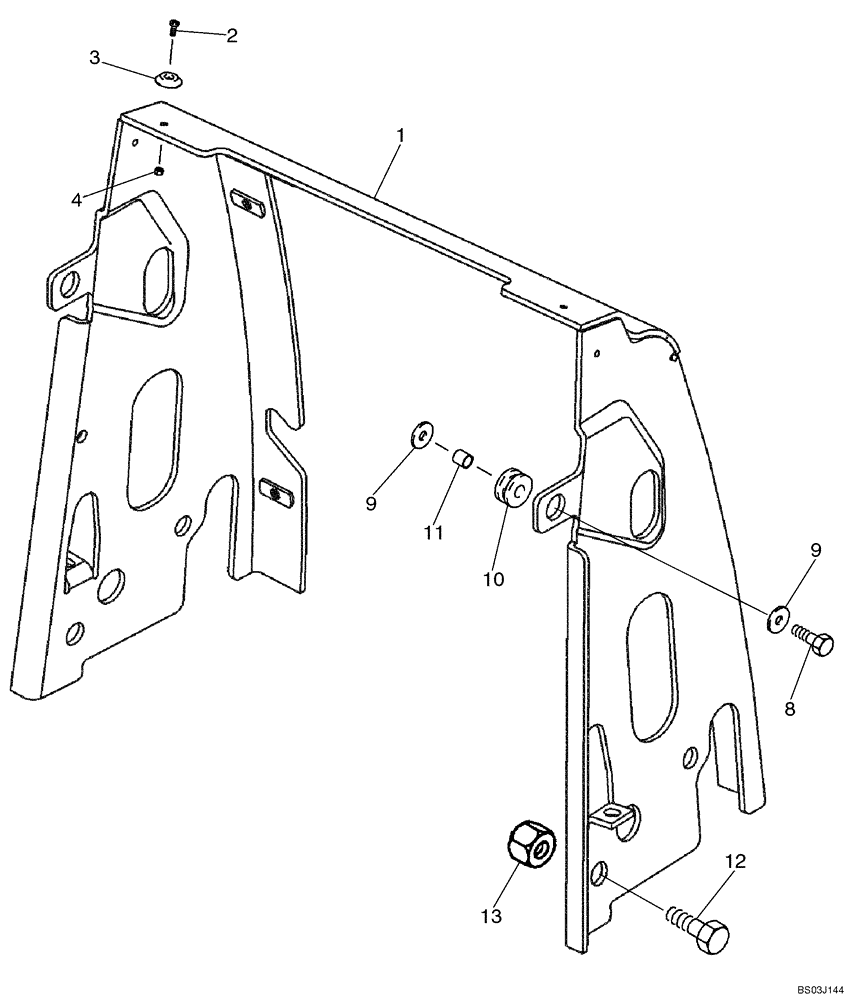

Запчасти Case 590SM (09-37) - RADIATOR WRAPPER (09) - CHASSIS/ATTACHMENTS

1

87433659

PLATE ASSY.

1шт.

2

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

2-4шт.

3

109879A1

SPACER,5.5mm ID x 30mm OD

Hood; Plastic

2-4шт.

4

86625057

NUT,#10-24, GB

2-4шт.

8

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

9

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

Flat, 10 mm

4шт.

10

86982682

GROMMET

Rubber

2шт.

11

D76209

SPACER

2шт.

12

614-20030

BOLT,Hex, M20 x 2.5 x 30mm, Cl 8.8, Full Thd

4шт.

13

829-1420

NUT,M20, Cl 10

4шт.
