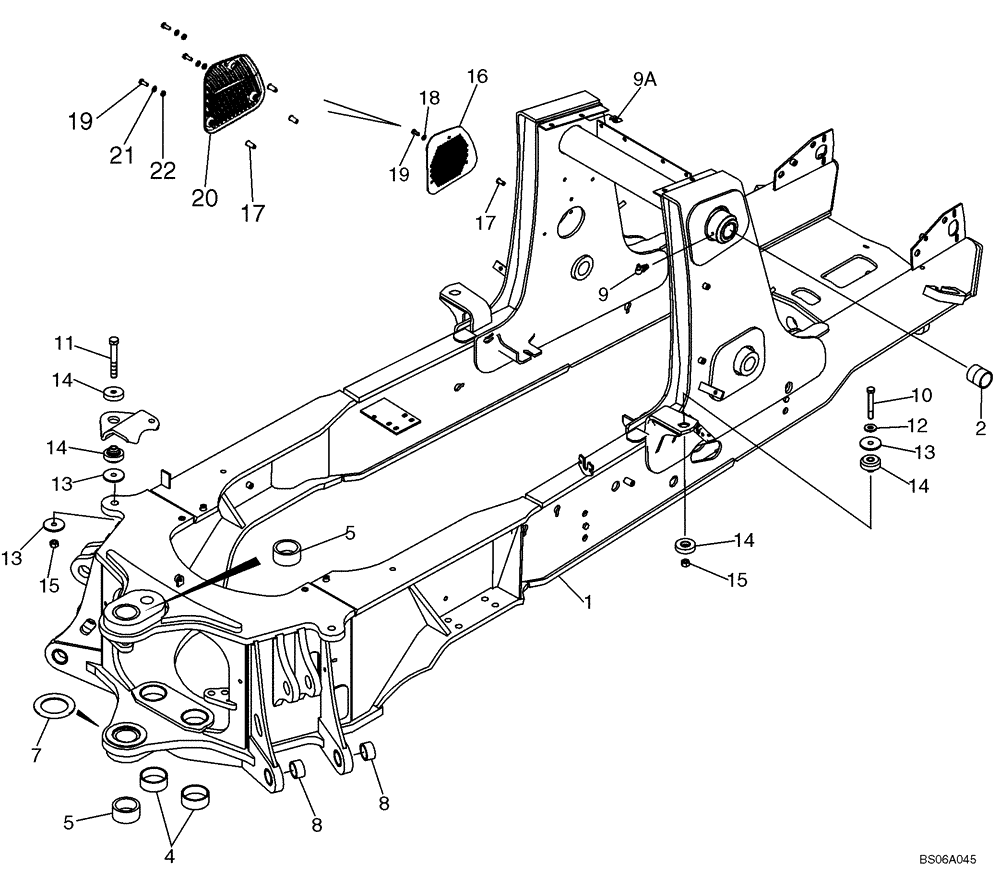

Запчасти Case 590SM (09-35) - CHASSIS / MOUNTS, POD - SCREEN, AIR INLET (09) - CHASSIS/ATTACHMENTS

1

87325394

CHASSIS

Incl. Ref 2 - 8; Replaces 87423005

1шт.

2

180427A1

BUSHING,50.23mm ID x 60mm OD x 52.4mm L

2шт.

4

114318A1

BUSHING,80.19mm ID x 90mm OD x 29.35mm L

80 x 5 x 28.8

2шт.

5

D151058

BUSHING,70.19mm ID x 90mm OD x 63mm L

70 x 10 x 32 mm

2шт.

7

220413A1

SPACER,93mm ID x 135mm OD x 5mm Thk

93 x 135 x 5 mm, Welded-On

1шт.

8

107124A1

BUSHING,44.75mm ID x 57.15mm OD x 29mm L

4шт.

9

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

2шт.

9a

833-40310

NUT,M10, U

4шт.

10

827-16085

BOLT,Hex, M16 x 2 x 85mm, Cl 10.9

2шт.

11

827-16100

BOLT,Hex, M16 x 2 x 100mm, Cl 10.9

2шт.

12

896-11016

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

13

186977A1

WASHER,17mm ID x 70mm OD x 4.5mm Thk

4,5 mm thick

6шт.

14

411892A1

RUBBER MOUNTING

M16; Operator Compartment Pod Mounts

4шт.

15

829-1416

NUT,M16, Cl 10

4шт.

16

87423668

SCREEN

Air Inlet, Steel, With Holes; If Used

1шт.

17

87417383

THREADED INSERT,M8 x 1.25

Nut, M8

3шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

If Used

3шт.

19

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

20

87324160

SCREEN

Air Inlet, Plastic, With Slots; If Used

1шт.

21

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

If Used

3шт.

22

87310109

SPACER

If Used

3шт.
