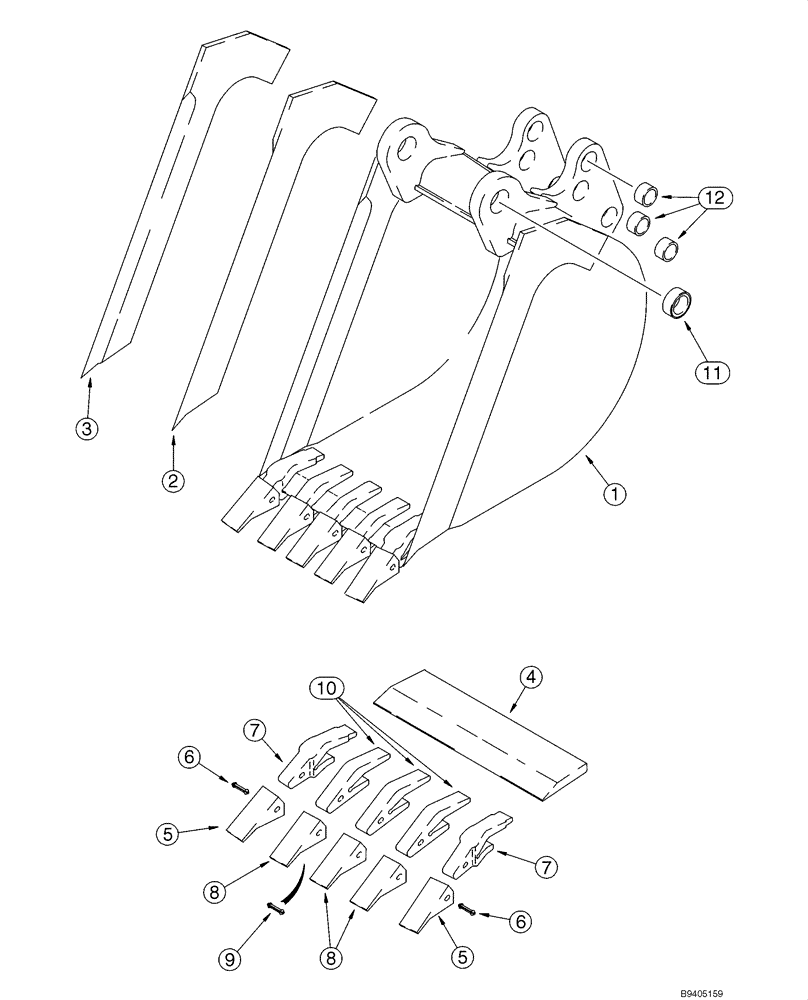

Запчасти Case 590SM (09-33) - BUCKET, UNIVERSAL BACKHOE (610 MM (24 INCH) / 762 MM (30 INCH) WIDE) (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
87724907
BUCKET
610 mm (24 in); With 5 Teeth; Order Through Parts Marketing; Incl. Ref 2 - 12; Replaces 141232A2
1шт.
2
141234A1
EDGE, CUTTING
Right-Hand
1шт.
3
141233A1
EDGE, CUTTING
Left-Hand
1шт.
4
D142012
EDGE, CUTTING,597mm W x 165.1mm L
1шт.
D139851
BUCKET TOOTH
Outer; Incl. Ref 5 - 7
2шт.
5
D51750
BUCKET TOOTH POINT
1шт.
6
245466A1
RETAINER,Flexpin, Bucket Tooth
1шт.
7
D138157
SHANK
1шт.
D139849
BUCKET TOOTH
Center; Incl. Ref 8 - 10; Order Ref 8 - 10
3шт.
8
D51750
BUCKET TOOTH POINT
1шт.
9
245466A1
RETAINER,Flexpin, Bucket Tooth
1шт.
10
D48212
SHANK
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
6шт.
1
87724909
BUCKET
762 mm (30 in); With 5 Teeth; Not Illustrated; Order Through Parts Marketing; Incl. Ref 2 - 12; Replaces 190267A2
1шт.
2
141234A1
EDGE, CUTTING
Right-Hand
1шт.
3
141233A1
EDGE, CUTTING
Left-Hand
1шт.
4
D145061
EDGE, CUTTING
1шт.
D139851
BUCKET TOOTH
Outer; Incl. Ref 5 - 7
2шт.
5
D51750
BUCKET TOOTH POINT
1шт.
6
245466A1
RETAINER,Flexpin, Bucket Tooth
1шт.
7
D138157
SHANK
1шт.
D139849
BUCKET TOOTH
Center; Incl. Ref 8 - 10; Order Ref 8 - 10
3шт.
8
D51750
BUCKET TOOTH POINT
1шт.
9
245466A1
RETAINER,Flexpin, Bucket Tooth
1шт.
10
D48212
SHANK
1шт.
11
D37495
BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L
2шт.
12
D30933
BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L
6шт.
