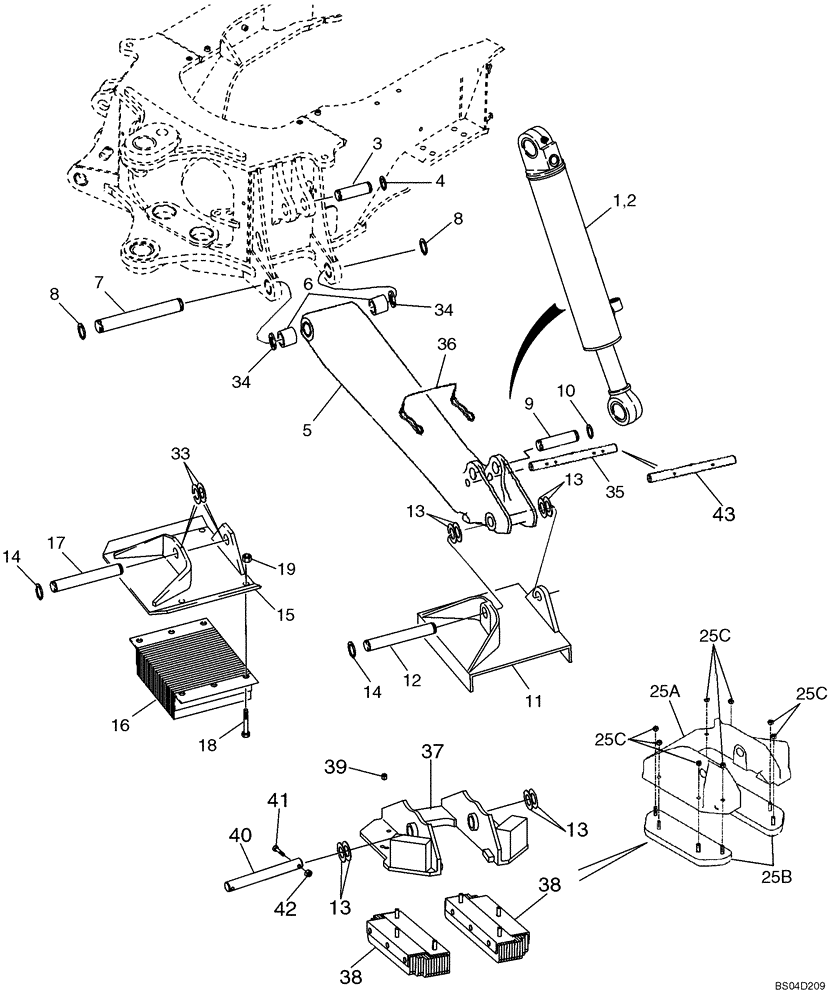

Запчасти Case 590SM (09-21) - BACKHOE - STABILIZERS, PLATES AND PADS (09) - CHASSIS/ATTACHMENTS

1

177256A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

127 ID x 519 mm strk; Stabilizer; RH; See Figure 08-65

1шт.

1

177256A1R

REMAN-HYD CYLINDER

590SM Series 2, w/ Tier 2 Engine

1шт.

1

177256A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

177257A1

HYDRAULIC CYLINDER,Double Acting, 57.2mm Rod, 519.4mm Stroke

127 ID x 519 mm strk; Stabilizer; LH; See Figure 08-65

1шт.

2

177257A1R

REMAN-HYD CYLINDER

590SM Series 2, w/Tier 2 Engine

1шт.

2

177257A1C

CORE-HYD CYLINDER

Return Number

1шт.

3

D38907

PIN,1.75" OD x 5 5/16 L

Stabilizer Cylinder to Chassis

2шт.

4

103-16175

SNAP RING,#175, Ext

4шт.

5

446220A1

STABILIZER

1307 mm (51-7/16 in); Incl. Ref 6

2шт.

6

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

2шт.

7

121665A1

PIN,44.4mm OD x 308mm L

Stabilizer Leg to Chassis

2шт.

8

103-16175

SNAP RING,#175, Ext

4шт.

9

R26725

PIN,152.4mm OD x 44.45mm L

Stabilizer Cylinder, W/O Lube Fitting

2шт.

9

47857124

PIN,44.4mm OD x 152.4mm L

W Lube Fitting

2шт.

9

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

10

D25279

SNAP RING,M35, Int

4шт.

11

87456199

PAD

Plate; Cleated, Tan; If Used; Replaces D88427 Unpainted Plate

2шт.

12

D28648

PIN,1.5" OD x 10 7/16" L

Plate/Pad to Leg

2шт.

13

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

Used as a Spacer

1шт.

14

D25279

SNAP RING,M35, Int

4шт.

15

87389813

PAD

Street or Cemetery; If Used; Replaces D142519 Shoe Without Bosses; Bosses Have Been Added To 87389813 Shoe

2шт.

16

D61368

PAD

Rubber; If used

2шт.

17

D39256

AXLE PIN,38.1mm OD x 238.13mm L

9-3/8 inch Long; Plate to Leg; For Use With D142519 or 87389813 Shoe Without Bosses

2шт.

17

D53812

PIVOT PIN,1.5" OD x 10.14" L

10-9/64 in Long; Plate to Leg; For Use With 87389813 Shoe With Bosses; Replaces D28648 10-7/16 in Long Pin Used On Some Models

2шт.

18

413-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 5

8шт.

19

425-1012

NUT,3/4"-10, G5

8шт.

25a

408399A1

PAD

PLATE, Anti-Flipover; No Longer Available, Order Ref 37 - 43

2шт.

25b

339680A2

PAD, RUBBER

Anti-Flipover; Used With 408399A1 Pad, Ref 25A

4шт.

25c

832-41312

NUT,M12 x 1.75, Cl 10

If used

16шт.

33

D143406

WASHER,38.23mm ID x 63.88mm OD x 2.9mm Thk

Used as a Spacer

1шт.

34

495-81282

WASHER,2 1/16" x 3" x .109"

Used as a Spacer

1шт.

35

408405A1

PIVOT PIN,25.4mm OD x 300mm L

Used With 408399A1 Pad, Ref 25A

2шт.

36

446454A1

PIN,4.5mm OD x 305mm L

Used With 408399A1 Pad or 400880A1 Pad

2шт.

37

400880A1

PAD

PLATE, Anti-Flipover

2шт.

38

395753A2

PAD, RUBBER

Used With 400880A1 Pad

4шт.

39

231-4247

LOCK NUT,7/16"-14, GB

12шт.

40

D149033

PIN,38.1mm OD x 323.5mm L

2шт.

41

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

42

230-4216

LOCK NUT,3/8"-16, GA

4шт.

43

87436783

PIVOT PIN,25.4mm OD x 300mm L

Anti-Flipover; Used With 400880A1 Plate, Ref 37

2шт.
