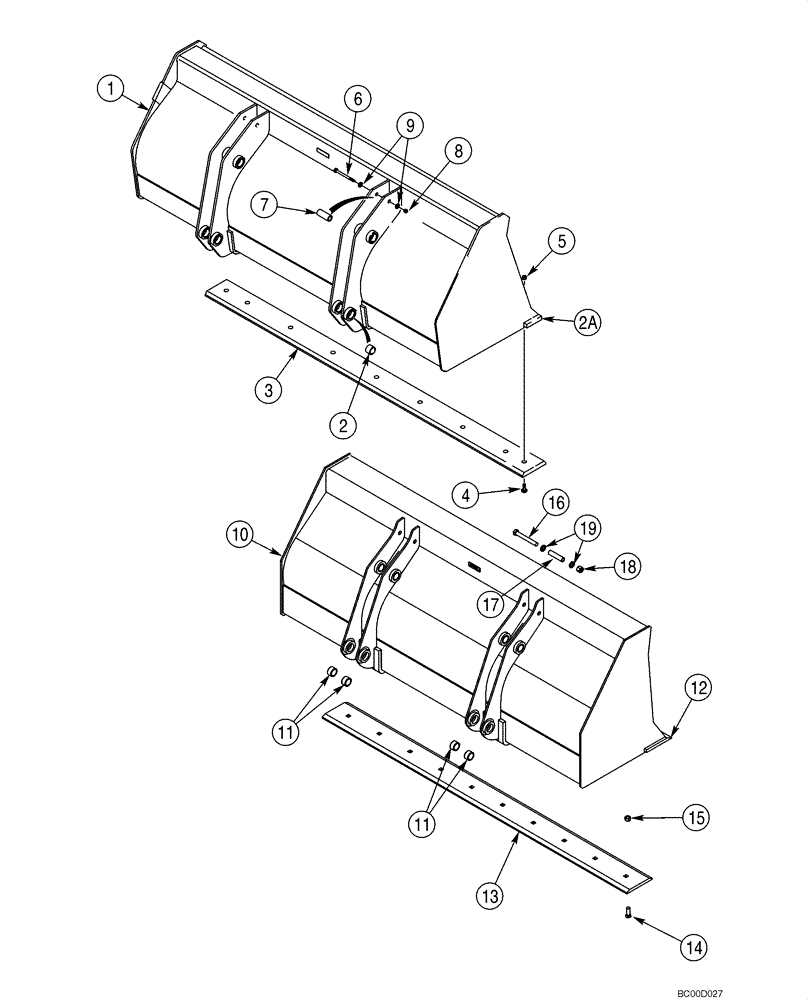

Запчасти Case 590SM (09-06) - BUCKETS, LOADER LONG LIP (93 IN / 96 IN) (09) - CHASSIS/ATTACHMENTS

87368706

BUCKET

ASSEMBLY, 2362 mm (93 in); Assembly Includes Bolt-On Cutting Edge; Without Bucket Teeth; Incl. Ref 1 - 9; Order Through Parts Marketing; Replaces 198539A1 or 87441060 Bucket

1шт.

1

NSS

NOT SOLD SEPARAT

Bucket; Incl. Ref 2, 2A

1шт.

2

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

2a

134844A1

CUTTING EDGE,Bolt On, 10 Holes, 12mm W x 2389mm L

Weld-On

1шт.

3

185506A1

CUTTING EDGE

Bolt-On, Tan; Replaces 87375240 Unpainted Cutting Edge

1шт.

4

20-21232

PLOW BOLT,#3, 3/4" - 10 x 2", Gr 8

10шт.

5

29-1012

NUT,3/4"-10, G8

Non-Plated; Replaces 429-1012 Plated Nut Used On Some Models

10шт.

6

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

7

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

2шт.

8

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

9

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.

87368705

BUCKET

ASSEMBLY, 2438 mm (96 in); Assembly Includes Bolt-On Cutting Edge; Without Bucket Teeth; Incl. Ref 10 - 19; Order Through Parts Marketing; Replaces 341130A2 or 87441061 Bucket

1шт.

10

NSS

NOT SOLD SEPARAT

Bucket; Incl. Ref 11, 12

1шт.

11

D129264

BUSHING,40.3mm ID x 50mm OD x 28mm L

8шт.

12

332448A1

PLATE

Weld-On

1шт.

13

87375241

EDGE,96 Inch / 2438mm, 10 Holes

Bolt-On Blade, Unpainted; replaces 332449A1 Tan Painted Blade Used On 87441061 Bucket; For Service Order 332449A1 Blade

1шт.

13

332449A1

CUTTING EDGE,96", 10 Hole

Bolt-On, Tan

1шт.

14

420-21236

CARRIAGE BOLT,#3, 3/4" - 10 x 2 1/4", Gr 8

10шт.

15

429-1012

NUT,3/4"-10, G8

10шт.

16

828-20160

BOLT,Hex, M20 x 2.5 x 160mm, Cl 10.9

2шт.

17

142538A1

SPACER,21mm ID x 25mm OD x 105mm L

2шт.

18

832-10420

NUT,M20 x 2.5, Cl 8

2шт.

19

896-11020

WASHER,22mm ID x 37mm OD x 4mm Thk

4шт.
