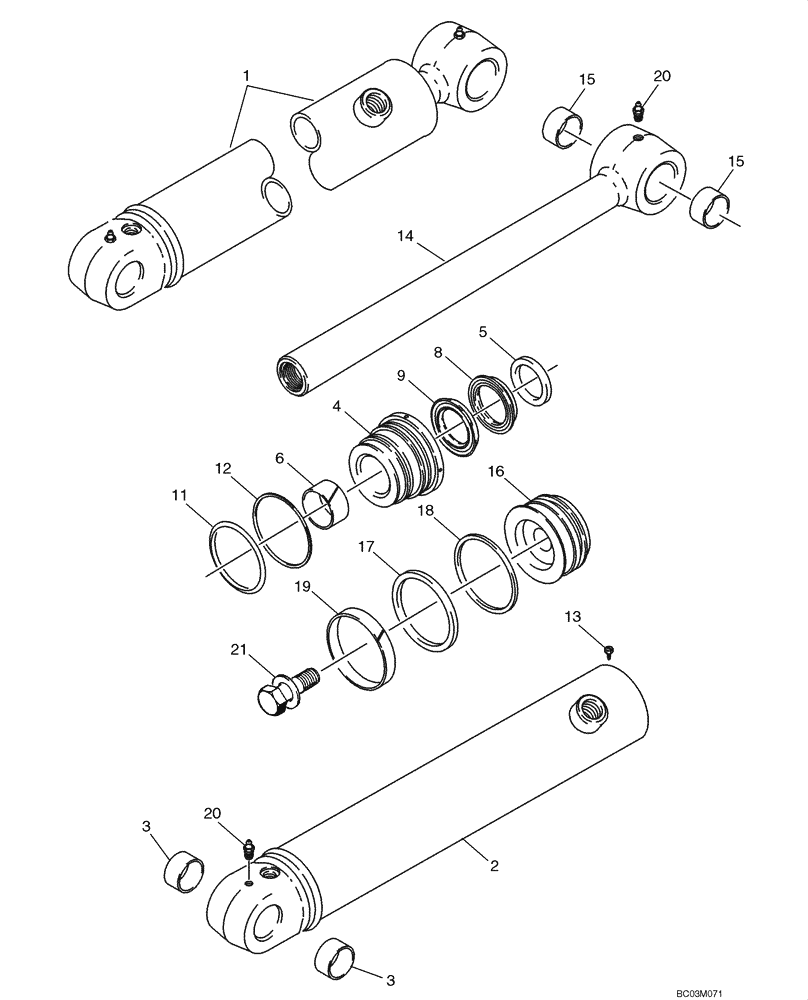

Запчасти Case 590SM (08-68) - CYLINDER ASSY - BACKHOE DIPPER (08) - HYDRAULICS

1

140965A1

CYLINDER,Double Acting, 69.8mm Rod, 564.2mm Stroke

140 ID x 564 mm strk; Incl. Ref 2 - 21

1шт.

1

140965A1R

REMAN-HYD CYLINDER

590SM Series 2, w/Tier 2 Engine

1шт.

1

140965A1C

CORE-HYD CYLINDER

Return Number

1шт.

2

141179A1

TUBE,139.5mm Rod

Incl. Ref 3

1шт.

3

1980371C1

BUSHING,70.18mm ID x 80mm OD x 41.3mm L

2шт.

4

1980369C2

CYLINDER END CAP

GLAND

1шт.

87367212

SEAL KIT

Incl. Ref 5 - 12, 17 - 19; Replaces 179011A1 Kit Used On Some Models

1шт.

5

D95147

WIPER SEAL,69.8mm ID x 82.58mm OD x 7.92mm Thk

1шт.

6

G102428

BEARING,2.75mm ID x 69.85mm OD x 37.85 W

1шт.

1542880C1

PACKAGE

Rod and Buffer Seal; Incl. Ref 8, 9; Not Serviced Separately; Order 87367212 Seal Kit

1шт.

8

NSS

NOT SOLD SEPARAT

Rod Seal; Order 87367212 Seal Kit

1шт.

9

NSS

NOT SOLD SEPARAT

Buffer Seal; Order 87367212 Seal Kit

1шт.

11

238-5251

O-RING,0.139" Thk x 5.109" ID, -251, Cl 5, 75 Duro

1шт.

12

G107971

RING

Backup

1шт.

13

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

1шт.

14

132976A1

ROD

70 mm (2-3/4 in) dia; Incl. Ref 15

1шт.

15

1980371C1

BUSHING,70.18mm ID x 80mm OD x 41.3mm L

2шт.

16

140967A2

PISTON

1шт.

17

87367210

SEAL

Service Replacement for Two Piece Seal and Expander Ring Used In Production; Replaces 1980401C1 Seal Used On Some Models

1шт.

18

140968A1

RING,134.22mm ID, Ext

1шт.

19

1980266C1

SEALING RING,133.4mm ID x 139.7mm OD x 18.9mm Thk

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

2шт.

21

86982444

SPECIAL BOLT,Hex, 12, 1 1/2 x 3.50"

1,5 x 3,5 lg; Incl. Washer

1шт.
