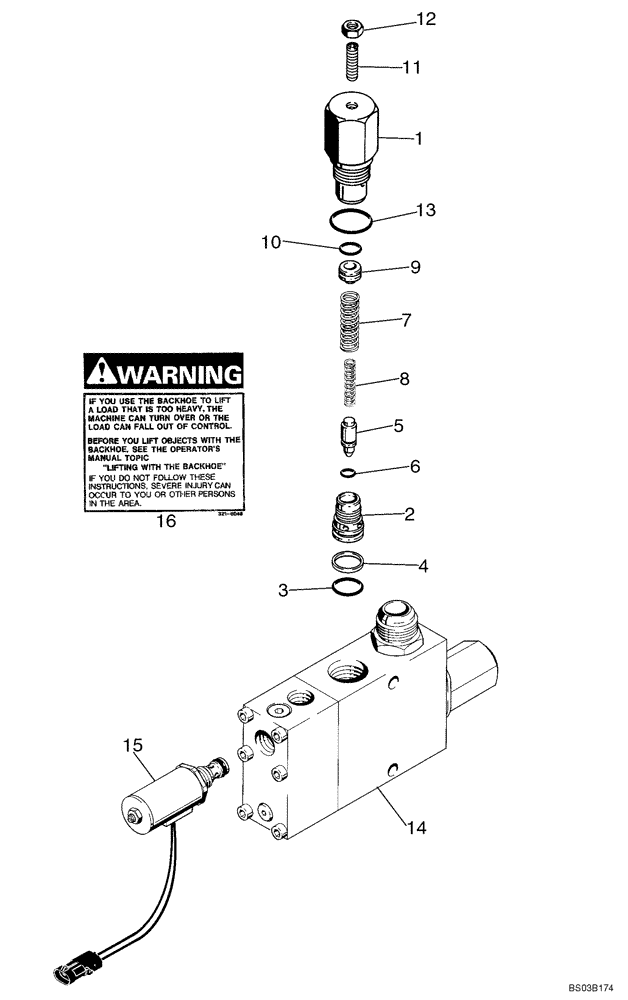

Запчасти Case 590SM (08-59A) - SOLENOID VALVE - BOOM LOCK (08) - HYDRAULICS

189957A1

VALVE

Solenoid, Backhoe Boom Lock; Incl. Ref 1 - 16; Included In 399225A1 Backhoe Boom Lock Kit

1шт.

G110467

VALVE, PRESSURE RELI

EF Circuit, Solenoid; Used In Production; Order G110077, Kit For Service

1шт.

1

NSS

NOT SOLD SEPARAT

Body, Relief Valve

1шт.

2

NSS

NOT SOLD SEPARAT

Seat, Relief Valve

1шт.

3

238-6018

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

Face Seal

1шт.

4

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

Backup, Seat

1шт.

5

NSS

NOT SOLD SEPARAT

Poppet

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

7

NSS

NOT SOLD SEPARAT

Spring, Relief, Outer

1шт.

8

NSS

NOT SOLD SEPARAT

Spring, Relief, Inner

1шт.

9

NSS

NOT SOLD SEPARAT

Piston

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

11

484-43120

SET SCREW,Hex Soc, 5/16"-24 x 1 1/4"

1шт.

12

425-155

JAM NUT,Jam, 5/16"-24, G5

1шт.

13

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

14

NSS

NOT SOLD SEPARAT

Body, Solenoid

1шт.

15

221168A1

SOLENOID VALVE

12 Volt; Relief, With Connector

1шт.

D150781

REPAIR KIT

Incl. (3) Springs, (1) Ball, (1) Poppet, (1) Plug; Not Serviced Separately; and D150810 Seal Kit, Not Shown

1шт.

D150810

SEAL

Kit, Incl. (8) O-Rings and (2) Backup Rings; Which Are Not Serviced Separately, Not Shown

1шт.

G110077

KIT

Service For G110467, Circuit Relief Valve; Incl. G110078, Circuit Relief Valve Assembly (Ref. 1 - 13) and Instruction Sheet

1шт.

16

321-6046

WARNING DECAL

If You Use The Backhoe To Lift A Load That Is Too Heavy

2шт.
