Запчасти Case 590SM (08-57) - VALVE, JOYSTICK (PILOT CONTROLS) (RIGHT-HAND) WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS

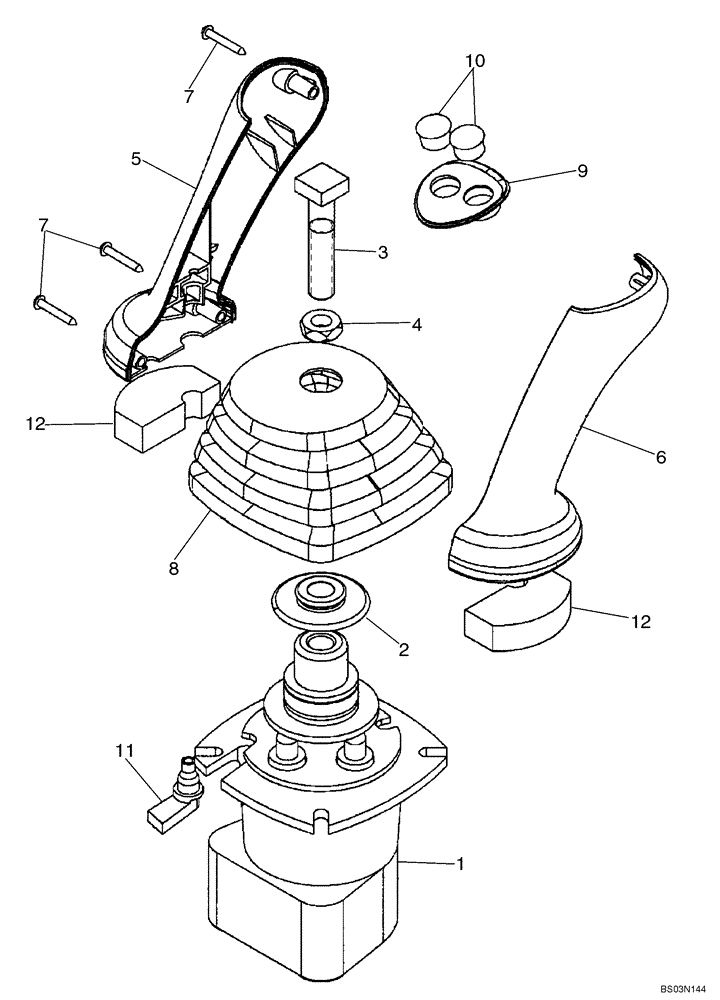

Схема запчастей Case 590SM - (08-57) - VALVE, JOYSTICK (PILOT CONTROLS) (RIGHT-HAND) WITHOUT EXTENDABLE DIPPER (08) - HYDRAULICS
11
3
2
7
8
12
7
12
9
5
6
4
1
10

Артикул

Название

Примечание

Количество

87308840

JOYSTICK

Pilot Controls, RH; Without Extendable Dipper; Includes 86983311 Base Valve; Incl. Ref 1, 2 - 12; Replaces 87443739; Part Number Stamped On Valve Base; No Longer Available, For Service Order 87388706; If Used

1шт.

1

86983311

CONTROL VALVE

Pilot Control Joystick Valve; Included in 87308840 Joystick Control Valve; Incl. 84127469, 84127480, 84127481; If Used

1шт.

1-1

84127469

KIT

Brass Guide (18mm OD x 35mm L) (2 Brass Guides per Kit)

2шт.

1-2

84127481

VALVE SECTION

4шт.

1-3

84127480

SPRING KIT

Set of 4 Return Springs

1шт.

87388706

JOYSTICK

Pilot Controls, RH; Without Extendable Dipper; Includes 87398960 Base Valve; Incl. Ref 1A, 2 - 12; Part Number Stamped On Valve Base; Replaces 87443739, 87308706; If Used

1шт.

1

87398960

PILOT VALVE

Pilot Control Joystick Valve; Included in 87388706 Joystick Control Valve; Incl. 87586760, 87586772, 87586773; If Used; Not Illustrated

1шт.

1-1

87586760

PLUNGER

Brass Guide

4шт.

1-2

87586772

PLATE

4шт.

1-3

87586773

KIT

Set of 4 Return Springs

1шт.

87685954

JOYSTICK

Pilot Controls, RH; Without Extendable Dipper; Includes 87687141 Base Valve; Incl. Ref 1B, 2 - 12; Part Number Stamped On Valve Base; If Used

1шт.

1

87687141

PILOT VALVE

Pilot Control Joystick Valve; Included in 87685954 Joystick Control Valve; Includes 87473380, 87586772, 87586773; If Used; Not Illustrated

1шт.

1

87687141R

REMAN-HYD VALVE

Pilot Control Joystick Valve; Included in 87685954 Joystick Control Valve; Includes 87473380, 87586772, 87586773; If Used; Not Illustrated

1шт.

1

87687141C

CORE-VALVE HYD

Core Return Number

1шт.

1-1

87473380

GUIDE

Plunger Assy, Guide (43mm OD x 22mm L)

4шт.

1-2

87586772

PLATE

Spring

4шт.

1-3

87586773

KIT

Set of 4 Return Springs

1шт.

2

87436225

RETAINER,12.5mm ID, 46mm OD

Control Boot

1шт.

3

87428023

BOLT,Square Head, M12 x 1.75 x 60

Square Head

1шт.

4

87037944

THIN NUT,Thin, M12 x 1.75, Cl 05

1шт.

5

87308838

HANDLE GRIP

Joystick Control Handle; Replaces 87428164

1шт.

6

87308839

HANDLE GRIP

Joystick Control Handle; Replaces 87428165

1шт.

7

15687475

SELF-TAP SCREW,Pan Hd, M3.5 x 25mm, SST

Replaces 87032819 Black Zinc Plated Screw, Which Is Used In Other Applications

3шт.

8

87443722

BOOT

Joystick Control

1шт.

9

87435242

BEZEL

Switch Mounting

1шт.

10

86625128

PLUG,Dome, .562" hole, Nylon

Replaces 353-405 Plug Which Is Used In Other Applications

2шт.

11

87451448

GROMMET

Wire; Replaces 87424267 Grommet, Which Is Used In Other Applications

1шт.

12

87435506

SEAL,52mmL

Pilot Control Handle Seal, Lower

2шт.

Выбрано товаров: 28
