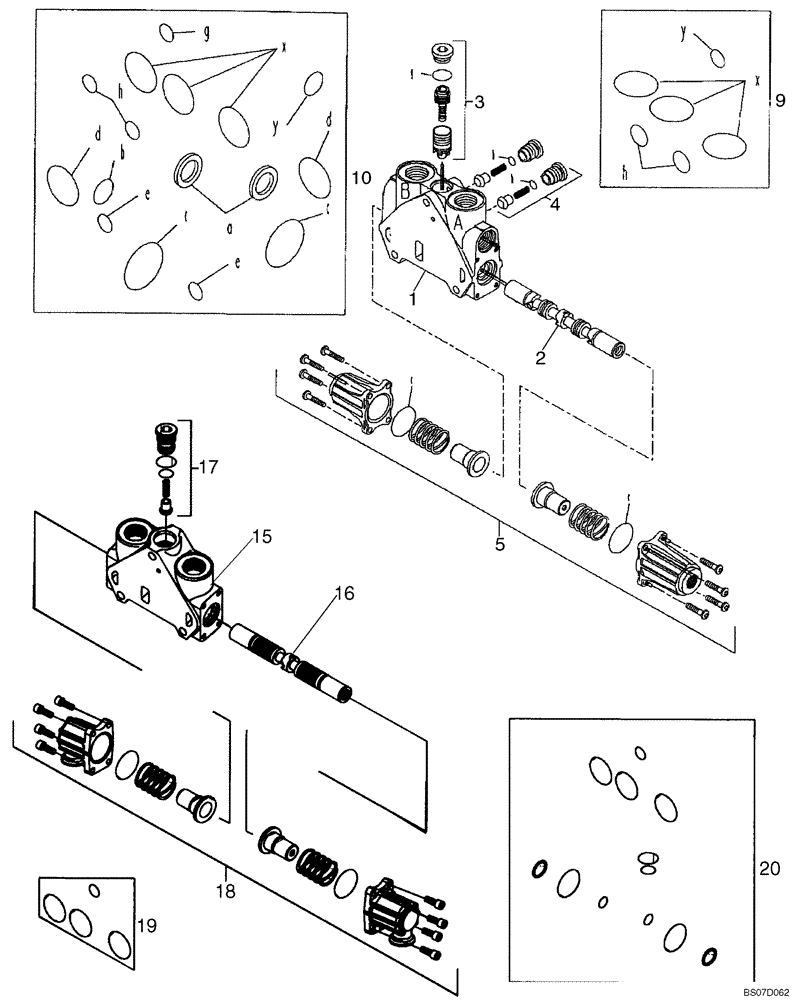

Запчасти Case 590SM (08-46) - VALVE SECTION - BACKHOE STABILIZER (WITH PILOT CONTROLS) (08) - HYDRAULICS

85826340

HYD VALVE SECTION

Stabilizer; Left-Hand and Right-Hand; Incl. Ref 1 - 10; If Used

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

85819378

KIT

Pressure Compensator; Component Parts Not Serviced Separately

1шт.

4

85811938

KIT,Check Valve

Component Parts Not Serviced Separately

2шт.

5

85826344

KIT,Operation

End Cap Kit; Component Parts Not Serviced Separately

1шт.

9

85819148

SEAL KIT,Between Control Valve Sections

Seal Kit Includes (6) O-Rings; Component Parts Not Serviced Separately

1шт.

10

85824281

SEAL KIT,Control Valve Section, Complete

Seal Kit Includes (13) O-Rings, (2) Lip Seals; Component Parts Not Serviced Separately

1шт.

87617618

HYD VALVE SECTION

Stabilizer; Left-Hand and Right-Hand; Without Flow Sharing to Provide Open Center Performance; Incl. Ref 15 - 20; If Used

2шт.

15

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

16

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

17

87617655

CHECK VALVE

Kit; Component Parts Not Serviced Separately

1шт.

18

85826344

KIT,Operation

End Cap; Component Parts Not Serviced Separately

1шт.

19

85825473

SEAL KIT

Includes (4) O-Rings; Component Parts Not Serviced Separately

1шт.

20

87617657

O-RING KIT

Includes (12) Seals; Component Parts Not Serviced Separately

1шт.
