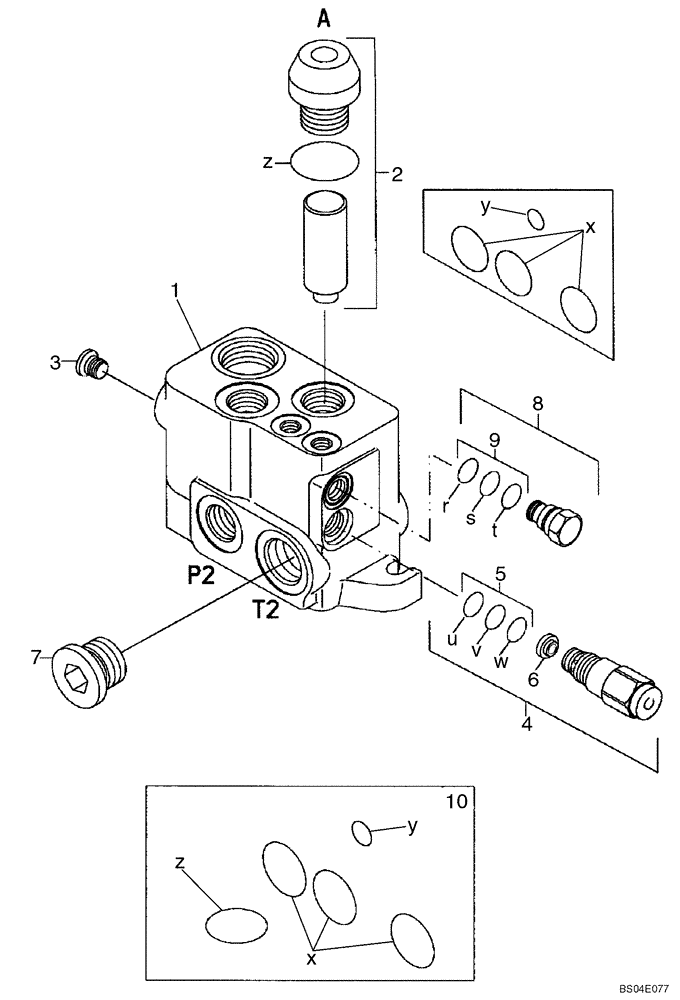

Запчасти Case 590SM (08-43A) - VALVE SECTION - INLET (WITH PILOT CONTROLS) (08) - HYDRAULICS

87447424

HYD VALVE SECTION

Inlet; Incl. Ref 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

Housing and Spool

1шт.

2

87447426

CONTROL VALVE

KIT, Closed Center Regulation; Component Parts Not Serviced Separately

1шт.

3

85811923

PLUG,9/16" UNF

1шт.

4

85820128

REGULATOR

Flow; Incl. Ref 5, 6

1шт.

5

85821235

SEAL KIT

Includes (2) O-Rings, (1) Thrust Ring

1шт.

6

85817669

FILTER

For Regulated Drain

1шт.

7

85811922

PLUG,1'5/16-UNF 2A

1шт.

8

87447464

PLUG

Lower LS Relief Port; Incl. Ref 9

1шт.

9

85821236

SEAL KIT

Relief Plug; Includes (2) O-Rings, (1) Thrust Ring

1шт.

10

85825477

SEAL KIT

Section Seal Kit, Includes 5 Seals

1шт.
