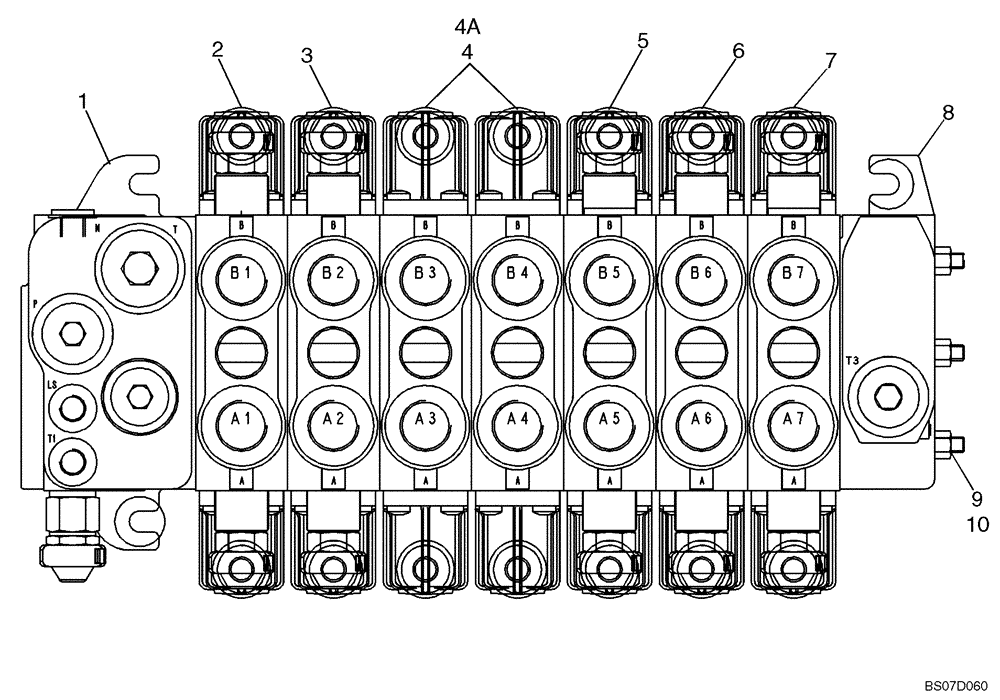

Запчасти Case 590SM (08-42) - VALVE ASSY - BACKHOE CONTROL, 7 SPOOL (W/O EXT DIPPER, W/ AUX HYDS, W/ PILOT CONTROLS) (08) - HYDRAULICS

87448996

CONTROL VALVE

Backhoe, 7 Spool; Rexroth No. 08 402 197; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 3, 4, 5 - 10; If Used

1шт.

87577353

CONTROL VALVE

Backhoe 7 Spool; Rexroth No. 08 403 276; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 3, 4A, 5 - 10; If Used

1шт.

1

87447424

HYD VALVE SECTION

Inlet Section; See Figure 08-43A

1шт.

2

87447466

HYD VALVE SECTION

Swing Section; See Figure 08-44

1шт.

3

87449036

HYD VALVE SECTION

Boom Section; See Figure 08-45

1шт.

4

85826340

HYD VALVE SECTION

Stabilizer Section; 87448996 Valve; See Figure 08-46; If Used

2шт.

4a

87617618

HYD VALVE SECTION

Stabilizer Section; Without Flow Sharing to Provide Open Center Performance; 87577353 Valve; See Figure 08-46; If Used

2шт.

5

87447468

HYD VALVE SECTION

Dipper Section; See Figure 08-47

1шт.

6

87449037

HYD VALVE SECTION

Bucket Section; See Figure 08-48

1шт.

7

85826342

HYD VALVE SECTION

Auxiliary Section; See Figure 08-50

1шт.

8

87447470

HYD VALVE SECTION

Outlet Section; See Figure 08-43B; Tie Bolt Included In Outlet Section Is For 8 Spool Valve

1шт.

9

87451933

BOLT AND NUT

Tie Bolt For 7 Spool Valve

3шт.

10

NSS

NOT SOLD SEPARAT

Nut

3шт.
