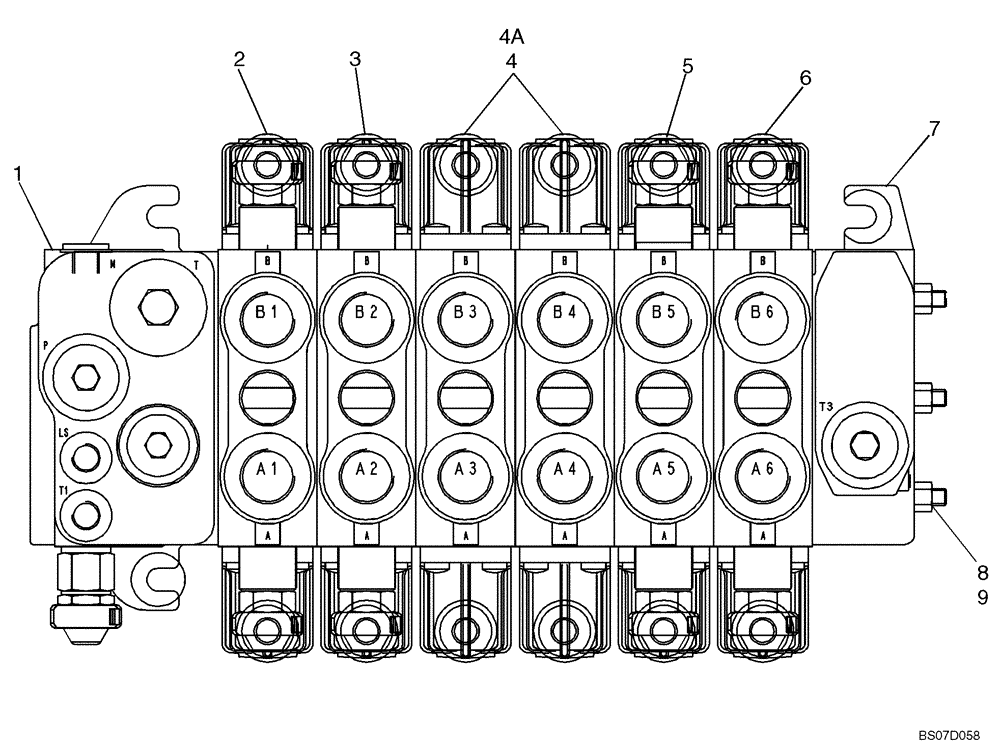

Запчасти Case 590SM (08-40) - VALVE ASSY - BACKHOE CONTROL, 6 SPOOL (W/O EXT DIPPER, W/ OR W/O AUX HYDS, W/ PILOT CONTROLS) (08) - HYDRAULICS

87448994

CONTROL VALVE

Backhoe, 6 Spool; Rexroth No. 08 402 195; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 3, 4, 5 - 9; If Used

1шт.

87577350

CONTROL VALVE

Backhoe 6 Spool; Rexroth No. 08 403 274; Check Data Plate On Valve For Part Number; Incl. Ref 1 - 3, 4A, 5 - 9; If Used

1шт.

1

87447424

HYD VALVE SECTION

Inlet Section; See Figure 08-43A

1шт.

2

87447466

HYD VALVE SECTION

Swing Section; See Figure 08-44

1шт.

3

87449036

HYD VALVE SECTION

Boom Section; See Figure 08-45

1шт.

4

85826340

HYD VALVE SECTION

Stabilizer Section; 87448994 Valve; See Figure 08-46; If Used

2шт.

4a

87617618

HYD VALVE SECTION

Stabilizer Section; Without Flow Sharing to Provide Open Center Performance; 87577350 Valve; See Figure 08-46; If Used

2шт.

5

87447468

HYD VALVE SECTION

Dipper Section; See Figure 08-47

1шт.

6

87449037

HYD VALVE SECTION

Bucket Section; See Figure 08-48

1шт.

7

87447470

HYD VALVE SECTION

Outlet Section; See Figure 08-43B; Includes Tie Bolt For 8 Spool Valve

1шт.

8

87447474

BOLT AND NUT

Tie Bolt For 6 Spool Valve

3шт.

9

NSS

NOT SOLD SEPARAT

Nut

3шт.
