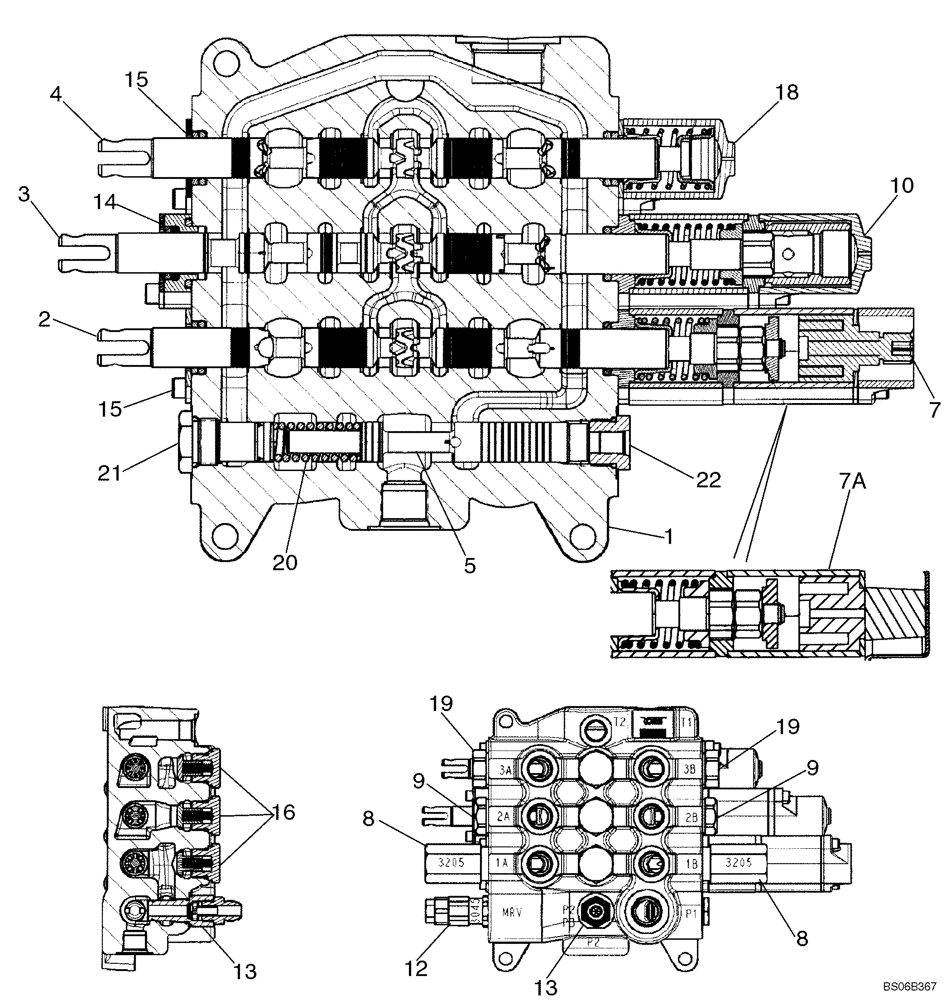

Запчасти Case 590SM (08-35A[01]) - VALVE ASSY - LOADER CONTROL, THREE SPOOL (WITH PILOT CONTROLS) (08) - HYDRAULICS

87555272

HYDRAULIC VALVE

Three Spool Loader Valve, Used On Models With Pilot Controls; Incl. Ref 1 - 5, 7 - 22; Replaces 87351503

1шт.

47907456

HYDRAULIC VALVE

Three Spool Loader Valve, Used On Models With Pilot Controls; Incl. Ref 1 - 5, 7A - 22; Replaces 87555272

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL, Bucket

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL, Lift

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL, Clam

1шт.

5

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

7

84124604

KIT

(Return to Dig) Magnetic Detent Kit, Bucket; Included In 87351503 or 87555272 Valve, Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87515957 Magnet, (2) 87310278 Screw; Replaces 87515955

1шт.

7a

84124604

KIT

(Return to Dig) Magnetic Detent Kit, Bucket; Included In 87351503 or 87555272 Valve, Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87515957 Magnet, (2) 87310278 Screw; Replaces 87515955

1шт.

8

87426232

VALVE PRESSURE RELIE

Relief Valve Assembly; Component Parts Not Serviced Separately

2шт.

9

81868381

CHECK VALVE,1-1/16" - 12

Load Check Valve, Anti-Void; Component Parts Not Serviced Separately; Includes Serviceable 87455580 Seal Kit

2шт.

10

87426227

DETENT

Manual Detent Assembly, Lift; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (2) 87310275 Screw, (4) 87310276 Ball Bearing

1шт.

12

87426717

VALVE PRESSURE RELIE

Main Relief Valve Assembly, Single Stage; Component Parts Not Serviced Separately; Includes Serviceable 87455551 Seal Kit

2шт.

13

87565949

VALVE, CHECK

1шт.

13

87426716

VALVE, CHECK

1шт.

14

87440815

PLATE

Lift Spool Plate and Seal Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87455538 O-Ring, (2) 87455534 Screw

1шт.

15

87440814

KIT

Bucket and Clam Spool Plate and Seal Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (2) 87455540 Screw

2шт.

16

87426238

VALVE, CHECK

Component Parts Not Serviced Separately; Includes Serviceable 87455975 O-Ring

3шт.

18

87426241

KIT

Clam Spool End Cap Assembly; Some Component Parts Not Serviced Separately; Serviceable Includes (1) 87454547 O-Ring, (1) 87454548 Seal, (1) 87444567 Spring, (2) 87455541 Screw

2шт.

19

83981068

STOP PLUG,Hex, 1/16 - 12 UN

Shut-Off Plug Assembly Includes Seal; Component Parts Not Serviced Separately

2шт.

20

87447838

SPRING

1шт.

21

87447837

PLUG

Special; Includes O-Ring; Component Parts Not Serviced Separately

1шт.

22

87447559

PLUG

Adapter Includes O-Ring; Component Parts Not Serviced Separately

1шт.
