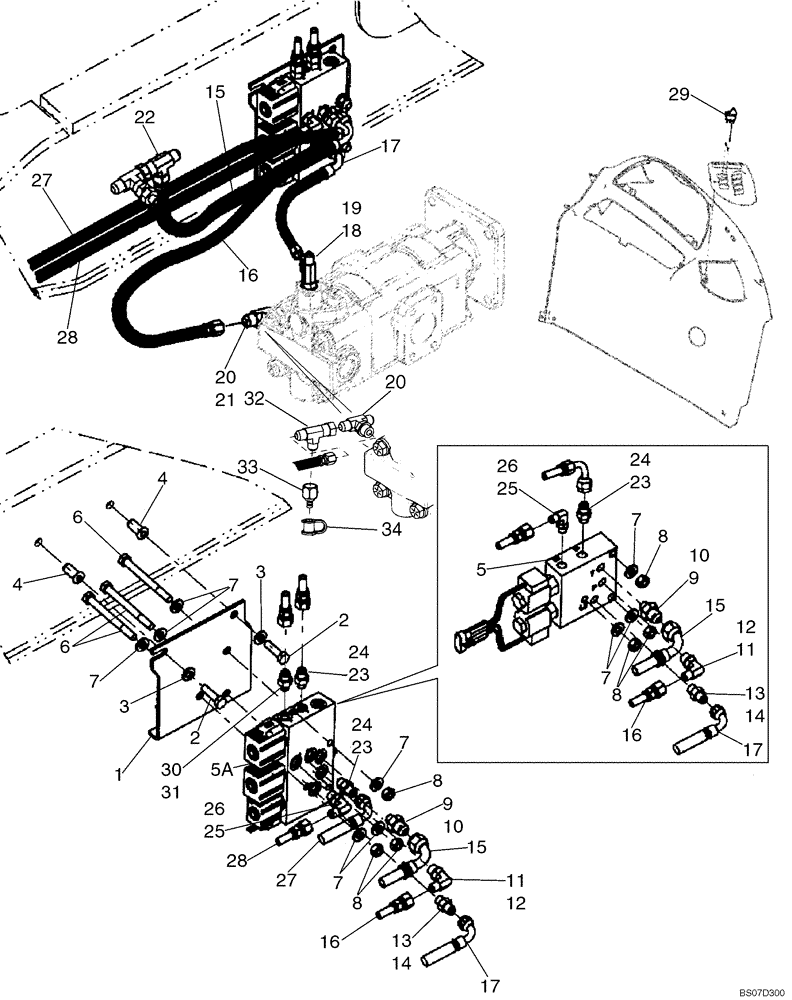

Запчасти Case 590SM (08-29) - HYDRAULICS - COUPLER, BACKHOE BUCKET (08) - HYDRAULICS

1

87437263

BRACKET

Coupler Valve Mounting

1шт.

2

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

4

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

M10

2шт.

5

87435909

SOLENOID VALVE

Coupler; Backhoe Bucket; See Figure 08-28

1шт.

5a

87435910

SOLENOID VALVE

Coupler; Models With Both Loader Tool and Backhoe Bucket Coupler; See Figure 08-31

1шт.

6

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

3шт.

7

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

6шт.

8

829-1410

NUT,M10 x 1.5, Cl 10.9

3шт.

9

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 10

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Incl. Ref 12

1шт.

12

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

13

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref 14

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

15

87434265

HYDRAULIC HOSE,3/8" ID x 500mm L, 6-1SN

500 mm (19-11/16 in); Coupler, Serial Range: Valve-Filter

1шт.

16

87452402

HYDRAULIC HOSE,3/8" ID x 830mm L, Flex-Pak 2 STF

830 mm (32-11/16 in); Pump to Coupler Pressure Port; Replaces 87434262

1шт.

17

87452403

HYDRAULIC HOSE,1/4" ID x 600mm L, Flex-Pak 2 STF

600 mm (23-5/8 in); Pump to Coupler Valve Load Sense Port; Replaces 87434261

1шт.

18

282428A1

VALVE PRESSURE RELIE

Tee, Check; Incl. Ref 19

1шт.

19

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

20

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 21; Replaces Standard Steering Fitting

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

Attaches to Tee At Back Of Filter

1шт.

23

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

Incl. Ref 24; One Used On Models With Backhoe Bucket Coupler Only; Two Used On Models With Both Loader Tool and Backhoe Bucket Coupler

1-2шт.

24

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

25

218-5335

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/2"-20, O-Ring

Incl. Ref 26

1шт.

26

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

27

87448526

HYDRAULIC HOSE,6.35mm ID x 3125mm L

3125 mm (123-1/32 in); used with straight fitting

1шт.

28

87448527

HYDRAULIC HOSE,6.35mm ID x 3100mm L

3100 mm (122-1/16 in); used with elbow fitting

1шт.

29

386789A2

SWITCH

Backhoe Bucket Hydraulic Coupler; For Switch Used With Loader Tool Quick Coupler, See Figure 08-26

1шт.

30

218-5056

HYD CONNECTOR,1/2"-20, 37 Degree x 1/2"-20, O-Ring

Incl. Ref 31

1шт.

31

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

1шт.

32

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

If Used

1шт.

33

192834A1

COUPLING

Diagnostic; If Used

1шт.

34

H434163

DUST CAP

If Used

1шт.
