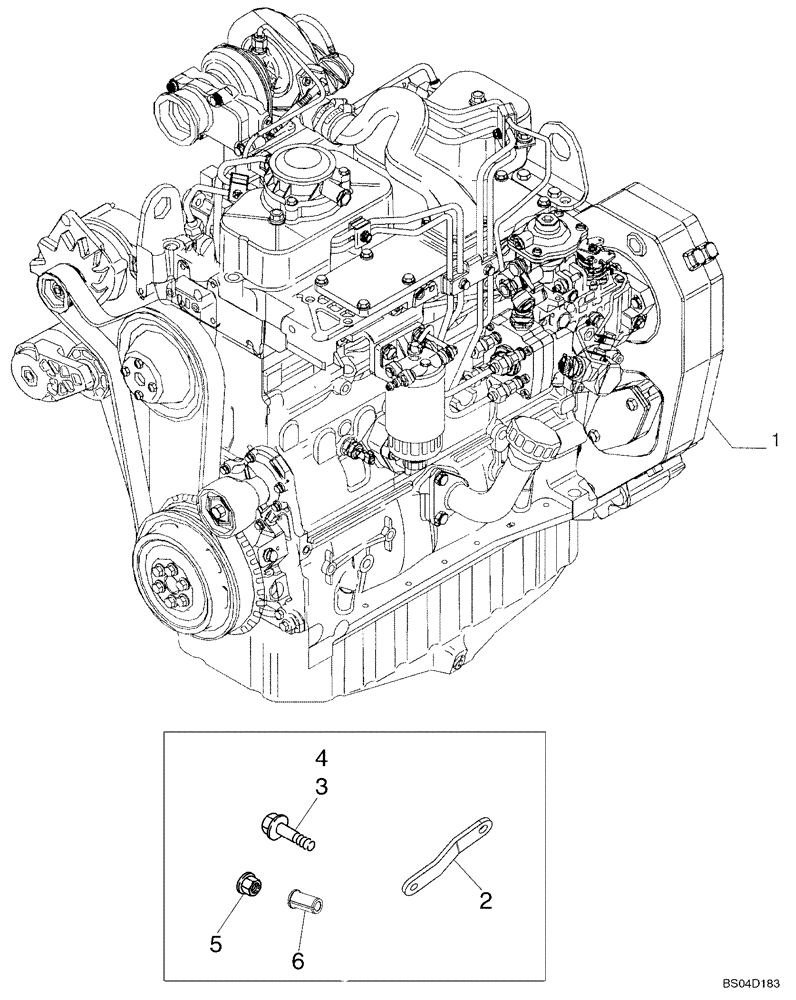

Запчасти Case 590SM (02-08) - ENGINE (02) - ENGINE

1

87399206

ENGINE

99hp Turbocharged Engine; Includes Parts On Figures 02-08 - 02-41, 03-04 - 03-11; Replaces 87405640, 87437204 Engines

1шт.

1

87437204ER

REMAN-REPLACEMENT EN

590SM SERIES 2, TIER 2, (2/04), Reman Repl. Eng. Fpr New P/N 87437204

1шт.

1

87437204EPAC

CORE-REPLACEMENT ENG

Return Part Number

1шт.

1

84284128R

REMAN-BASIC ENGINE

590SM Series 2, T2 Eng., Aspiration TA, Start Yr. 2/04

1шт.

1

84284128C

CORE-BASIC ENGINE

Return Part Number

1шт.

1

87437204R

REMAN-REPLACEMENT EN,74kW, 4 Cylinders, W/ Turbocharger

590SM Series 2, T2 Eng., Aspiration TA, Start Yr. 2/04

1шт.

1

87437204C

CORE-REPLACEMENT ENG

Return Part Number

1шт.

2

2852180

BRACKET

Alternator Mounting Strap; Used With 87405640 Engine; For Alternator Mounting Used With 87437204 Engine, See Figure 04-03

1шт.

3

4895291

SCREW,Hex Flg, M10 x 1.5 x 20

If Used

1шт.

4

4895538

FLANGE BOLT,Hex, M10 x 1.5 x 120mm

If used

1шт.

5

4895166

FLANGE NUT,M10, 1.50mm Pitch, Cl 10

Flange, M10; If Used

1шт.

6

2852181

SPACER,10.4mm ID x 22mm OD x 35mm L

If Used

1шт.
