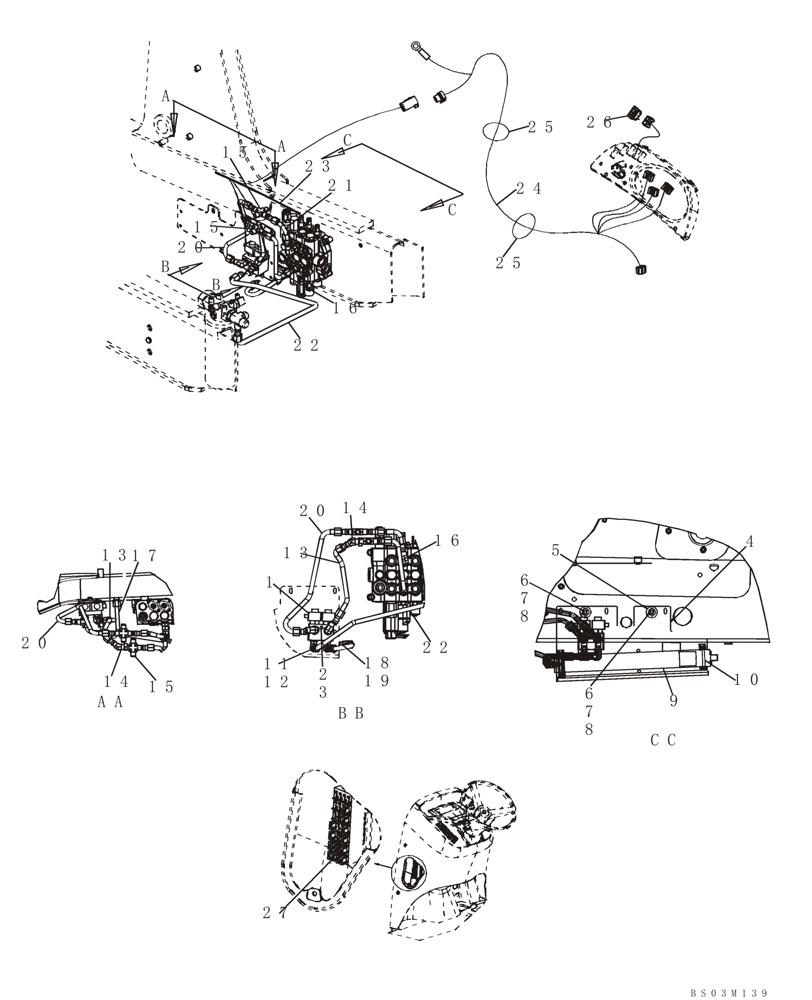

Запчасти Case 590SM (08-25) - HYDRAULICS - RIDE CONTROL (87433240 SOLENOID VALVE) (08) - HYDRAULICS

REF

INSTRUCTION

RIDE CONTROL HYDRAULIC AND ELECTRICAL CIRCUIT

1шт.

1

87433240

SOLENOID VALVE

Ride Control; Component Parts Not Available At Time Of Printing

1шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

1шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

1шт.

4

87421213

BRACKET

1шт.

5

87423067

SPACER,11mm ID x 40mm OD x 8mm L

2шт.

6

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

7

895-15010

WASHER,11mm ID x 24mm OD x 2mm Thk

2шт.

8

87417721

THREADED INSERT,M10 x 1.5-6H x 29 L

M10; Replaces 829-1410 Hex Nut Used On Some Models

2шт.

9

448284A1

ACCUMULATOR,275 Bar

Ride Control; Component Parts Not Serviced Separately; Used In Production, For Service, Order 234412A1 Accumulator

1шт.

9

234412A1

ACCUMULATOR,0.98L

Ride Control; See Figure 08-60

1шт.

10

A13240

CLAMP,2-5/8" ID

Two Piece; Includes Hardware

2шт.

11

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 12

4шт.

12

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

13

87421938

HYD TUBE,.625" OD

Solenoid Valve to Loader Control Valve Lower Lift Section Port

1шт.

14

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

1шт.

15

218-655

4 WAY CONNECTION,7/8"-14, 37 Degree

TEE

2шт.

16

REF

INSTRUCTION

TUBE, For Tube and Fitting At Loader Valve, See Figure 08-04

1шт.

17

87420696

HYD TUBE

Accumulator to Solenoid Valve

1шт.

18

218-5600

ELBOW,90 Degree, 7/8"-14, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 19

1шт.

19

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

20

87435923

TUBE,.625" OD

Solenoid Valve To Loader Control Valve Upper Lift Section Port

1шт.

21

REF

INSTRUCTION

TUBE, For Tube and Fitting At Loader Valve, See Figure 08-04

1шт.

22

87437265

TUBE,.625" OD

Solenoid Valve To Filter

1шт.

23

87537152

WIRE HARNESS

Chassis Options Harness; Includes (4) L71879 Diodes; Replaces 87436675

1шт.

24

87537151

WIRE HARNESS

Side Console Options Harness; Includes (1) L71879 Diode; Attaches to Side Console Harness and Main Chassis Options Harness; Replaces 87419256

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP Tie

2шт.

26

235002A1

ROCKER SWITCH

Ride Control

1шт.

27

121413A1

FUSE,15A, Mini, Blue

Blue

1шт.
