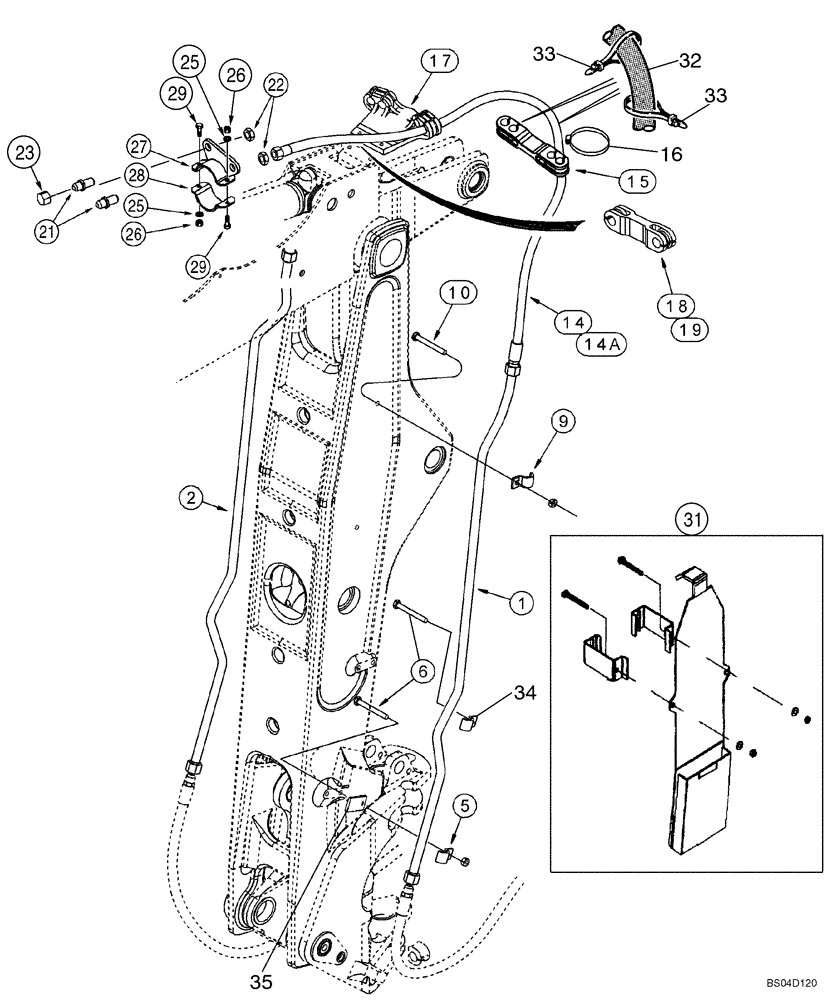

Запчасти Case 590SM (08-24) - HYDRAULICS - BACKHOE AUXILIARY (08) - HYDRAULICS

REF

INSTRUCTION

AT BOOM AND DIPPER

1шт.

1

280441A1

TUBE,25.4 mm OD, 1962, 243 mm Length

1шт.

2

278748A1

TUBE,25.4 mm OD, 1962, 243 mm Length

1шт.

5

242459A1

SHIN

Clamp

2шт.

6

814-12090

BOLT,Hex, M12 x 1.75 x 90mm, Cl 8.8

4шт.

9

242459A1

SHIN

Clamp

2шт.

10

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

14

87444633

HOSE ASSY.,19.05mm ID x 2815mm L

2815 mm (110-7/8 in); Models With Extendable Dipper; Replaces 243679A2 2665 mm (104-15/16 in) Long Hose Used On Some 590SM Models

2шт.

14a

317749A1

HOSE ASSY.

1475 mm (58-3/32 in); Models Without Extendable Dipper

2шт.

15

246158A1

CLAMP,27mm ID

Models With Extendable Dipper

1шт.

16

214-3156

HOSE CLAMP,2-3/4" - 3-5/8", HD Worm

Models With Extendable Dipper

4шт.

17

246151A1

SUPPORT

Models With Extendable Dipper

1шт.

18

103670A1

CLAMP,27mm ID

Rubber

1шт.

19

214-3132

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

2шт.

21

218-676

FITTING,Blkhd, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

2шт.

22

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

2шт.

23

218-335

CAP,37 Degree, 1 1/16"-12

2шт.

25

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

26

832-10410

NUT,M10 x 1.5, Cl 8

2шт.

27

314733A1

SPECIAL CLAMP

1шт.

28

314734A1

STRAP

1шт.

29

614-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8, Full Thd

2шт.

370916A1

KIT

Boom Guard; Incl. Ref 31 and Instructions

1шт.

31

317990A1

GUARD

Boom; Component Parts Not Serviced Separately

1шт.

32

87440695

SLEEVE

2391 mm (94-3/16 in)

2шт.

33

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

34

253038A1

BRACKET

CLAMP

2шт.

35

284928A1

BRACKET

Tube Support Plate

2шт.
