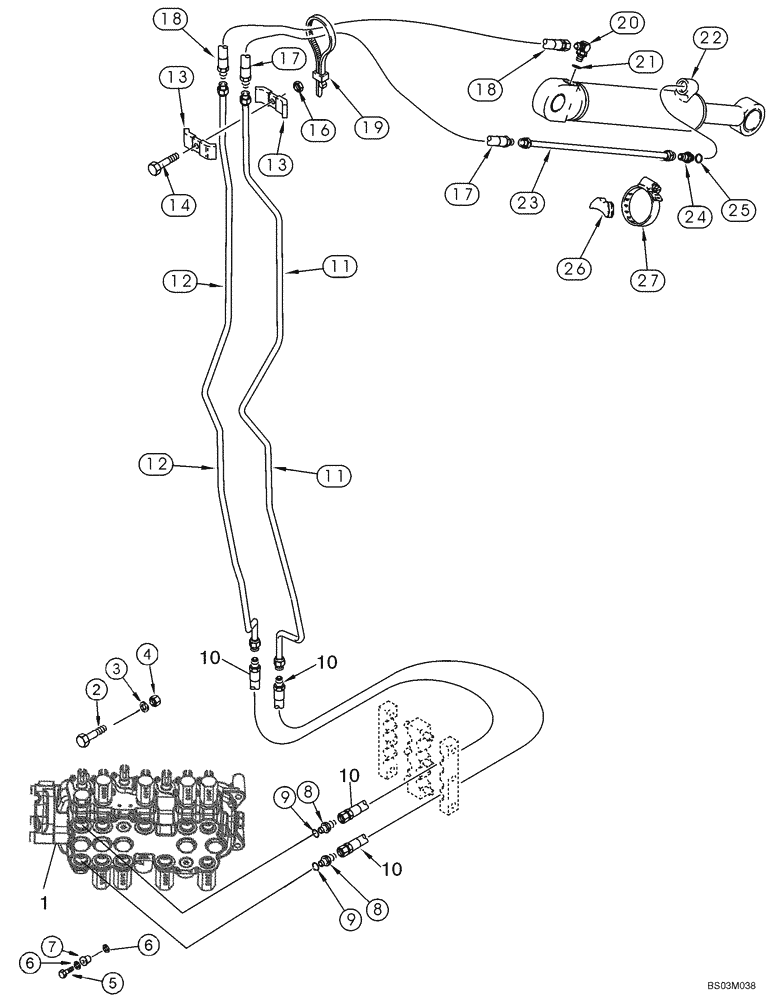

Запчасти Case 590SM (08-14) - HYDRAULICS - CYLINDER, BACKHOE EXTENDABLE DIPPER (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control; Backhoe Control Valve; For Correct Assembly and Components, See Figures 08-38, 08-39, 08-41, 08-43

1шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

Replaces 614-10040 M10 x 40 Bolt Used On Some Models

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

10

393363A1

HOSE ASSY.,15.88mm ID x 1210mm L

1210 mm (47-21/32 in)

2шт.

11

142951A1

HYD TUBE,19.05 mm OD, 1853, 52 mm Length

1шт.

12

142960A1

HYD TUBE,19.05 mm OD, 2110.9 mm Length

1шт.

13

D40236

CLAMP

2шт.

14

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

16

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

17

181960A1

HOSE,12.7mm ID x 938mm L

938 mm (36-15/16 in)

1шт.

18

181961A1

HOSE,12.7mm ID x 788mm L

788 mm (31-1/32 in)

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 21

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

1340853C2

CYLINDER,Double Acting, 44.4mm Rod, 1220mm Stroke

76 ID x 1220 mm strk; Extendable Dipper Cylinder; See Figure 08-70

1шт.

23

175817A1

TUBE,15.88 mm OD

1шт.

24

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Incl. Ref 25

1шт.

25

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

26

D38648

BLOCK

1шт.

27

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

1шт.
