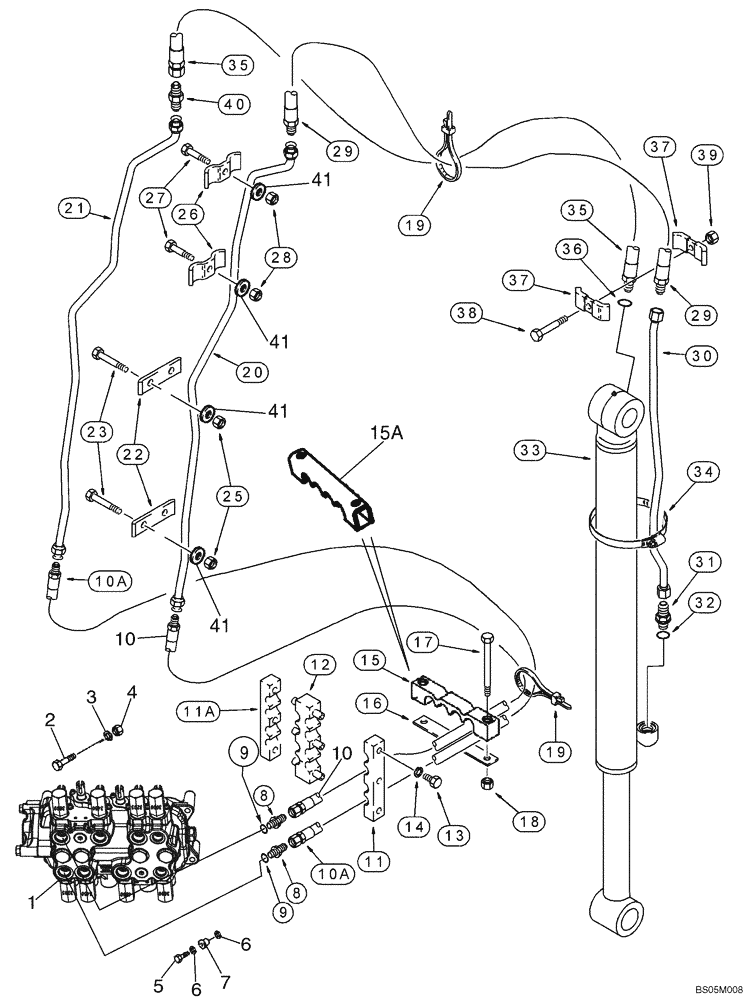

Запчасти Case 590SM (08-12) - HYDRAULICS - CYLINDER, BACKHOE BUCKET (MODELS WITHOUT EXTENDABLE DIPPER) (08) - HYDRAULICS

1

REF

INSTRUCTION

Valve Assy, Control; Backhoe Control Valve; For Correct Assembly and Components, See Figures 08-36 - 08-43

1шт.

2

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

2шт.

3

896-11010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

2шт.

4

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

5

614-10035

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

Replaces 614-10040 M10 x 40 Bolt Used On Some Models

1шт.

6

496-41041

WASHER,13/32" x 1 1/8" x .134"

2шт.

7

D52276

ISOLATOR,10.16mm ID x 28.07mm OD x mm L

1шт.

8

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 9

2шт.

9

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

10

393365A2

HOSE ASSY.,15.88mm ID x 1235mm L

1235 mm (48-5/8 in) Hose

1шт.

10a

393364A1

HOSE ASSY.,19.05mm ID x 1200mm L

1200 mm (47-1/4 in)

1шт.

11

179404A1

CLAMP

1шт.

11a

176268A1

CLAMP

1шт.

12

176266A1

CLAMP

1шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

6шт.

14

892-11008

LOCK WASHER,8mm ID

6шт.

15

372481A1

CLAMP

Cast; If Used

1шт.

15a

87338363

HOSE CLAMP

Fabricated; If Used

1шт.

16

132212A1

PLATE

1шт.

17

814-12110

BOLT,Hex, M12 x 1.75 x 110mm, Cl 8.8

2шт.

18

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

1шт.

20

176362A1

HYD TUBE,19.05 mm OD

1шт.

21

176366A1

HYD TUBE,25.4 mm OD

1шт.

22

182035A1

CLAMP

4шт.

23

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

8шт.

25

832-10412

NUT,M12 x 1.75, Cl 8

8шт.

26

221525A1

CLAMP,26mm ID

4шт.

27

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

4шт.

28

832-10412

NUT,M12 x 1.75, Cl 8

4шт.

29

144499A1

HOSE

1210 mm (47-5/8 in)

1шт.

30

396634A1

TUBE,19.05 mm OD

Models Without Backhoe Auxiliary Hydraulics

1шт.

30

314772A1

RIGID TUBE

Models with Backhoe Auxiliary Hydraulics

1шт.

31

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 32

1шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

33

296434A1

CYLINDER,Double Acting, 69.8mm Rod, 872mm Stroke

95 ID x 872 mm strk; Bucket Cylinder; See Figure 08-69

1шт.

33

296434A1R

REMAN-HYD CYLINDER

590SM Series2, w/Tier 2 Engine

1шт.

33

296434A1C

CORE-HYD CYLINDER

Return Number

1шт.

34

214-1472

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

1шт.

35

141656A1

HOSE

1185 mm (46-21/32 in); Incl. Ref 36

1шт.

36

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

Boss Seal

1шт.

37

D143846

CLAMP

2шт.

38

814-10055

BOLT,Hex, M10 x 1.5 x 55mm, Cl 8.8

1шт.

39

832-10410

NUT,M10 x 1.5, Cl 8

1шт.

40

218-745

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 1/16"-12, 37 Degree

1шт.

41

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

If Used

12шт.
