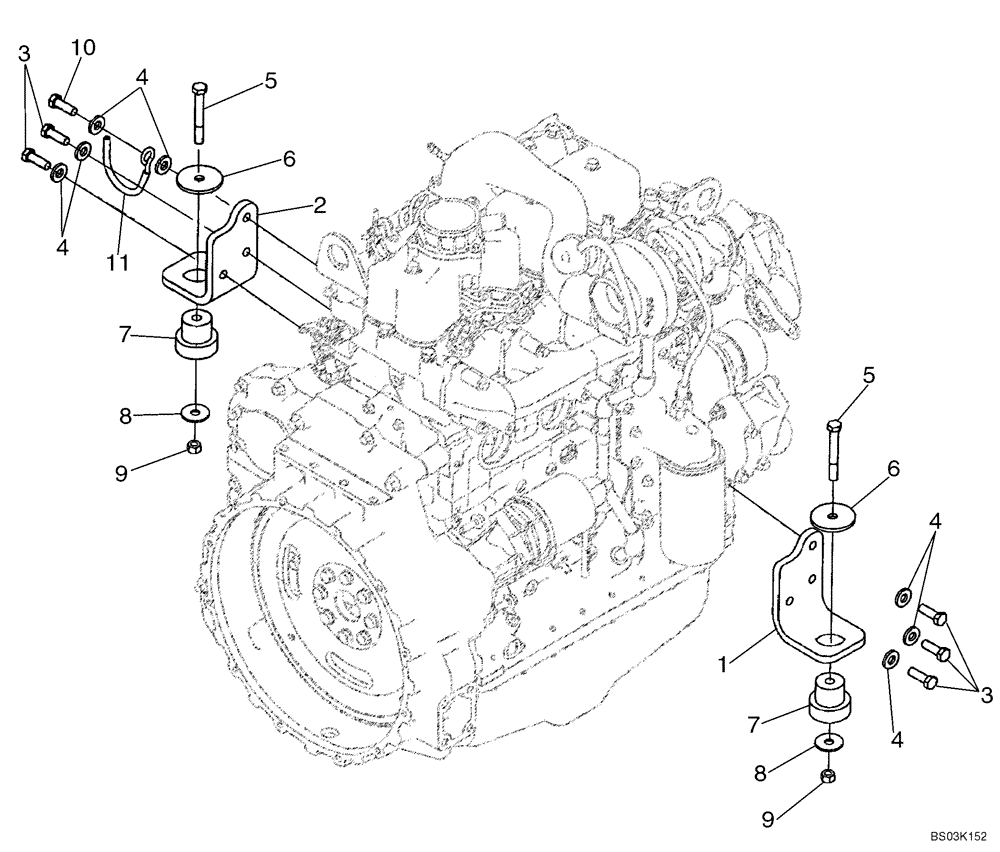

Запчасти Case 590SM (02-07) - ENGINE - MOUNTING (02) - ENGINE

87399206

ENGINE

99 hp Turbocharged Engine; Includes Parts On Figures 02-08 - 02-41, 03-4 - 03-11; Replaces 87405640, 87437204 Engines

1шт.

87437204ER

REMAN-REPLACEMENT EN

590SM Series 2, Tier 2, (2/04), Reman Repl. Eng. For New P/N 87437204

1шт.

87437204EPAC

CORE-REPLACEMENT ENG

Return Part Number

1шт.

84284128R

REMAN-BASIC ENGINE

590SM Series 2, T2 Eng., Aspiration TA, Start Yr. 2/04

1шт.

84284128C

CORE-BASIC ENGINE

Return Part Number

1шт.

1

87411319

ENGINE MOUNT

Right-Hand

1шт.

2

87411320

BRACKET

Left-Hand

1шт.

3

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

5шт.

4

896-15012

WASHER,13.5mm ID x 28mm OD x 4mm Thk

7шт.

5

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

6

85801585

SEALING WASHER,13mm ID x 65mm OD x 5mm Thk

2шт.

7

87416966

ISOLATOR

Insulator, Rubber Mount

2шт.

8

85802618

SEALING WASHER,13mm ID x 41mm OD x 3mm Thk

2шт.

9

832-10412

NUT,M12 x 1.75, Cl 8

2шт.

10

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

1шт.

11

87431799

SUPPORT

Hose

1шт.
