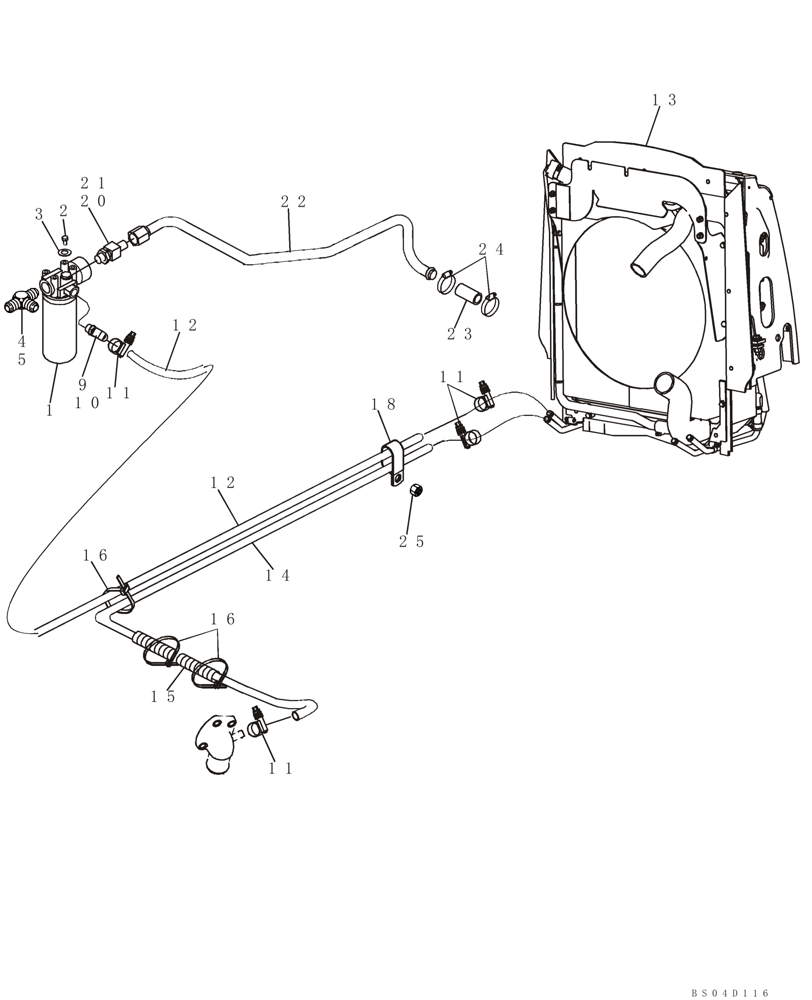

Запчасти Case 590SM (08-03) - HYDRAULICS - COOLER, RETURN LINES AND FILTER (08) - HYDRAULICS

1

87440046

FILTER ASSY

Hydraulic Oil; See Figure 08-61

1шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

3

895-11010

WASHER,11mm ID x 20mm OD x 2mm Thk

4шт.

4

218-5584

TEE,37 Degree, 1 5/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

Incl. Ref 5

1шт.

5

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

9

301104A1

FITTING,5/8" OD x 7/8" - 14 ORFS x 9/16" - 18 JIC

Special Tee W/Hose Barb, Incl. Ref 10

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

11

328186A1

HOSE CLAMP,400mm L

4шт.

12

87426965

HOSE,5/8" ID, 1785mm L

1785 mm (70-5/16 in)

1шт.

13

REF

INSTRUCTION

Hydraulic Oil Cooler; For Cooler and Attaching Parts, See Figure 06-10 - 06-11A

1шт.

14

87426966

HOSE,5/8" ID, 1860mm L

1860 mm (73-1/4 in), Return

1шт.

15

D132982

PADDLE,26.87mm ID x 400mm L

Hose Sleeve

2шт.

16

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP

4шт.

18

D39696

CLAMP,25.40mm - 13.49mm Bolt, CTD

Double P-Type

1шт.

20

218-5086

HYD CONNECTOR,1 5/16"-12, 37 Degree x 1 5/8"-12, O-Ring

Incl. Ref 21

1шт.

21

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

22

87308472

TUBE,25.40 mm OD

Return To Tank; Replaces 87421940; For Tube Used On Models With Comfort Steer (Fast Steer), See Figure 05-02B

1шт.

23

D38435

HOSE,1" ID x 1 1/2" OD 3.5" L

89 mm (3-5/8 in); Cut From S118383X; Return To Tank; For Attaching Brake Line Clamp, See Figure 07-04

1шт.

24

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

2шт.

25

829-1410

NUT,M10 x 1.5, Cl 10.9

1шт.
