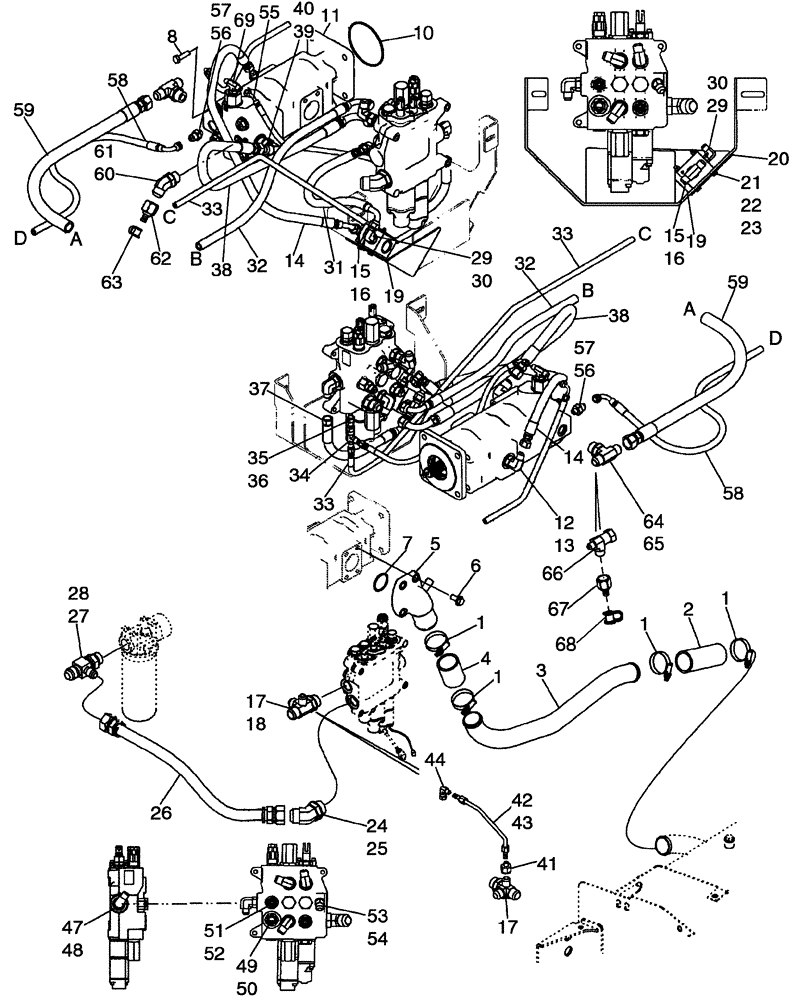

Запчасти Case 590SM (08-01A) - HYDRAULICS - PUMP, FILTER AND LOADER VALVE (WITH PILOT CONTROLS) (08) - HYDRAULICS

1

259044A1

CLAMP

4шт.

2

87306274

HOSE,50.80 mm ID x 152.4 mm

Suction, At Hydraulic Tank; Replaces 282496A1

1шт.

3

87435761

TUBE,2" OD

Suction

1шт.

4

87306307

HOSE,50.80 mm ID x 105 mm

Replaces 87446433

1шт.

5

87434257

FLANGE ASSY

Pump

1шт.

6

864-12030

HEX SOC SCREW,M12 x 30mm, Cl 8.8

3шт.

7

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

1шт.

8

514-832

BOLT,Hex, M12 x 1.25 x 35mm, Cl 8.8, Full Thd

Models Without Powershift Transmission

4шт.

8

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

Models with Powershift Transmission

4шт.

10

510828

O-RING,0.139" Thk x 4.984" ID, -250, Cl 5, 75 Duro

Models With Powershift Transmission

1шт.

11

87452274

HYDRAULIC PUMP

Equipment, Tandem; See Figure 08-33A; No Longer Available, Order 87327846 Pump

1шт.

11

87327846R

REMAN-HYD PUMP

Reman for New PN 87452274

1шт.

11

87327846C

CORE-HYDRAULIC PUMP

Return Number

1шт.

11

87327846

HYDRAULIC PUMP,20.8 CC

Equipment, Tandem; See Figure 08-33B

1шт.

11

87327846R

REMAN-HYD PUMP

590SM Series 2, w/Pilot Contols

1шт.

11

87327846C

CORE-HYDRAULIC PUMP

Return Number

1шт.

12

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

87443056

HOSE ASSY.

750 mm (29-17/32 in); Pump to Relief Valve

1шт.

15

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 16

1шт.

16

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

17

87436066

FITTING,1" 5/16 - 12 ORFS x 1" 5/16 - 12 ORB x 1 1/16" - 12 ORB x 7/8" - 14 ORB

4-Way Special Fitting; Incl. Ref 18

1шт.

18

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

19

87443522

VALVE PRESSURE RELIE

Includes 87443523 Manifold Block, 87443524 Relief Valve Cartridge; Component Parts of Cartridge Are Not Serviced Separately

1шт.

20

87444274

GUARD

1шт.

21

814-6070

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

2шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

23

829-1406

NUT,Hex, M6 x 1, Cl 10.9

2шт.

24

218-5140

45 ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Incl. Ref 25

1шт.

25

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

26

87452400

HYDRAULIC HOSE,1 5/16" - 12 JIC, 635mm L

635 mm (25 in), Loader, Serial Range: Valve-Filter

1шт.

27

218-5584

TEE,37 Degree, 1 5/16"-12, 1 5/16"-12 O-Ring Run, 1 1/16"-12

Incl. Ref 28

1шт.

28

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

29

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 30

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

87452401

HOSE ASSY.

420 mm (16-9/16 in); Tank Relief to Loader Valve

1шт.

32

87444769

HOSE ASSY.

1250 mm (49-7/32 in); Loader Valve to Backhoe Valve P2 Port

1шт.

33

87443053

HOSE ASSY.

1680 mm (66-5/32 in); To Backhoe Valve LS Port

1шт.

34

218-5222

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

1шт.

35

218-5352

HYD CONNECTOR,9/16"-18, 37 Degree x 7/16"-20, O-Ring

Incl. Ref 36

1шт.

36

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

1шт.

37

87442916

HOSE ASSY.

470 mm (18-1/2 in)

1шт.

38

87452399

HYDRAULIC HOSE,1 1/16" - 12 JIC, 90 Degree, 775mm L

775 mm (30-17/32 in), Small Pump Section; Replaces 87429895

1шт.

39

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 40

1шт.

40

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

41

218-765

REDUCER,37 Degree, 7/8"-14, Fem x 9/16"-18 Male

Models with Pilot Controls; If Used

1шт.

42

87437980

HYD TUBE

Two Spool Loader Valve; Models With Pilot Controls; If Used

1шт.

43

87437982

TUBE,.375" OD

Three Spool Loader Valve; Models With Pilot Controls; If Used

1шт.

44

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

If used

1шт.

47

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Incl. Ref 48; Models with Pilot Controls

1шт.

48

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

49

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 50

1шт.

50

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

51

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

Incl. Ref 52

1шт.

52

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

53

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 54

1шт.

54

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

55

87443054

HOSE ASSY.

515 mm (20-9/32 in); Shuttle Check Valve to Loader Valve

1шт.

56

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

Incl. Ref 57

1шт.

57

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

58

87444570

HOSE ASSY.

750 mm (29-17/32 in); Pressure Reducing Valve P Port

1шт.

59

87450823

HOSE ASSY.

1305 mm (51-3/8 in); Pump to Backhoe Valve P Port

1шт.

60

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Incl. Ref 61

1шт.

61

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

62

192834A1

COUPLING

Quick Disconnect; Diagnostic

1шт.

63

H434163

DUST CAP

1шт.

64

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref 65

1шт.

65

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

66

218-5488

TEE,37 Degree, 3/4"-16 x 1 1/16"-12, Fem Sw Run x 1 1/16"-12

If Used

1шт.

67

D137625

QUICK MALE COUPLING,1 - 1/16" - 12UNF - 2B ID

Diagnostic; If Used

1шт.

68

H434163

DUST CAP

If Used

1шт.

69

87443069

TEE

1шт.
